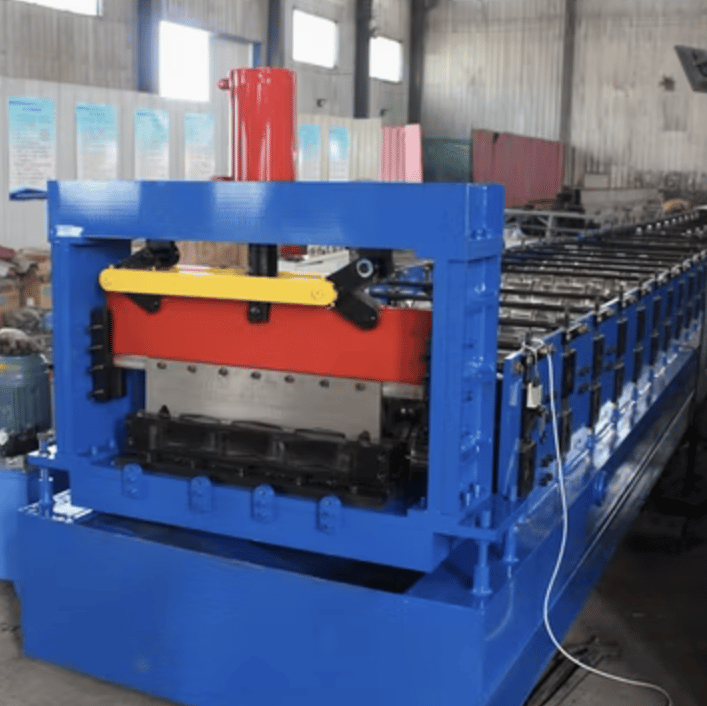

B Decking Roll Forming Machine in Argentina
- Condition
- New
- Supplier
- Roll Forming Machines Argentina
- Country
- Argentina
- Listing ID
- 8795
Request a Quote
To express an interest in this machine please submit the form below.
B decking roll forming machines are essential equipment in the construction industry, particularly for applications like roofing, flooring, and mezzanines. These machines produce B decking profiles, which are renowned for their structural integrity, durability, and lightweight characteristics. In Argentina, B decking profiles are widely used in commercial, industrial, and residential projects due to their compatibility with steel and concrete composite structures.
Machine Description
A B decking roll forming machine is a specialized industrial unit designed to transform metal coils into precise B decking profiles. These profiles typically feature ribs that enhance structural stability and allow for efficient integration with concrete. The machine operates through a series of rollers, punches, and hydraulic systems to ensure precision, speed, and quality.
Key Features:
- High Efficiency: Capable of producing large quantities of decking profiles in a short time.
- Precision Engineering: Ensures uniformity in profile dimensions for seamless installation.
- Durability: Built with robust materials to withstand heavy-duty operations.
- User-Friendly Interface: Equipped with advanced PLC systems for ease of operation.
Specifications
| Feature | Details |
|---|---|
| Roller Material | High-grade steel with hard chrome plating for durability and corrosion resistance. |
| Frame Structure | Welded steel frame with reinforced stability to handle high loads. |
| Coil Thickness | 0.8mm to 1.5mm (customizable based on user requirements). |
| Coil Width | 1200mm to 1500mm (varies based on profile design). |
| Profile Dimensions | Standard B decking dimensions or tailored as per project needs. |
| Motor Power | 15kW to 30kW, depending on production speed and requirements. |
| Hydraulic Cutting System | Precision cutting for exact profile lengths; uses hardened steel blades. |
| Speed | Up to 20 meters per minute (customizable for faster outputs). |
| Control System | Advanced PLC control with touchscreen HMI for ease of use. |
| Punching and Notching | Optional feature for creating precise holes or slots for easy installation. |
| Power Supply | Customizable to meet Argentina’s standard (typically 380V, 50Hz). |
| Safety Features | Includes emergency stop, safety guards, and overload protection. |
Applications in Argentina
- Commercial and Industrial Construction: B decking profiles provide the structural base for mezzanines, roofs, and concrete floors.
- High-Rise Buildings: Ideal for composite slab designs in skyscrapers and large residential buildings.
- Agricultural Facilities: Used for durable and weather-resistant roofing in barns and warehouses.
Question and Answer Section
Q1: What materials can the B decking roll forming machine process?
A1: The machine is designed to process galvanized steel, aluminum, and high-tensile steel, depending on the coil thickness and application.
Q2: Can the machine handle customized profile designs?
A2: Yes, the machine can be configured to produce customized B decking profiles according to specific project requirements.
Q3: What maintenance is required for the machine?
A3: Regular maintenance includes lubricating moving parts, inspecting rollers for wear, and ensuring the hydraulic system is free from leaks. Periodic checks of the PLC system are also recommended.
Q4: Is the machine compatible with Argentina's power supply standards?
A4: Absolutely. The machine can be customized to operate on Argentina’s standard power supply of 380V, 50Hz.
Q5: What is the production capacity of the machine?
A5: The production speed is up to 20 meters per minute, which can be adjusted based on the profile design and material used.
Q6: Are there any add-ons available?
A6: Yes, optional extras include stackers, remote PLC systems, coil handling equipment, and in-line punching systems.
Q7: How long does it take to install and set up the machine?
A7: Installation and setup typically take 3–5 days, depending on site conditions and machine complexity.
