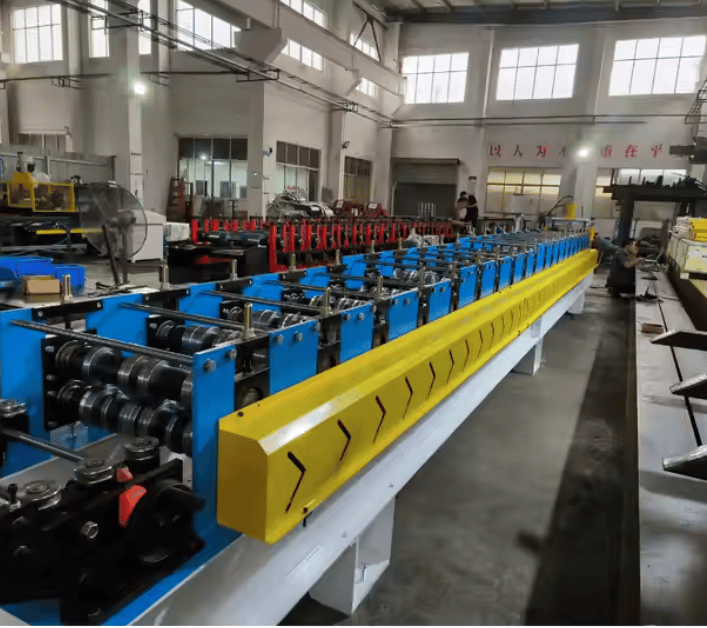

Balcony and Terrace Roll Forming Machine – United Arab Emirates

Balcony and Terrace Roll Forming Machine – United Arab Emirates

Product Overview

The Balcony and Terrace Roll Forming Machine from Machine Matcher is a precision-engineered solution tailored to meet the architectural and structural needs of modern balcony and terrace railing systems across the United Arab Emirates, including Dubai, Abu Dhabi, Sharjah, and surrounding regions. Built for efficiency, accuracy, and reliability, this machine is ideal for fabricating consistent, high-quality metal profiles used in balcony and terrace construction—whether for residential towers, commercial developments, or hospitality projects.

With a fully automated operation and customizable tooling, this roll forming machine is designed for UAE’s demanding climate and construction standards, providing durable and corrosion-resistant metal profiles with minimal labor and waste.

Machine Technical Specifications

• Machine Type: Balcony and Terrace Profile Roll Forming Machine
• Production Speed: Up to 15 meters per minute
• Material Thickness Range: 0.6 mm – 1.5 mm
• Material Width Range: 100 mm – 500 mm
• Material Types: Galvanized Steel, Pre-painted Steel, Aluminum, Stainless Steel
• Material Yield Strength: Up to 550 MPa (80 ksi)
• Roller Material: GCr15 (high-quality bearing steel)
• Roller Surface Treatment: Hard Chrome Coated
• Number of Forming Stations: 16–22 stations (based on profile)
• Roller Shaft Diameter: 60 mm
• Shaft Material: 45# Steel (tempered and precision ground)
• Main Drive Type: Chain Drive / Gearbox (based on customer preference)
• Power (UAE): 380V, 50Hz, 3-Phase
• Motor Power: 7.5 kW
• Cutting Method: Hydraulic Post-Cutting
• Blade Material: Cr12MoV (heat treated)
• Control Type: PLC (Programmable Logic Controller)
• Operating Mode: Fully Automatic with Touchscreen HMI
• De-coiling System: Manual or Hydraulic Decoiler (3–5 Ton capacity)
• Punching/Notching System (if included): Servo-Controlled Hydraulic Punching Unit
• Machine Frame: H-Beam Welded Frame with Precision Machining
• Thickness of Frame Steel: 18–20 mm
• Profile Shape: Custom balcony and terrace railing profiles
• Profile Width and Depth: Based on customer drawings
• Length Tolerance: ±1.0 mm
• Safety Features:
  • Protective Covers/Guards
  • Emergency Stop Button
  • Overload Protection System

Customization Options

• Profile shapes tailored to your architectural design
• Optional notching and punching units
• Choice of cutting method and power system
• Surface treatment upgrades for marine or coastal installations
• Length and profile width adjustments for high-rise or large-scale projects

Industries Served

This machine caters to a wide range of industries across the UAE:

• Construction & Real Estate Development Used for producing steel or aluminum balcony panels for residential and commercial buildings.
• Hospitality & Resort Development Custom terrace and balcony designs for hotels, resorts, and beachfront properties.
• Infrastructure & Urban Projects Public walkways, observation decks, and urban beautification projects with safety railing systems.
• Fabrication & Metalworks Steelwork contractors and metal service providers manufacturing custom profiles for railing systems.

Example Applications

• High-rise apartment balconies
• Hotel terrace guard rails
• Commercial building façade elements
• Walkway barriers in public parks or government projects
• Aluminum railing for villas and luxury homes

Questions & Answers

Q: Can the machine be customized for our profile?

A: Yes. All machines from Machine Matcher are custom-built to match your specific profile dimensions and requirements.

Q: What materials are typically used?

A: Galvanized steel (G90), aluminum (3003/5052), stainless steel (304/316), with thickness ranging from 0.6 mm to 1.5 mm and up to 80 ksi tensile strength.

Q: What is the lead time for manufacturing and shipping?

A: Production time is 30–60 days. Shipping time varies based on your location within the UAE.

Q: Is remote installation support available?

A: Yes, we offer both remote video guidance and on-site installation upon request.

Location & Delivery

All machines from Machine Matcher are brand-new and custom-built. We deliver directly to any location in the United Arab Emirates, including Dubai, Abu Dhabi, Sharjah, and surrounding regions. Each system is designed to meet your exact production, profile, and material requirements.

Starting Price

Prices start from: USD 48,000 – USD

Note: Final pricing depends on customization level, optional systems (like punching units), and profile complexity.

What Affects the Final Price?

• Profile design and dimensions
• Automation level (manual vs. automatic decoiling or punching)
• Material handling requirements
• Additional tooling or station upgrades
• Shipping preferences and destination port

Unique Selling Propositions (USPs)

• Tailored Engineering – Every machine is built to your specifications, ensuring a perfect match with your project needs.
• Expert Support – UAE-based clients benefit from remote and optional on-site support from seasoned engineers.
• High-Speed, Low Waste Production – Maximize output and minimize material loss with efficient design.
• Durability in Harsh Conditions – Built to perform in the Middle East’s tough environmental conditions.
• One-Year Warranty – All machines include a 12-month warranty period with comprehensive maintenance support.

How to Get a Quote

If you have profile drawings, material specs, or project details, send all documentation to:

📧 [email protected]

Our team will provide a tailored quotation and lead time estimate based on your unique needs.

All machines described are exclusively supplied by Machine Matcher. We are your trusted partner for high-performance roll forming solutions in the UAE and beyond.
