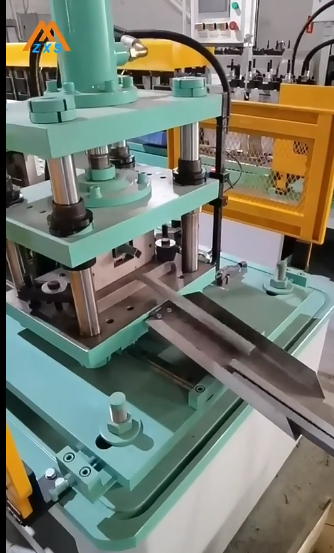

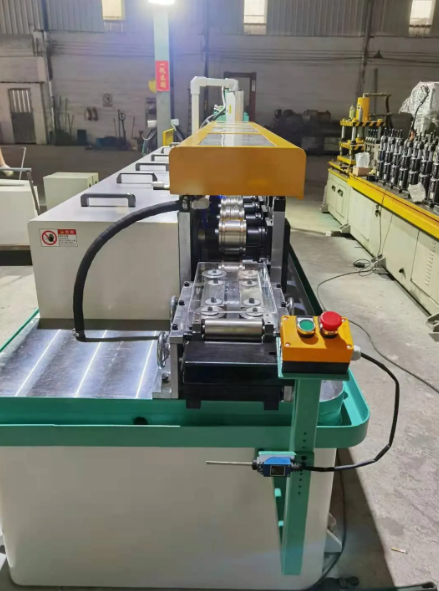

Ball Bearing Roll Forming Machine Drawer Telescopic Channel in Guangdong, China

Request a Quote

To express an interest in this machine please submit the form below.

Independent archway model	Taiwan Basis System
Frame	14mm steel plate welding structure, 40mm panel, overall structure.
Roller seat	The main side plate is an integral structure, with a thickness of 40mm and material of A3 plate.
Spindle	40Cr round steel, diameter of Φ 52mm, high frequency surface treatment HRC55 ~ 57 °
Main bearings	One set of 6208 tapered bearing (Harbin Bearing No.1 Factory).
Main engine power	"simple drive 180st-m27020hb" servo motor.
Speed regulation mode	Frequency converter is used for speed regulation.
Electrical part	The electrical part adopts full numerical control operation, equipped with 7 × 10 touch screen (Taiwan weiluntong brand), and servo motor controls the product length.
Cost	1 - 1 setsUS$168,000.00>= 2 setsUS$140,000.00
Forming speed	10-15 M / min
