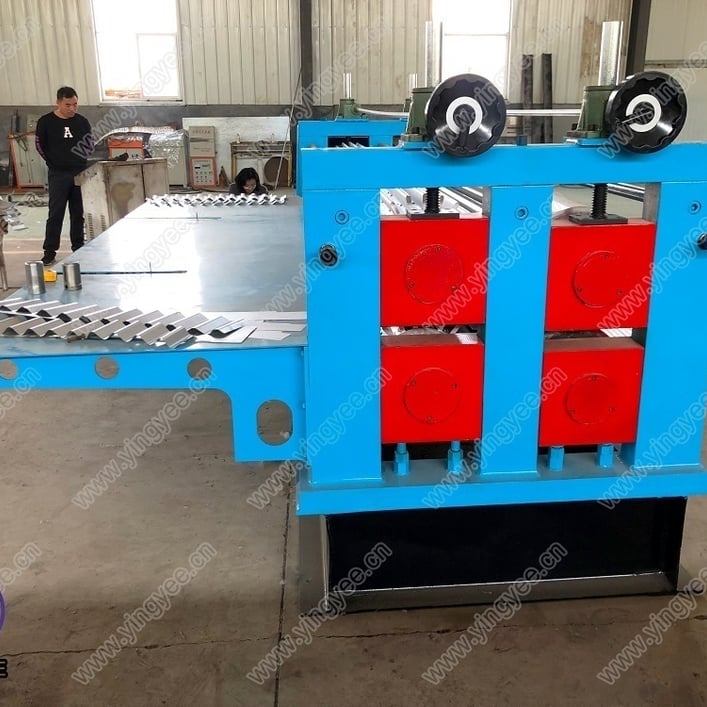

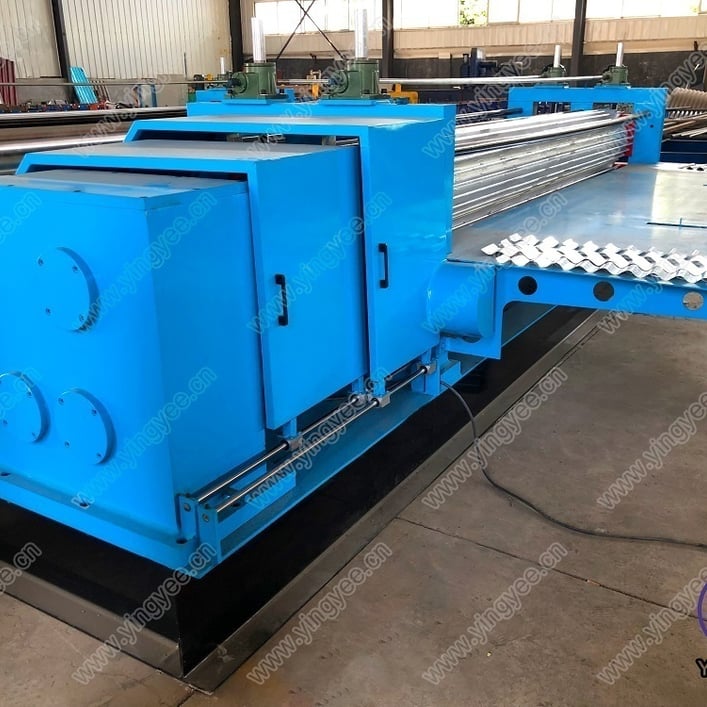

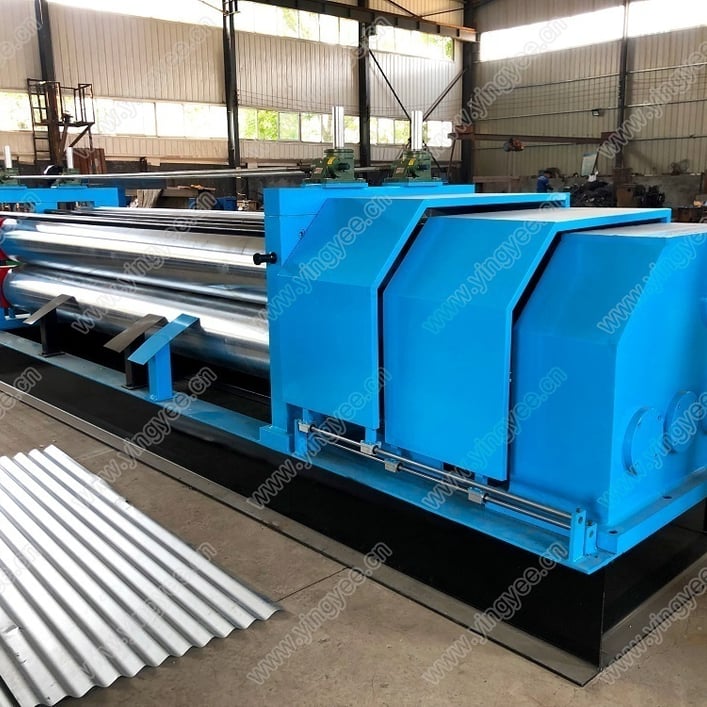

Barrel Corrugation Roof Sheet Roll Forming Machine in China
Galvanized Transverse Thin Barrel Corrugation Roof sheet Machine
Galvanized Transverse Corrugated Barrel Corrugation Roof sheet Machine is designed for thin plates with a thickness of 0.4mm, which is fast and efficient.
machine technical parameter:
| 1.machine type | Barrel corrugating type |
| 2.material | steel/Aluminum |
| 3.working speed | 9-12piece/min |
| 4.sheet thickness | 0.13-0.45mm |
| 5.pinch | 75mm |
| 6.guider for sheet input | welded steel structure with stopper for setting width |
| 7.corrugating roll | barrel length 4500 mm |
| 8.pinch adjust roll | barrel length 4500 mm |
| 9.screw | adjusted by manual |
| 10.guider for output products | welded steel plate |
| 11.Up&down device for corrugating and pitch adjusting rolls |
