Batten / Top Hat Roll Forming Machine | MNM, Binh Duong, Vietnam

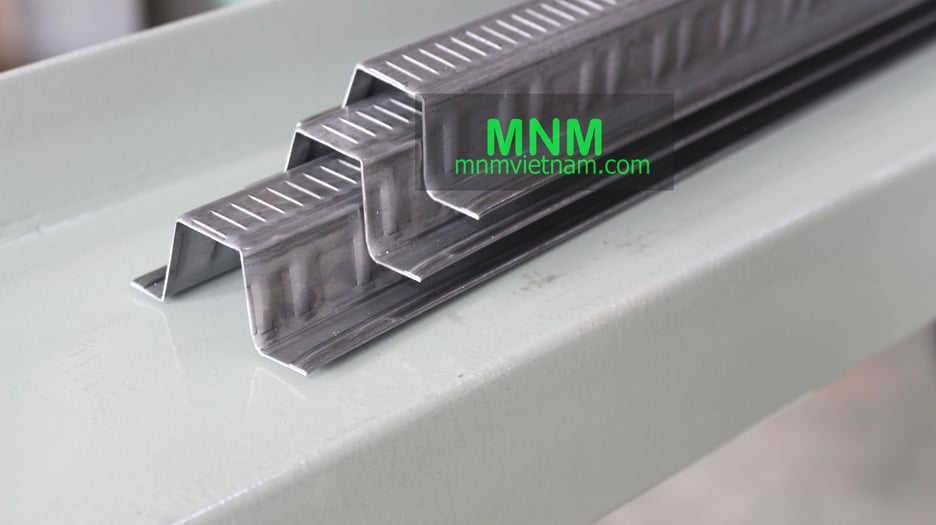

MNM's Batten Roll Forming Machine makes top hat battens (called reng in Vietnam), the light steel sections that carry roof sheets or tiles and ceiling boards.
It runs at up to 60 m/min on 10 to 18 stations.
Technical Specifications
- Total power: 3.7–7.5 kW
- Weight: 3.5–5.5 t
- Rolling speed: 20–60 m/min
- Forming stations: 10–18
- Shaft diameter: Ø55–60 mm
Applications
- Roof battens for tiles and metal sheets
- Ceiling battens
- Light steel roof systems
Commercial Details
- Brand: MNM
- Manufacturer: MNM Industrial Mechanical Limited Company
- Place of origin: Thuan An City, Binh Duong, Vietnam
Frequently Asked Questions
- What is a top hat batten? A hat-shaped light steel section fixed across rafters or trusses.
- How fast is it? 20–60 m/min.
- What should I send for a quotation? Your batten drawing, material and thickness, and output target.
