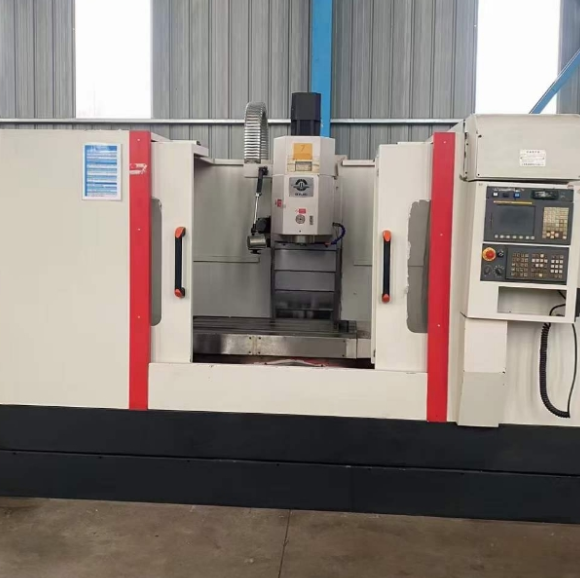

Byjc Vmc-1300 CNC Milling Center Machine

BYJC VMC-1300 CNC Milling Center Machine: Full Product Description

The BYJC VMC-1300 CNC Milling Center Machine is a powerful and highly versatile horizontal milling machine designed for precision milling tasks in demanding industrial environments. Engineered with robust construction and cutting-edge CNC technology, this machine is suitable for a wide range of metalworking operations and can handle materials such as steel, aluminum, plastics, and composites with exceptional accuracy and repeatability.

With its horizontal spindle orientation, the VMC-1300 offers unmatched stability and efficient material removal for medium to large-scale machining projects. Whether you are in aerospace, automotive, heavy machinery, or general manufacturing, this machine provides the performance and flexibility needed for high-precision, high-volume production.

Core Features and Technical Overview

Orientation: Horizontal Spindle Setup

The VMC-1300 is classified as a horizontal CNC milling machine, meaning its spindle is mounted horizontally, as opposed to vertical configurations. This orientation makes it ideal for:

• Face milling
• Slab milling
• Slotting
• Side milling
• Profile milling

The horizontal orientation allows the cutter to make contact with a larger surface area of the workpiece in a single pass, making it extremely efficient at material removal.

Machine Construction

The machine is built to withstand heavy-duty applications, and its key structural components are engineered for strength, rigidity, and precision.

• Base & Column: The cast-iron base and column form the backbone of the VMC-1300, ensuring stability and dampening vibrations during operation.
• Saddle & Knee: These parts support the movement of the worktable and enable precise control in multiple axes.
• Overarm & Spindle Housing: The overarm hosts the spindle and allows Y-axis movement, ensuring optimal tool positioning.

This structural layout makes the machine suitable for both light and heavy milling tasks, regardless of complexity.

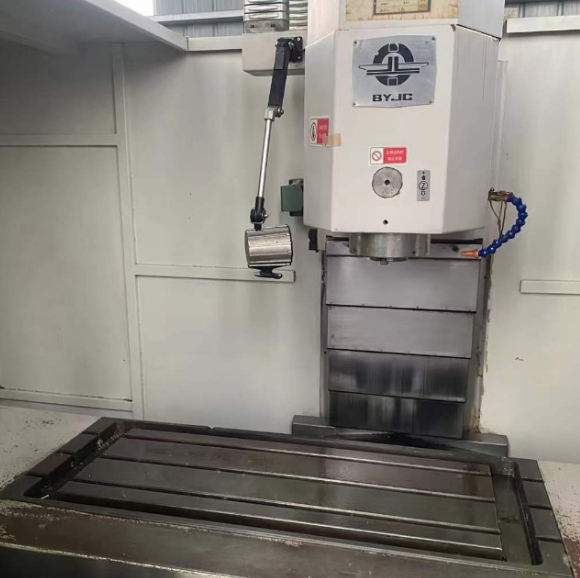

Spindle Configuration

The spindle is mounted on the overarm and aligned horizontally. This design supports various tool types such as:

• End mills
• Face mills
• Slot drills

The spindle offers:

• Precision cutting
• High torque and RPM performance
• Reliable clamping systems for secure tool holding

It’s well-suited for automated tool changes and works seamlessly with CNC programs to deliver consistent quality across multiple operations.

Worktable Design

The worktable on the VMC-1300 is:

• Rectangular in shape
• Capable of manual or powered movement along the X-axis
• Fitted with T-slots for clamping and fixturing

With ample table space and robust support, it accommodates large workpieces and can handle complex fixtures for batch production. The table can be paired with rotary tables or indexers for multi-axis machining.

Advanced Cutting Operations

The VMC-1300 supports a broad spectrum of operations:

• Flat surface milling
• Contouring
• Grooving and slotting
• Angular and compound angle milling
• Milling of irregular surfaces

Thanks to the horizontal spindle orientation and rigid construction, these operations are performed with high efficiency and minimum tool deflection, making it ideal for high-volume and precision-dependent applications.

Versatility and Materials

This machine is capable of cutting a wide range of materials, including:

• Mild steel
• Stainless steel
• Aluminum
• Brass and copper
• Plastics and composite materials

Its versatility makes it an essential machine in:

• Aerospace component production
• Automotive part fabrication
• Construction machinery manufacturing
• General metalworking shops

CNC System and Automation

The BYJC VMC-1300 is fully equipped with a modern CNC control system, allowing for:

• Fully automated operation
• Consistent part-to-part accuracy
• Custom programming and repeatable tool paths
• Integration with CAM software

The CNC feature enables operators to produce intricate parts with minimal manual intervention, resulting in faster cycle times and reduced human error.

Applications

The VMC-1300 is widely used across multiple industries and is suitable for operations including:

• Die and mold machining
• Part prototyping
• Production machining of castings and forgings
• Milling of large and complex mechanical parts

When combined with optional accessories, it can also perform:

• 4-axis machining
• Rotary indexing
• High-speed drilling and tapping

Machine Delivery

The BYJC VMC-1300 is currently located in China. We offer flexible delivery options:

• By Air: Estimated delivery time of 7–10 days
• By Sea: Estimated delivery time of 30–45 days (varies by destination)

All machines are professionally packed and secured to ensure safe transport.

Question and Answer Section

What is the main difference between a horizontal and vertical milling machine?

The primary difference is spindle orientation. In horizontal milling machines like the VMC-1300, the spindle is mounted horizontally. This makes it ideal for heavy material removal and machining large surfaces. Vertical machines have a vertically oriented spindle and are typically used for smaller, detailed work.

What materials can the VMC-1300 CNC Milling Machine handle?

It is designed to work with a broad range of materials, including ferrous and non-ferrous metals, plastics, and composite materials. This makes it suitable for everything from light prototypes to full-scale production of industrial components.

Can I perform 4-axis machining with this machine?

Yes, the VMC-1300 can be equipped with a rotary table or indexing head to perform 4-axis operations. This allows for more complex part geometry and multi-face machining in one setup.

Is the machine suitable for high-precision applications?

Absolutely. With a robust CNC system and precision-built components, the VMC-1300 is capable of producing tight tolerances on complex parts.

How difficult is it to program the machine?

The CNC control system is designed to be user-friendly and is compatible with standard G-code as well as common CAM software. Operators with basic CNC knowledge can easily program and operate the machine.

What accessories are available for the VMC-1300?

Optional accessories include:

• Rotary tables
• Tool changers
• Chip conveyors
• Coolant systems
• Touch probes and tool setters

These accessories enhance the machine’s versatility and make it more efficient for large-batch production.

What kind of support do you offer after the purchase?

We offer:

• Machine inspection prior to shipping
• Technical documentation
• Assistance with installation and setup
• Sourcing of spare parts
• Ongoing support via phone and email

We also help locate technicians in your region for maintenance and repairs if required.

Why Choose the VMC-1300 from Machine Matcher?

At Machine Matcher, we connect global buyers with high-quality metalworking machinery. Our network spans over 170 countries, and we specialize in sourcing hard-to-find machines that meet specific project requirements.

When you purchase the BYJC VMC-1300 CNC Milling Center Machine from us, you’re not just getting a machine—you’re getting expert support, global logistics solutions, and access to a trusted machinery marketplace.

If you're looking for a specific machine or need help choosing the right equipment for your workshop, get in touch. We'll use our worldwide network to find the perfect match for your needs.
