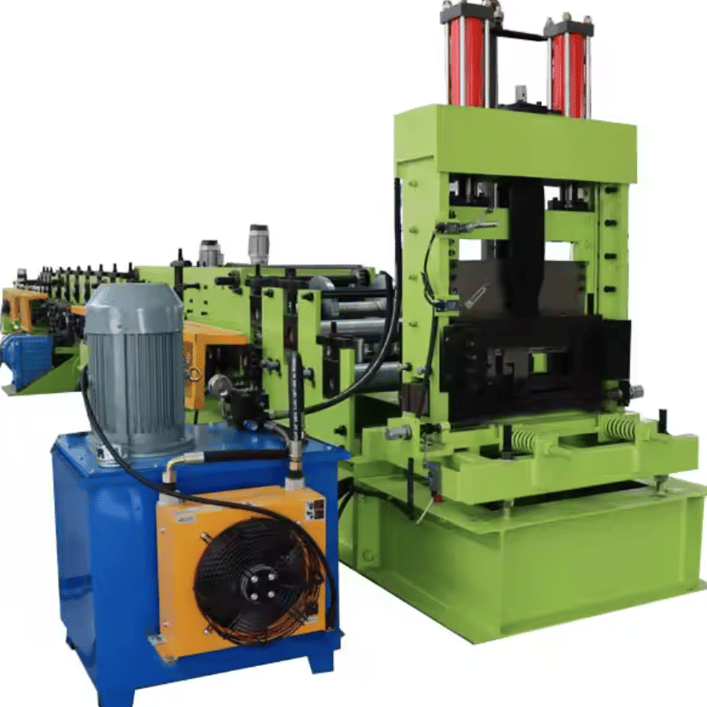

C Bracing Section Roll Forming Machine – UAE

•
•
•

C Bracing Section Roll Forming Machine – UAE Delivery & Customization

The C Bracing Section Roll Forming Machine is a precision-engineered solution for fabricating high-strength steel C-bracing profiles, widely used in structural support systems across various industries in the UAE. Designed to accommodate heavy-duty production requirements, this roll forming machine delivers consistent, high-speed output with minimal waste and maximum efficiency. It is built to handle a wide range of steel materials with high yield strength, ensuring durability, accuracy, and performance under industrial-scale workloads.

Whether you're operating in construction, steel fabrication, utility infrastructure, or warehouse development, this machine is a dependable choice for producing C-shaped bracing sections essential to structural reinforcement systems.

Industries Served

This machine is ideal for the following industries:

• Construction & Steel Structure Fabrication: Used in manufacturing structural bracing members for warehouses, buildings, prefabricated steel structures, and industrial sheds.

• Electrical & Utility Infrastructure: Supports cable trays, solar panel framing, and pole bracing.

• Warehouse Racking & Storage Systems: Produces C-bracing for stability and load distribution in racking systems.

• Mechanical & HVAC: Integrated into ducting and support frames in heavy-duty HVAC applications.

Examples of Use:

• Reinforcing steel-framed buildings in Dubai and Abu Dhabi.

• Creating seismic and wind bracing components for prefabricated structures in Sharjah.

• Forming frames and reinforcements for large solar panel fields in utility-scale energy projects across the UAE.

Machine Technical Specifications

• Machine Type: C Bracing Section Roll Forming Machine

• Production Speed: 12–25 meters per minute (depending on profile complexity and material)

• Material Thickness Range: 1.5 mm to 3.0 mm

• Material Width Range: 100 mm to 400 mm

• Material Types: Galvanized steel, mild steel, high-tensile steel

• Material Yield Strength: Up to 550 MPa (80 ksi)

• Roller Material: GCr15 high-grade steel (heat-treated and precision-ground)

• Roller Surface Treatment: Hard chrome-plated for anti-wear and extended life

• Number of Forming Stations: 14–20 stations (customizable based on profile)

• Roller Shaft Diameter: 70 mm

• Shaft Material: 45# steel, tempered and precision-machined

• Main Drive Type: Gearbox drive with chain or direct coupling

• Power (UAE Specific): 380V / 50Hz / 3 Phase (customizable)

• Motor Power: 11–15 kW (depending on profile width and thickness)

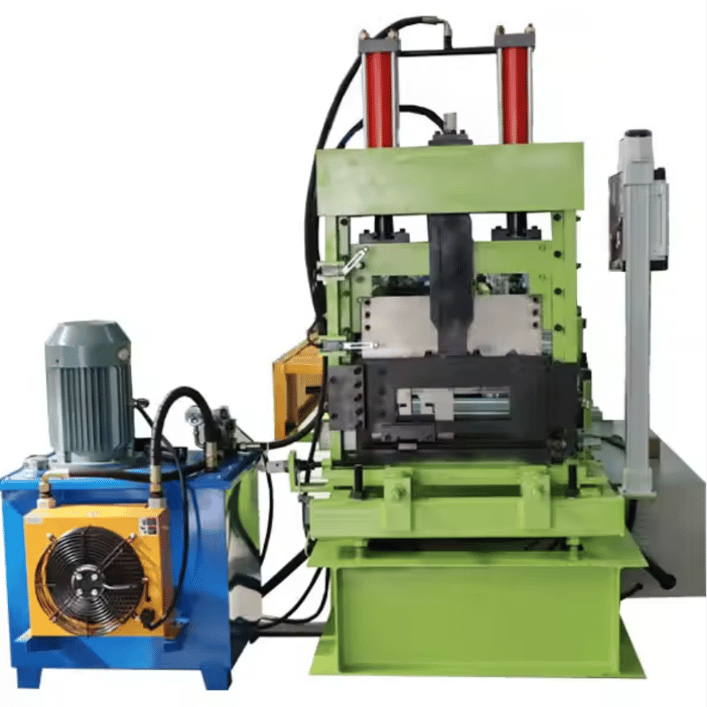

• Cutting Method: Hydraulic post-cut system

• Blade Material: Cr12MoV, heat-treated for hardness and precision cutting

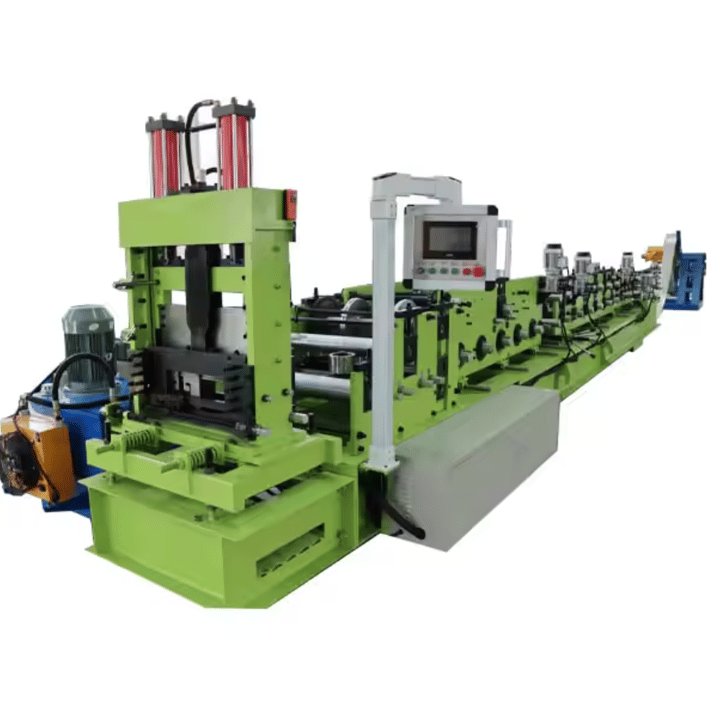

• Control Type: PLC with HMI touchscreen interface

• Operating Mode: Fully automatic with manual override

• De-coiling System: Manual or hydraulic de-coiler (3–5 tons capacity)

• Punching/Notching System (if included): Servo-driven or hydraulic punching station with customizable punch dies

• Machine Frame: Welded steel base, stress-relieved

• Thickness of Frame Steel: 18–25 mm

• Profile Shape: C Bracing Section

• Profile Width and Depth: Custom as per client drawing (typically 50–100 mm depth)

• Length Tolerance: ±1.0 mm

• Safety Features:

  • Protective Covers/Guards

  • Emergency Stop Button

  • Overload Protection System

Material Specifications

• Typical Materials Used: Galvanized steel (GI), cold-rolled steel, or mild steel

• Material Gauge: 12 to 18 gauge (1.2–3.0 mm)

• Yield Strength Range: 250–550 MPa (36–80 ksi)

Customization Options

• Profile-specific roller tooling sets

• Punching/notching station with programmable patterns

• Hydraulic coil car with auto feeding

• Servo-feeder for precision positioning

• Automatic stacker with adjustable length setting

• Remote PLC access and diagnostics

• Changeable spacers or cassette tooling for fast profile switch

Prices Start From

USD $45,000
Final price depends on production speed, material thickness range, punching system, automation level, and profile complexity.

What Affects Final Price

• Punching and pre-punching options

• Custom roller design for unique profiles

• Level of automation (e.g., servo motors, auto stackers)

• Brand of PLC and control systems (Siemens, Delta, Mitsubishi, etc.)

• Type and load capacity of de-coiler

• Tool steel grade upgrades for longer lifespan in abrasive environments

Why Choose This Machine for UAE Operations?

✔ Precision Engineering: Consistently accurate forming with high-speed output.
✔ UAE-Compatible Power & Settings: Configured for 380V / 50Hz / 3-Phase operation.
✔ Built Tough: Suitable for heavy-duty construction and steel structure industries common across Abu Dhabi, Dubai, and Sharjah.
✔ Lower Downtime: Chrome-plated rollers and high-quality components reduce wear and service intervals.
✔ Flexible Configurations: Easily tailored to your profile drawing and production line.
✔ Cost-Efficient: Produces high volumes with minimal scrap, increasing ROI.

Warranty & Support

• Warranty: 1-year warranty from dispatch

• Support: Durable maintenance, parts supply, and remote service available throughout the UAE

• Delivery: Shipped from our manufacturing partners, delivered anywhere in the UAE

How to Get a Custom Quote

To receive the most accurate pricing and machine proposal, please email your C bracing profile drawing, material specs, and production requirements to:
[email protected]

Frequently Asked Questions

Q1: What profiles can this machine produce?
A: It is designed to produce C-bracing sections and can be adapted for multiple sizes or integrated with spacer tooling or cassette-type roller stations for quick changeover.

Q2: Can this machine be customized for different material gauges?
A: Yes, it supports material thicknesses from 1.5 to 3.0 mm, and can be adjusted for even wider ranges depending on requirements.

Q3: Is installation and training provided in the UAE?
A: Yes, installation, commissioning, and operator training can be arranged in the UAE.

Q4: Can I add punching features?
A: Yes, a hydraulic or servo-driven punching unit can be integrated, customized to your hole patterns.

Q5: How fast can the machine be delivered in the UAE?
A: Production time is typically 6–10 weeks depending on complexity, with delivery arranged to your location in Abu Dhabi, Dubai, or any other emirate.

All Machines Are Brand New & Custom-Built

Machine Matcher works with trusted manufacturing partners to ensure every machine is tailored to your profile and production needs. Machines are built to meet global standards with a focus on performance, quality, and affordability.

For inquiries, specification submissions, or tailored quotes:
[email protected]
Delivery Available: UAE – Dubai, Abu Dhabi, Sharjah, and all Emirates
