C Channel Roll Forming Machine Algeria
- Condition
- New
- Supplier
- Roll Forming Machines Algeria
- Country
- Algeria
- Listing ID
- 8039
Request a Quote
To express an interest in this machine please submit the form below.
C Channel roll forming machines are vital tools in Algeria's construction and manufacturing industries. These machines are designed to produce precise, durable C-shaped profiles, widely used in steel framing, building construction, and infrastructure projects. This guide provides a detailed overview of the machine's specifications, description, and common questions.
Machine Description

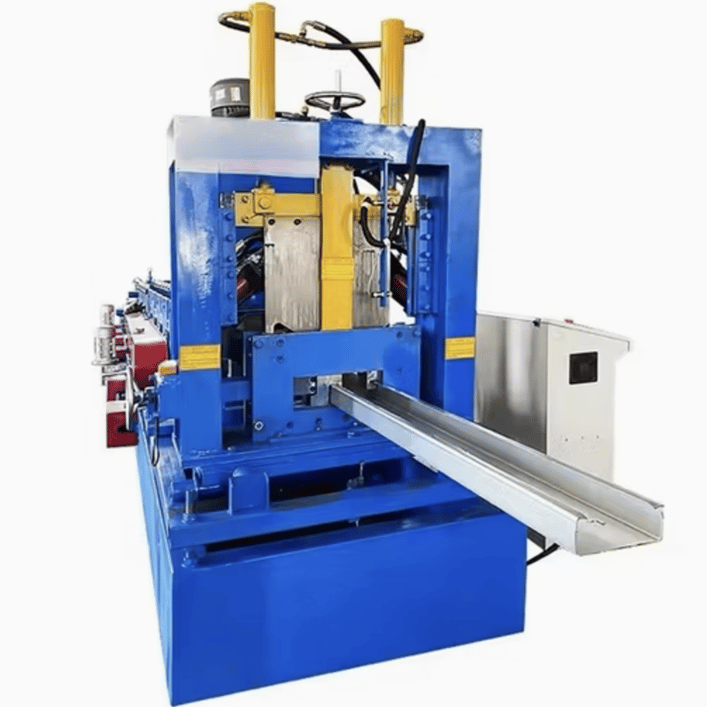

A C Channel roll forming machine is a highly efficient and automated system designed to transform metal coils into continuous C-shaped profiles. These profiles are commonly utilized in structural supports, wall studs, roofing, and industrial frameworks.
Key Features:
- High Precision: Advanced roller systems ensure consistent and accurate profiles.
- Customizable: Adjustable specifications to meet various width, height, and thickness requirements.
- Durability: Constructed with high-quality steel for long-term performance in industrial environments.
- Automation: Includes a PLC control system for efficient, user-friendly operation.
Applications:
- Structural components in buildings
- Fencing systems
- Ceiling systems
- Industrial storage racks
Specifications
Here are the typical specifications for a C Channel roll forming machine available in Algeria:
| Specification | Details |
|---|---|
| Material | Galvanized steel, carbon steel, aluminum, or stainless steel |
| Material Thickness | 0.5 mm to 4 mm |
| Profile Width Range | 50 mm to 300 mm |
| Profile Height Range | 20 mm to 80 mm |
| Production Speed | 10-30 meters per minute |
| Roller Material | High-grade chromium steel |
| Number of Stations | 10-20 (varies with machine model) |

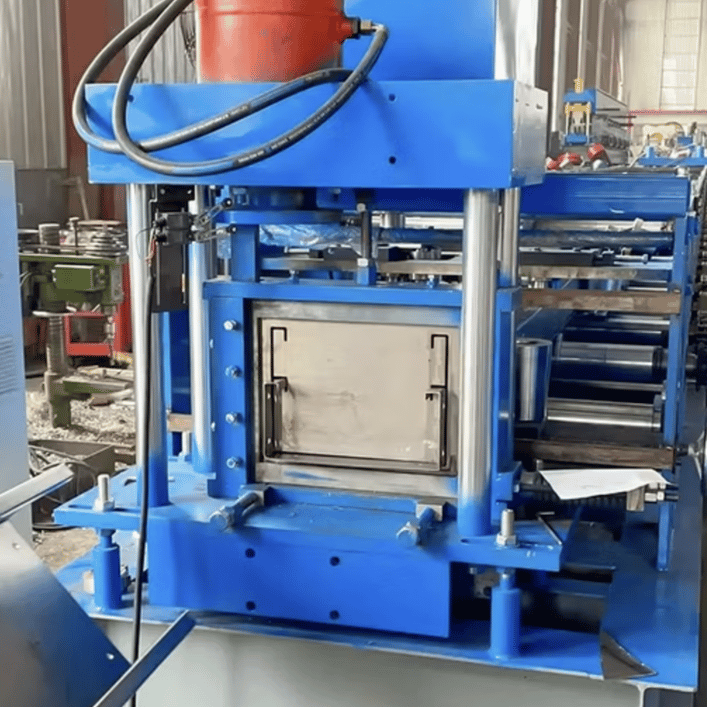

| Cutting System | Hydraulic cutting, precise and burr-free cuts |
| Control System | PLC with touchscreen interface |
| Power Requirements | Customizable based on local voltage (e.g., 220V/380V, 50Hz) |
| Motor Power | 7.5 kW to 15 kW |
| Hydraulic Station Power | 4 kW to 7.5 kW |
| Machine Dimensions | Approximately 6.5 m x 1.2 m x 1.2 m (varies by model) |
| Weight | Around 5 tons |
Optional Features
- Punching Systems: For pre-punched holes or slots.
- Stackers: Automated stacking for completed profiles.
- Remote PLC Control: Monitor and operate the machine remotely.
- Decoilers: Supports heavy coils for continuous operation.
- Embossing Systems: Adds textured patterns for specialized applications.
Setup and Installation
- Foundation Preparation: Install the machine on a leveled and reinforced surface.
- Electrical Connections: Ensure compatibility with local power supply.
- Coil Loading: Position metal coils onto the uncoiler.
- Machine Calibration: Set up rollers and cutting mechanisms for the desired profile dimensions.
- Trial Runs: Test the machine with sample runs to ensure accuracy.
Maintenance Tips
- Regular Cleaning: Keep the rollers and cutting blades free from debris.
- Lubrication: Periodically lubricate moving parts.
- Alignment Checks: Inspect roller alignment to maintain profile precision.
- PLC Updates: Ensure software is updated for optimal performance.
- Inspection: Conduct regular inspections to identify and replace worn-out components.
Questions and Answers
Q1: What are the most common materials used with a C Channel roll forming machine?
A1: Galvanized steel, carbon steel, and aluminum are most commonly used due to their durability and ease of forming.
Q2: Can the machine produce multiple C Channel sizes?
A2: Yes, most machines are designed with adjustable rollers and cutting systems to produce profiles of varying sizes.
Q3: Is a specialized technician required for operation?
A3: While initial setup and calibration might require technical expertise, the PLC system ensures that routine operations are straightforward and user-friendly.
Q4: How does the machine handle Algerian power supply standards?
A4: Machines can be customized to meet Algeria's standard power supply specifications (220V/50Hz or 380V/50Hz).
Q5: What is the typical lead time for importing such machines into Algeria?
A5: Lead times vary but generally range between 6-12 weeks, including shipping and customs clearance.
Q6: Are spare parts readily available in Algeria?
A6: Many suppliers offer spare parts or support through local distributors. It's advisable to confirm with the seller before purchase.
Q7: What is the average price range for a C Channel roll forming machine in Algeria?
A7: Depending on the specifications, the price can range from $20,000 to $80,000, excluding shipping and customs duties.
