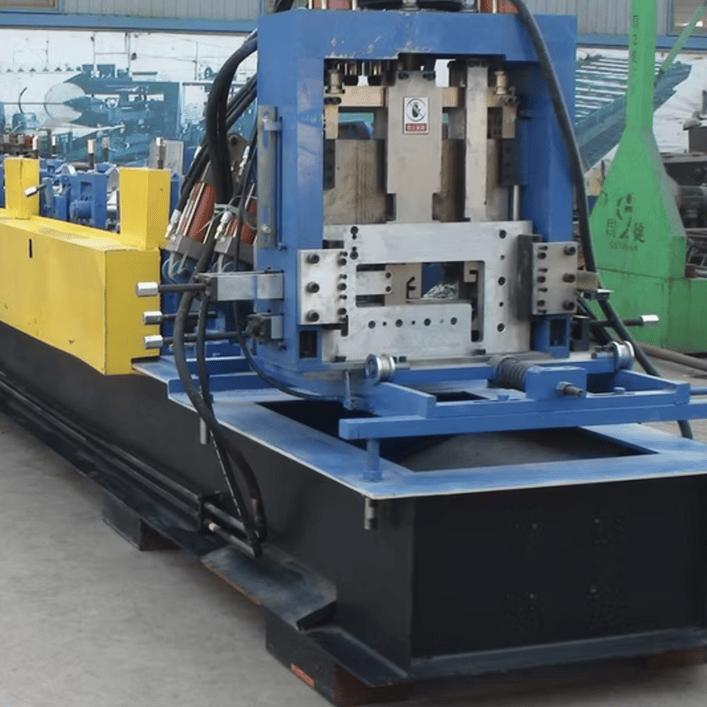

C Channel Roll Forming Machine Brazil
- Condition
- New
- Supplier
- Roll Forming Machines Brazil
- Country
- Brazil
- Listing ID
- 5253
Request a Quote
To express an interest in this machine please submit the form below.
A C channel roll forming machine is a specialized piece of equipment used to produce C-shaped metal profiles commonly used in construction, automotive, and industrial applications. The machine is designed to efficiently form C channels from coil stock, ensuring high precision, consistent quality, and scalability for large-scale production. These channels are widely used in frameworks, support structures, shelving systems, and more.
Machine Description

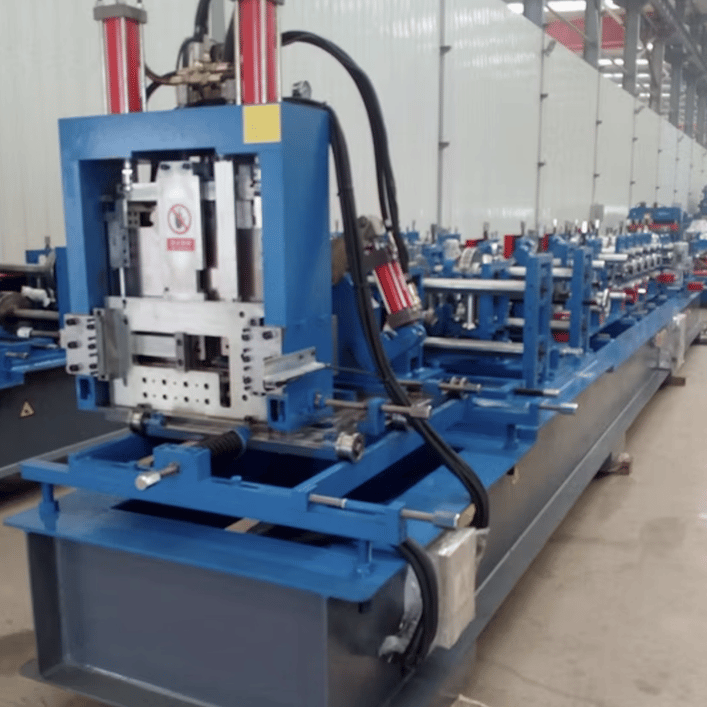

The C channel roll forming machine comprises several integrated systems that work together seamlessly:
- Decoiler: Holds and unwinds the metal coil for feeding into the machine.
- Roller Stations: Precision-engineered rollers that shape the metal into the desired C channel profile.
- Punching Unit: Adds holes or slots as required for assembly or bolting.
- Cutting System: Hydraulic or servo-driven cutting system ensures clean and accurate cuts at the desired lengths.
- PLC Control System: Enables automated control of the machine, ensuring consistency and ease of operation.
- Exit Conveyor: Facilitates smooth ejection and stacking of finished products.
Specifications
Below are the typical specifications for a standard C channel roll forming machine tailored for the Brazilian market:
| Specification | Details |
|---|---|
| Material Thickness | 1.0mm to 4.0mm |
| Material Width | 100mm to 600mm |
| Material Type | Galvanized steel, stainless steel, aluminum |
| Roller Material | GCr15 steel with chrome coating |
| Machine Speed | 10m/min to 25m/min |
| Cutting System | Hydraulic or Servo motor-driven |
| Punching Options | Hydraulic punching or servo punching |
| Power Supply | 380V, 50Hz (adjustable to Brazilian standards) |
| Control System | PLC with touch screen interface |
| Machine Dimensions | 10m x 1.5m x 1.5m |
| Weight | 8–12 tons (depending on configuration) |
| Additional Features | Safety guards, auto-stackers, remote PLC monitoring |
Applications in Brazil
C channel profiles are integral to various industries in Brazil:
- Construction: Structural supports, ceiling grids, and wall partitions.
- Industrial: Machinery frameworks, conveyor systems, and storage racks.
- Renewable Energy: Mounting structures for solar panels and wind turbines.
- Automotive: Chassis reinforcements and support beams.
Extras and Customizations
- Uncoilers: Manual, hydraulic, or motorized.
- Stacking Systems: Automatic stacking for high-speed production lines.
- Coil Handling Systems: Coil cars, tipper systems, and leveling systems.
- Customization: Machines can be customized for unique profile dimensions or additional features like embossing.
Question and Answer Section
Q1: What is the average production speed of a C channel roll forming machine?
A: The production speed typically ranges from 10m/min to 25m/min, depending on the complexity of the profile and the punching requirements.
Q2: Can the machine handle multiple profile sizes?
A: Yes, with adjustable roller configurations or quick-change cassettes, the machine can produce various profile sizes and shapes.
Q3: Is the machine compatible with Brazilian power supply standards?
A: Absolutely. The machine can be configured to meet Brazilian power standards (380V, 60Hz, or as required).
Q4: What maintenance does a C channel roll forming machine require?
A: Regular maintenance includes lubricating rollers, checking the PLC system, tightening bolts, and cleaning the machine to ensure optimal performance.
Q5: How is shipping and installation managed for customers in Brazil?
A: Machines are shipped in secure crates, and on-site installation and training can be provided by technical experts to ensure smooth operation.
Q6: What industries in Brazil are the largest users of C channel profiles?
A: The construction, automotive, and renewable energy sectors are the major users of C channel profiles in Brazil.
