C Channel Roll Forming Machine C75–300 | Beenew, Xiamen, China

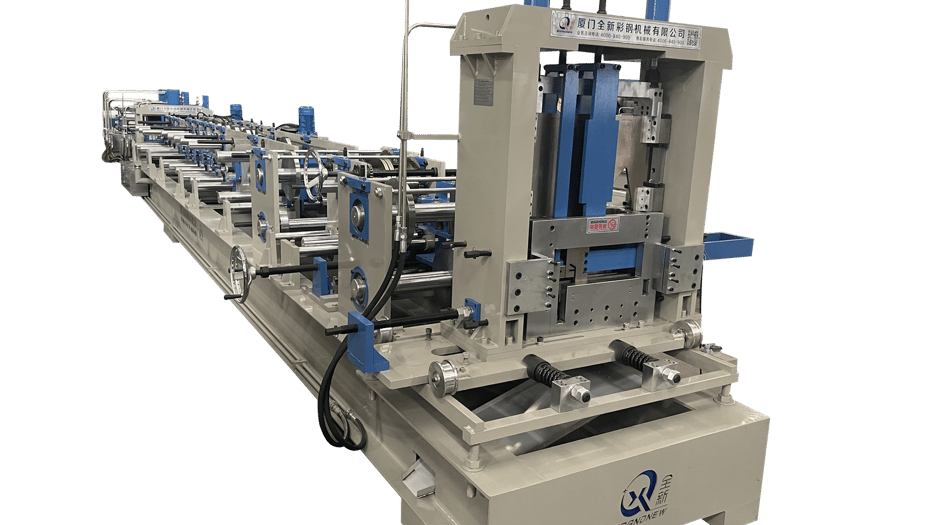

The Beenew C30030 is an automatic size-change roll forming machine for C channels and C purlins from 75 to 300 mm, in material 1.0 to 3.0 mm thick. Sizes change in about five minutes without swapping rollers, spacers or the cutter, and any size within the range can be produced.

The line runs decoiler, feeding and levelling, 14-station chain-driven roll former, hydraulic punching and cutting, and run-out track. Holes can optionally be punched anywhere on the web and flanges.

Key Features

• C75 to C300 without changing rollers or spacers
• Self-developed post cutter: one blade cuts every size
• Web size changed automatically in about 5 minutes
• Optional punching on web and flanges
• Simple to run, low maintenance

Technical Specifications

• Model: C30030
• Material width: 100–300 mm
• Thickness: 1.0–3.0 mm
• Speed: Up to 30 m/min
• Power: 22 kW
• Decoiler: Hydraulic, automatic tensioning, 5 t
• Drive: Chain
• Forming stations: About 14
• Rollers: Cr12 mould steel, lower roller about 360 mm
• Shafts: 40Cr, double-ground, ø80–65 mm (final design)
• Size change: Automatic or semi-automatic
• Punching and cutting: Hydraulic, punching before forming; Cr12MoV; 7.5 kW, 12–16 MPa
• Control: PLC, length accuracy ±2 mm, quantity counting

Applications

• C channels and C purlins for steel structures
• Wall girts and secondary framing
• Small fabricators and high-volume producers alike

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China
• Warranty: 2 years

Frequently Asked Questions

• What sizes can it make? C75 to C300, at any size in between.
• How long does a size change take? About 5 minutes, with no roller or cutter changes.
• What thickness can it handle? 1.0–3.0 mm.
• What should I send for a quotation? Your channel drawing, size range, material and thickness, hole pattern and output target.
