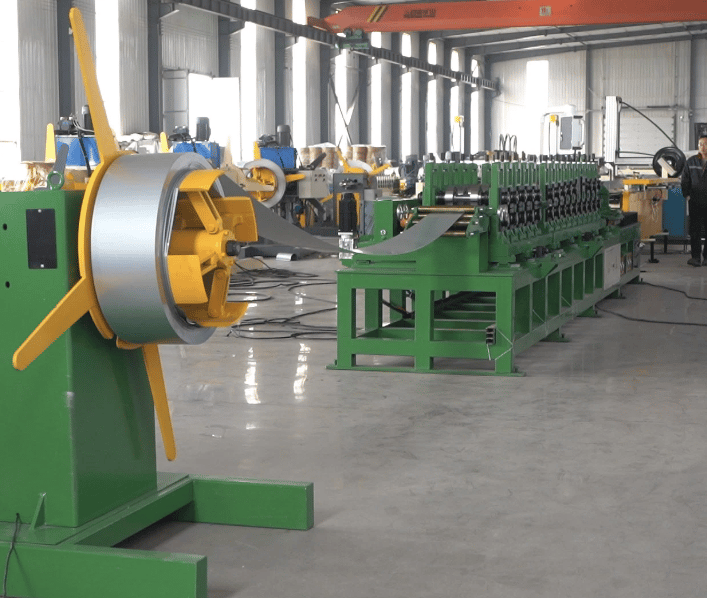

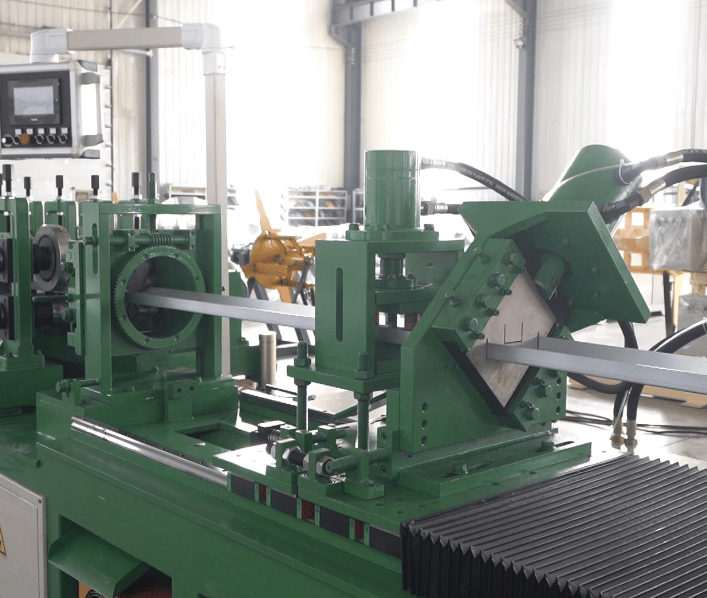

C Channel Roll Forming Machine in Algeria
- Condition
- New
- Supplier
- Roll Forming Machines Algeria
- Country
- Algeria
- Category
- Listing ID
- 9356
Request a Quote
To express an interest in this machine please submit the form below.
GI,GL |
0.47-0.8mm |
Hydraulic decoiler |
Electric double head decoiler |
Roller station |
19 rows ( As technical requirements ) |
Diameter of shaft |
50mm solid shaft |
Material of rollers |
45# steel, hard chrome plated on the surface |
Machine body frame |
Metal steel welded |
Drive |
Gearbox transmission |
Dimension ( L × W × H ) |
5500 × 800 × 1200 mm ( According to the goods ) |
Weight |
About 7 tons |
Automatic |
Cr12MoV material, no scratches, no deformation |
Motor power |
11kW × 2 sets, with 3 more sets linear motors |
Hydraulic system power |
Energy tank with the power of 11kW |
380V/50Hz/3Phases |
As customer requirements |
Electric control cabinet |
Rocker arm typr or cabinet type |
Language |
Chinese/English/Spanish/French or customized |
PLC |
Delta/Siemens/Mitsubishi, optional |
Control system |
Automatic ciontrol production of the whole machine. Can set batch, length, quantity, etc. |
70m/min(customized) |
Speed is adjustable according to customer's request |
