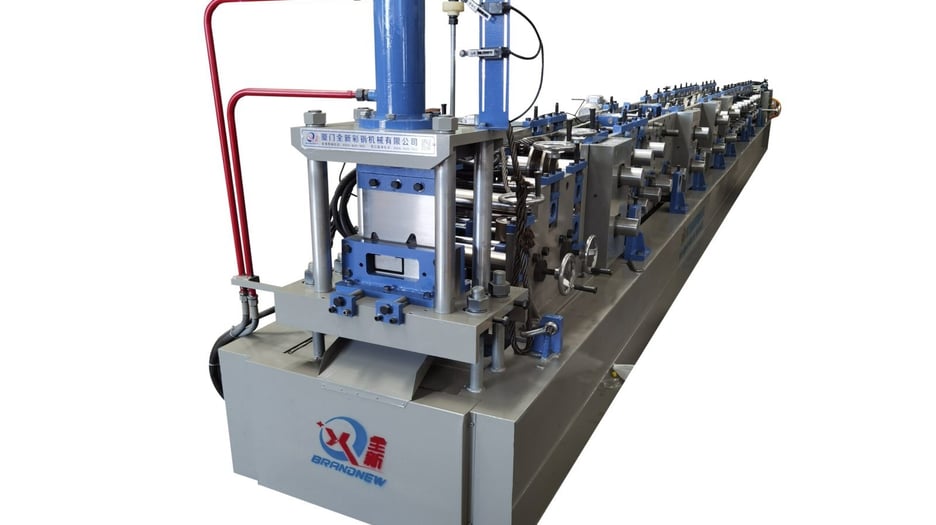

C Purlin Roll Forming Machine C50–200 | Beenew, Xiamen, China

The Beenew C20020 produces galvanised steel C purlins from 50 to 200 mm wide, from coil 1.0 to 2.0 mm thick. It is a fully automatic size-change machine: any size within the range can be set without swapping rollers, spacers or the cutter. Beenew holds a patent on its automatic size-switching system.

The line runs decoiler, feeding and levelling, roll forming, hydraulic punching and cutting, and product support frames. Holes can optionally be punched at any position on the web and flanges.

Key Features

• Any size from C50 to C200 without changing rollers or spacers
• One cutter for every size
• Infinitely variable sizing within the range, which helps save material
• Optional punching anywhere on the web or flanges
• Simple operation and low maintenance cost

Technical Specifications

• Model: C20020
• Purlin width: 50–200 mm
• Material thickness: 1.0–2.0 mm
• Speed: Up to 20 m/min
• Power: 7.5 kW
• Decoiler: Hydraulic, automatic tensioning, 5 t
• Drive: Chain
• Forming stations: About 13
• Rollers: Cr12 mould steel, lower roller diameter about 360 mm
• Shafts: 40Cr, double-ground, ø60–45 mm (final design)
• Size change: Automatic or semi-automatic
• Punching and cutting: Hydraulic, punching before forming; Cr12MoV blades; 4 kW, 12 MPa
• Run-out: 3 product support frames
• Control: PLC with automatic length measurement (±2 mm) and quantity counting; machine pauses while punching and cutting

Applications

• Industrial buildings and warehouses
• Agricultural greenhouses
• Sports stadiums and large-span venues
• Building extensions and renovations

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China
• Warranty: 2 years

Frequently Asked Questions

• What sizes can it make? C purlins 50–200 mm wide, at any size in between.
• Do I need to change rollers or the cutter between sizes? No. Rollers, spacers and the cutter stay in place.
• What thickness can it handle? 1.0–2.0 mm.
• What should I send for a quotation? Your purlin drawing, size range, material grade and thickness, hole pattern and output target.
