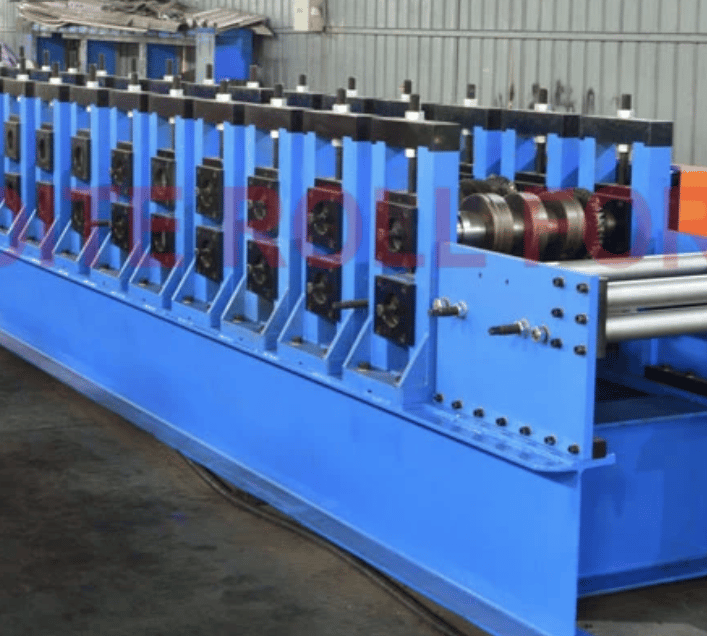

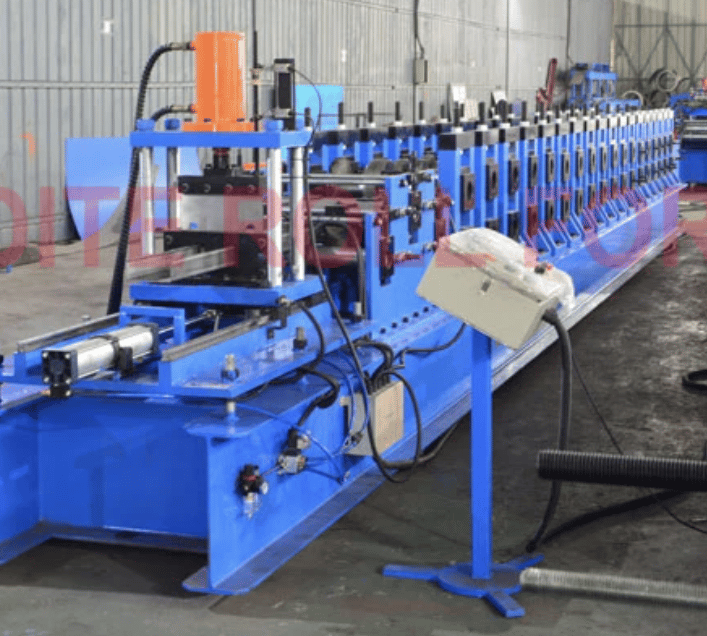

C Purlin Roll Forming Machine in El Salvador
(1) 5Tons un-coiler
| Description | There are different choices, please turn to the catalogue of un-coiler |
| (2) Simple pre-leveling device | |
| Frame design | Powered feed in/feed out rollers,4 over 3 shafts |
| Motor power | 7.5KW |
| (3) Pre-punching device | Punch single hole on web, double holes on web Punch double holes on flanges |
| Motor power | 5.5KW |
| (4) The general machine parameter | |
| Suitable roll forming material | Galvanized |
| Thickness | 3-4mm |
| Feeding width | 285/255mm |
| Frame design | Stand-frame-design |
| Roll stages | 18 stages |
| Material of forming roller | Cr12, CNC lathes, heat treatment |
| Shafts Diameter | Φ95mm |
| Main motor power | 18.5KWx2, frequency speed control |
| Max. Line speed of roll former | 12m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 22KW |
| Material of cutting blade | Cr12Mov, heat treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Major Color of Machine Painted | RAL5015 (Blue) or as per customer's requirements |
| (5) PLC Control system | |
| PLC | Siemens brand |
| Touch Screen | Siemens brand |
| Inverter | Shihlin |
