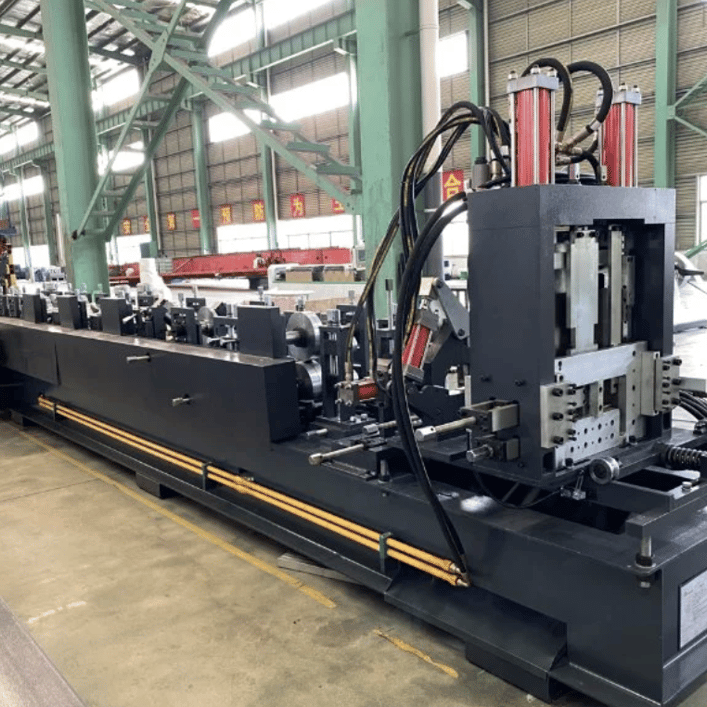

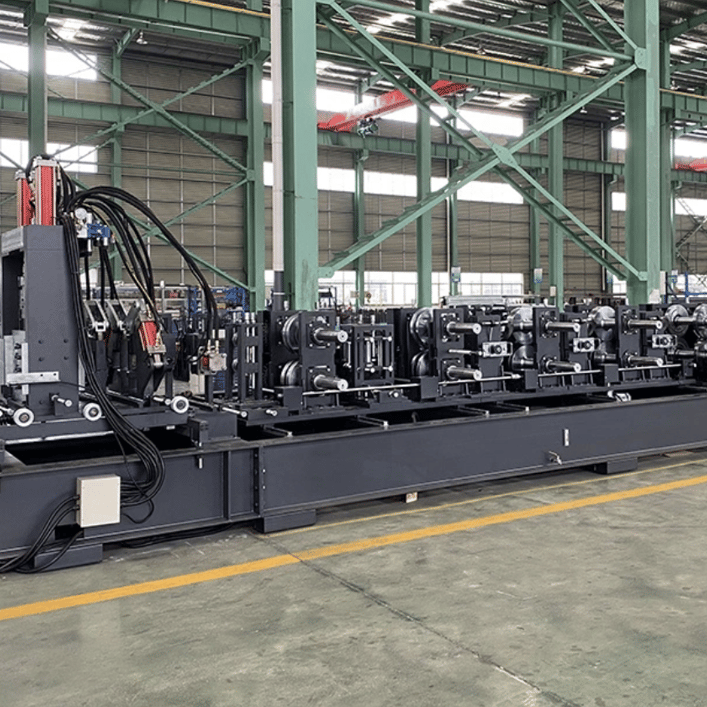

C Purlin Roll Forming Machine in Guatemala
| 1. Purlin size:80-300mm web, 3.0mm thickness | |
| 2. Core components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump | |
| 3. Dimension(L*W*H): 10M*1M*2M | |
| 4. Forming group: 18 | |
| 5. Control system: PLC | |
| 6. Drive: 22.5kw servo drive and reducer | |
| 7. Production Capacity: 30m/min | |
| 8. Weight: 10tons | |
| 9. Roller material: GCr15 | |
| 10. Hydraulic decoiler: 6 tons capacity | |
| Material | GCr15 |
| Application | Purlin |
| Package | Product dimension & weight: 10M*1M*2M |
| Package dimension & weight: 12M*2.3M*2.6M | |
| FCL 40HCX1 |
