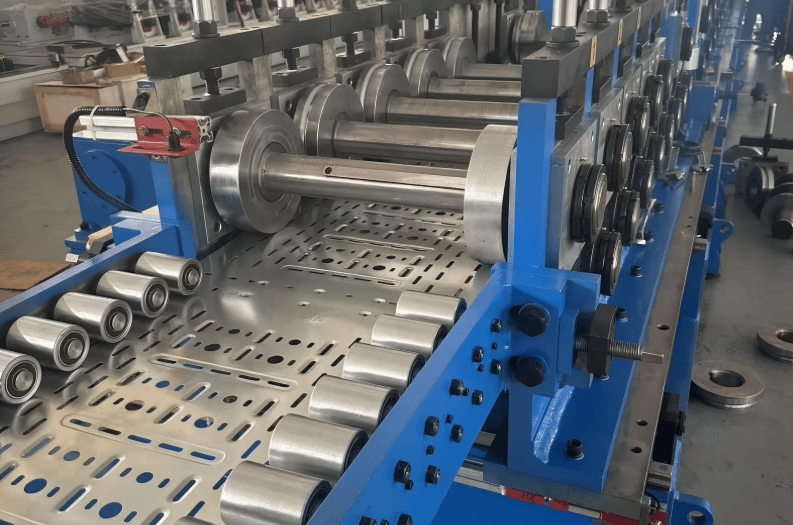

The Beenew Cable Tray Roll Forming Machine is an automated production line for building and industrial cable trays. It combines an uncoiler, a hydraulic punching and cutting system, and a width-adjustable roll forming system, and handles steel from 1 to 2 mm thick. Its standout feature is automatic width adjustment, so one line can produce trays across a wide range of sizes with fast changeovers. PLC control with a touchscreen makes it straightforward to run, and Beenew can tailor the line to the customer's own tray drawings. This line was built for a customer in Türkiye.

How It Works

• Coil is loaded onto the uncoiler
• The strip is levelled and fed forward by servo feeding
• The hydraulic unit punches the tray's perforation pattern and cuts the blank to length
• The width-adjustable roll former forms the tray profile
• Finished trays are discharged from the line

Key Features

• Automatic width adjustment for fast size changes
• Uncoiler, hydraulic punching and cutting system, and width-adjustable roll forming system
• Servo feeding for accurate punching positions
• PLC control with a touchscreen interface
• Customisable to the customer's own cable tray drawings
• Suitable for galvanised, stainless and powder-coated steel trays

Technical Specifications

• Material thickness: 1–2 mm
• Tray widths 100–600 mm: height adjustable from 50 to 100 mm
• Tray widths 600–900 mm: height fixed at 50 mm
• Width adjustment: Automatic
• Punching and cutting: Hydraulic
• Control: PLC with touchscreen

Standard Uncoiler (to be confirmed for this machine)

• Coil inner diameter: 508 ±30 mm
• Maximum coil outer diameter: 1,500 mm
• Maximum coil weight: 5 t
• Hydraulic motor: 3 kW

Applications

• Cable support systems for offshore projects, shipbuilding, industrial projects and construction
• Cable management in commercial and industrial buildings
• Power distribution and telecommunications cabling
• Galvanised, stainless and powder-coated cable tray production

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China
• Reference: Supplied to a customer in Türkiye

Frequently Asked Questions

• What tray sizes can it make? Widths from 100 to 900 mm. Trays up to 600 mm wide can be 50–100 mm high, and wider trays are 50 mm high.
• What material thickness can it handle? 1–2 mm.
• How are sizes changed? The roll former adjusts its width automatically.
• Can it produce my tray design? Yes. Beenew customises the line to the customer's tray drawings.
• What should I send for a quotation? Cable tray drawings (including perforation pattern), material type and thickness, width and height range, tray lengths and output target.
