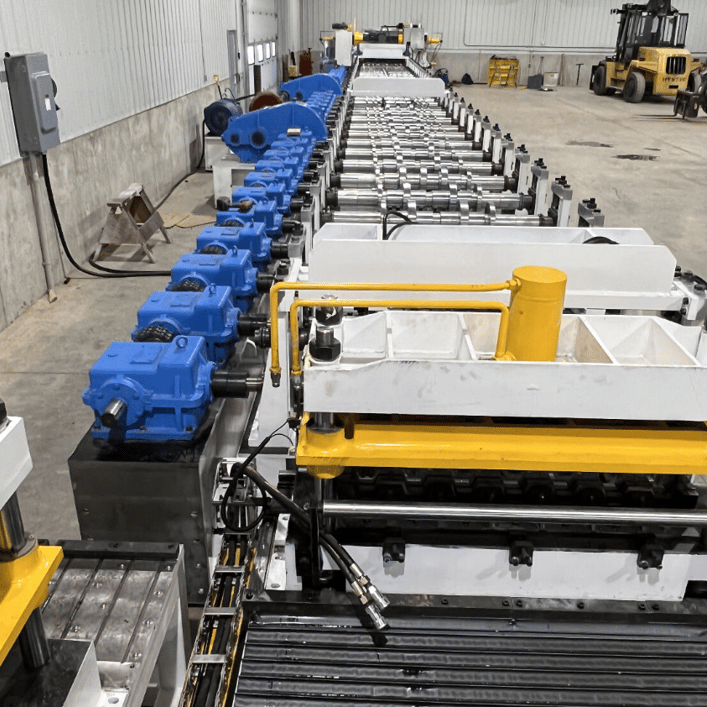

Cassette Type Roll Forming Machine Greece

Cassette-type roll forming machines are versatile and efficient systems designed for producing various metal profiles. These machines are unique because they utilize interchangeable cassettes to manufacture different profiles without needing a completely separate machine for each profile. This design ensures flexibility, cost-efficiency, and ease of operation, making them an ideal choice for industries in Greece where diverse profile production is in demand.

Machine Description

A cassette-type roll forming machine is engineered to cater to industries requiring a wide range of metal profiles, such as construction, automotive, and industrial sectors. The machine’s modular design allows quick changeovers between profiles by swapping the cassettes, saving time and increasing productivity.

This type of roll forming machine is particularly popular in Greece, where industries are diverse, and demand for roofing, cladding, and structural profiles is high. The flexibility to produce multiple profiles on a single machine aligns perfectly with the local industry's need for efficiency and adaptability.

Specifications

Here are the detailed specifications for a cassette-type roll forming machine:

Frame and Structure

• Frame Material: Heavy-duty steel, welded and stress-relieved.
• Frame Size: Customizable depending on the profile requirements.

Rollers

• Roller Material: High-grade chromium-coated steel for durability.
• Roller Stations: 10–25 stations, depending on the profile complexity.

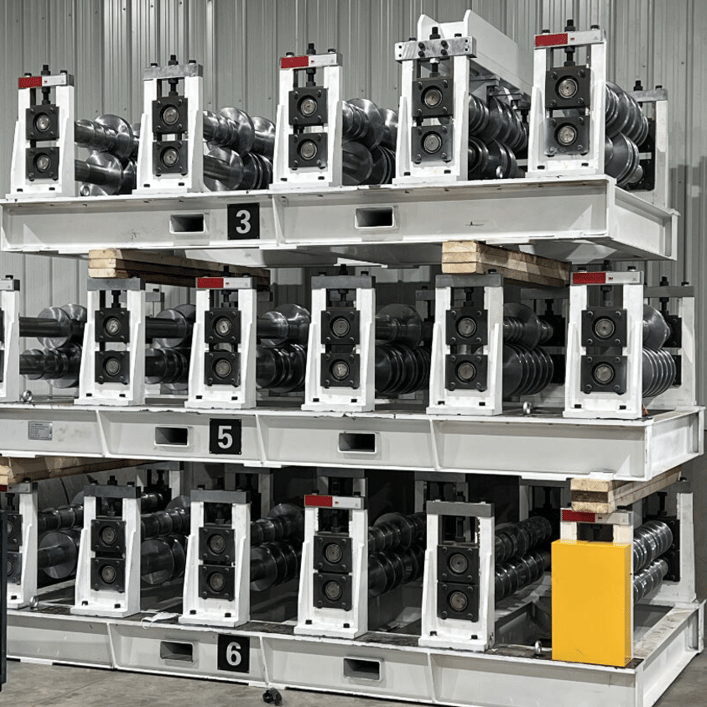

• Cassette Material: Heat-treated steel, designed for quick and easy swapping.

Driving System

• Drive Type: Servo motor or gear-driven system for precision.
• Motor Power: 7.5–15 kW (customizable based on the profile).
• Hydraulic Power Pack: 5–10 kW, ensuring smooth operations.

Cutting System

• Type: Hydraulic or pneumatic.
• Blade Material: Cr12Mov, heat-treated for long-lasting sharpness.
• Cutting Precision: ±0.5 mm.

Control System

• PLC System: Siemens or Mitsubishi.
• HMI (Human-Machine Interface): Touchscreen for easy operation.
• Remote Control: Optional for remote monitoring and control.

Machine Speed

• Production Speed: Up to 20–40 meters per minute (profile-dependent).
• Changeover Time: 15–30 minutes per cassette.

Dimensions

• Machine Size: 8–12 meters in length, customizable based on the production line.
• Weight: 5–15 tons, depending on the machine size and features.

Optional Features

• Decoilers: Manual, hydraulic, or automatic (up to 10 tons capacity).
• Recoilers: Single-head or double-head recoilers.
• Leveling System: Precision leveling for perfect material flatness.
• Stackers: Automatic stackers for efficient material handling.

Profile Applications

Cassette-type roll forming machines are capable of producing:

• Roofing profiles
• Wall cladding
• Structural beams
• Purlins (C, Z, U profiles)
• Floor decking
• Custom profiles for construction and automotive applications

Advantages

1. Flexibility: Multiple profiles can be produced on the same machine by changing cassettes.
2. Cost-Efficiency: Reduces the need to invest in multiple machines.
3. Space-Saving: A single machine can handle the work of several standalone machines.
4. Time-Efficient: Quick cassette changeover minimizes downtime.
5. Durable Design: Built for long-term use with minimal maintenance.

Cassette-Type Roll Forming Machines in Greece

In Greece, the demand for such machines is growing due to the construction and renovation boom. Industries benefit from the machine's ability to produce roofing and structural profiles required in commercial and residential projects. Additionally, the capability to switch profiles quickly is ideal for small-batch production, which is common in the Greek market.

FAQs

1. What materials can the machine handle?

The machine can process galvanized steel, aluminum, stainless steel, and pre-painted steel with thicknesses ranging from 0.3 mm to 2.0 mm.

2. How long does it take to change a cassette?

The average time for a cassette change is 15–30 minutes, depending on operator experience and profile complexity.

3. Is the machine compatible with Greek power supply standards?

Yes, the machine is designed to work with a 380V, 50Hz power supply, which is standard in Greece.

4. Can the machine be customized?

Absolutely! The machine can be tailored to specific profile dimensions, production speeds, and additional features to meet your requirements.

5. What is the delivery time for the machine?

Delivery times range from 60 to 90 days, depending on customization and production schedules.

6. What kind of maintenance does the machine require?

Routine maintenance includes lubricating moving parts, inspecting rollers for wear, and checking the PLC system for updates. Detailed maintenance guidelines are provided with the machine.

Conclusion

Cassette-type roll forming machines are a perfect fit for Greece's dynamic industrial needs, offering versatility, efficiency, and cost savings. Whether you're in construction, automotive, or manufacturing, this machine can help streamline production and enhance product quality.

If you are interested in learning more about cassette-type roll forming machines or need help selecting the right model for your business in Greece, feel free to contact us!
