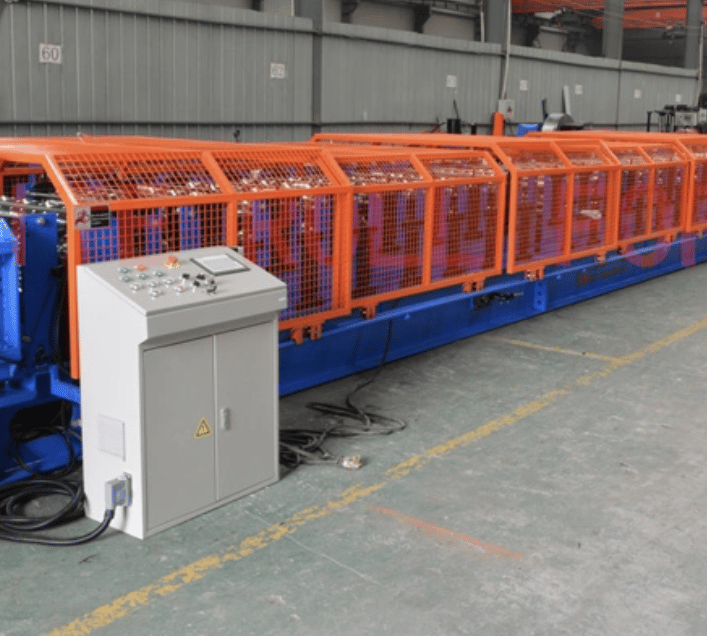

Cladding Roll Forming Machine in El Salvador

Request a Quote

To express an interest in this machine please submit the form below.

Description	There are different choices, please turn to the catalogue of un-coiler
(2) Manual Pre-shearing device
Function	un-powered Dual Leveling Smart cut control, to cut off the end of the final piece of sheet only
Shearing Thickness	Up to Max. 0.6mm (if thickness > 0.6mm, then hydraulic pre-shearing device or electric pre-shearing device instead )
(3) The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.4mm-0.6mm
Feeding width	1220mm
Frame design	Wall-plate-frame-design /New-stand-frame-design
Upper Roll stages	20 stages
Lower Roll stages	20 stages
Material of forming roller	45# steel with forge treatment, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75/Φ95mm
Main motor power	11KW with reducer
Max. Line speed of roll former	20-25m/min (Higher speed is available, depends on the specification required by the buyer)
Attention: The two levels can't be run at the same time Manual Clutch to switch the driven system The two profiles share one un-coiler/ base frame/ main motor for roll former/ hydraulic cutting carriage/PLC control system
Hydraulic group power	5.5KW
Material of cutting blade	Cr12, heat treatment
Electric Standard	415V /50Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
(4) PLC Control system
PLC	Siemens brand
Touch Screen	Siemens brand
Inverter	Schneider or Shihlin or Panasonic brand
Encoder	Omron brand
(5) Product rack
Description	un-powered, 3 units
