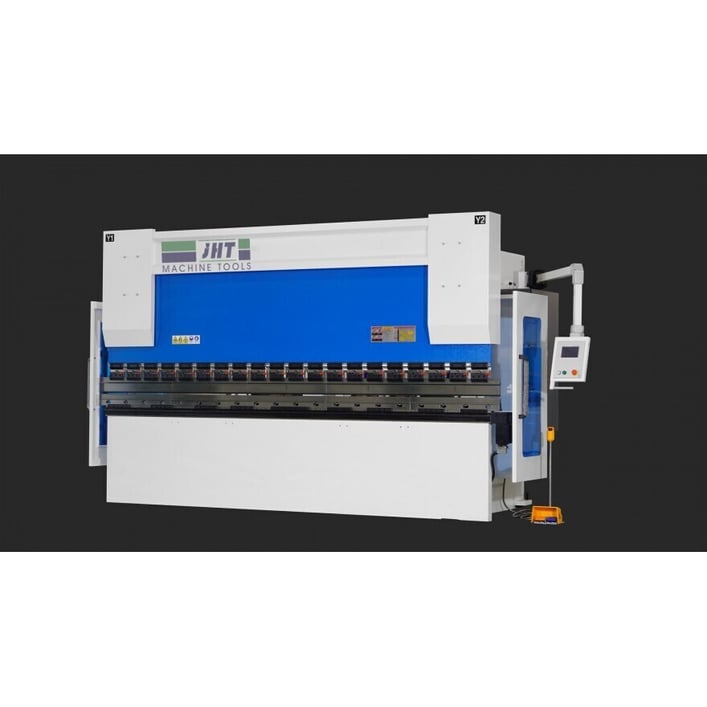

CNC ELECTRO HYDRAULIC PRESS BRAKE 100T3200

View more details here CNC ELECTRO HYDRAULIC PRESS BRAKE 100T3200 MODEL CT8 4+1 AXIS

New $29,000.00

Main Configuration

· Touch 8 controller

· Controller controls and adjusts Y-axis and X-axis

· Servo drive and control positioning of X-axis and Y-axis

· Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

· Front supporter bracket

· Germany Bosch Rexroth hydraulic valve block

· Germany EMB oil tube connector

· Germany Siemens main motor

· France Schneider electrics

· Hydraulic & electrical overload protectionTop and bottom dies (86 °, R0.6mm, material: 42CrMo HRC ±47 °)

· Ajdust quality stop finger

· Increase axis support 4+1 axis (R axis )

Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

· Hydraulic synchronous control and CNC programmable controller guarantee precise repeatability and easy use.

· Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.

· X ,Y-axis realize accurate positioning function through CNC CybTouch 8 controller programming and servo motor.

· Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

· Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

· PBT series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done
