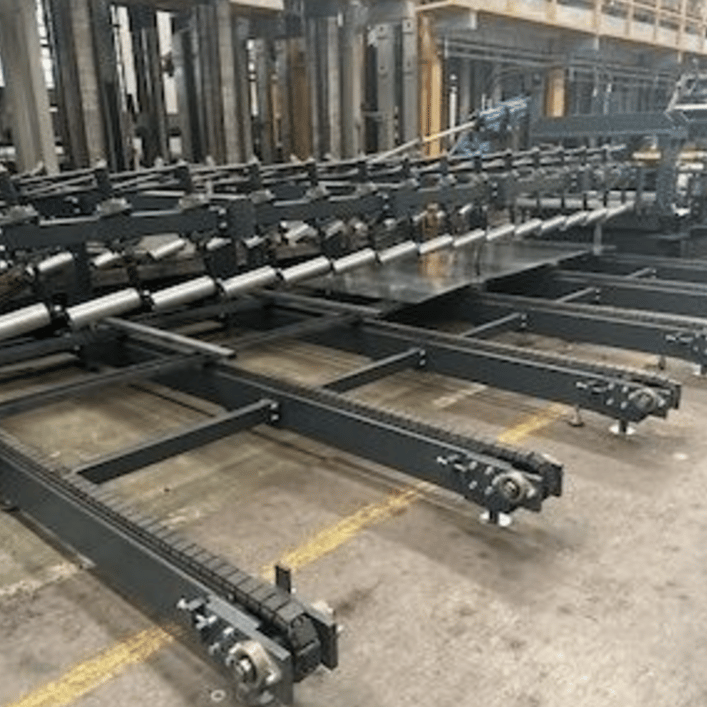

Cold Roll Forming Machine Custom Auto Stacker

A Cold Roll Forming Machine with a Custom Auto Stacker is a highly specialized piece of equipment used to fabricate profiles for various industries, including construction, automotive, and industrial sectors. This system not only forms precise and uniform profiles but also includes an integrated custom auto-stacker that automates the stacking process, significantly reducing manual labor and ensuring consistent stacking of finished profiles for efficient handling and shipping.

Key Features

• Custom Auto Stacker Integration: Fully programmable stacking system tailored to meet specific requirements of profile size, length, and stacking pattern.
• High-Speed Production: Capable of producing profiles at speeds ranging from 15 to 60 meters per minute, depending on the material and profile complexity.
• PLC Automation: Advanced PLC (Programmable Logic Controller) system ensures seamless operation, synchronization, and customization.
• Durable Build: Constructed with high-grade steel for long-term reliability.
• Energy Efficiency: Optimized power consumption for cost-effective operation.
• Safety Features: Includes enclosures, guards, and emergency stop systems to ensure operator safety.

Machine Specifications

1. Roller Materials:
   • High-quality chromium-coated rollers for durability and precision.
2. Frame Size:
   • Rigid steel frame, customizable based on production needs.
3. Motors:
   • Servo motors for precise operation; power ranges from 5kW to 20kW depending on machine size.
4. Hydraulic Cutting System:
   • Ensures clean, burr-free cuts with adjustable pressure.
5. Stacker Dimensions:
   • Fully adjustable to accommodate profiles of different lengths and widths.
6. PLC System:
   • User-friendly touch screen interface with multi-language support.
7. Machine Speed:
   • Adjustable speeds up to 60 m/min.
8. Safety Guards:
   • Fully enclosed guards for all moving parts.
9. Enclosures:
   • Weather-resistant and sound-proof enclosures available for outdoor or noisy environments.
10. Power Supply:
    • Configurable to 220V, 380V, or 440V depending on Florida’s local power requirements.
11. Material Capability:
    • Processes steel, aluminum, and galvanized materials with thicknesses ranging from 0.3mm to 4.0mm.

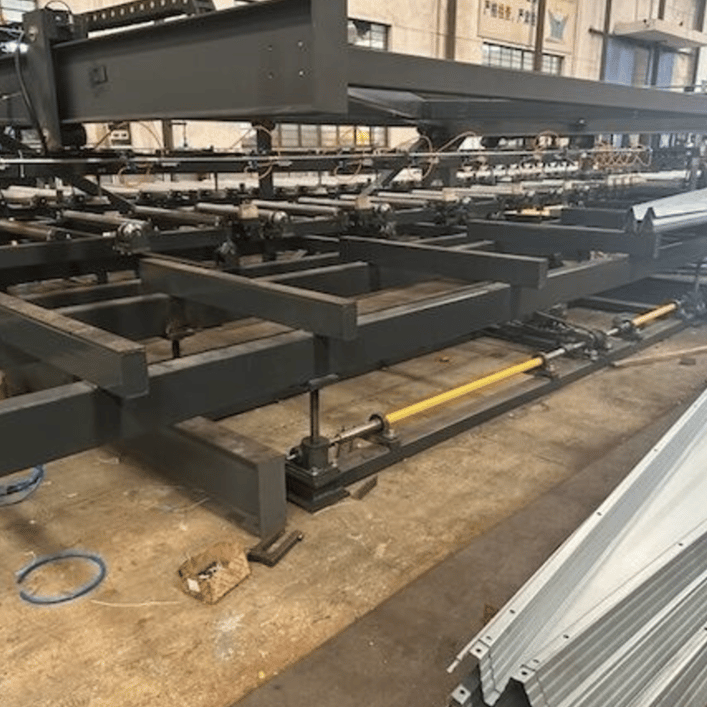

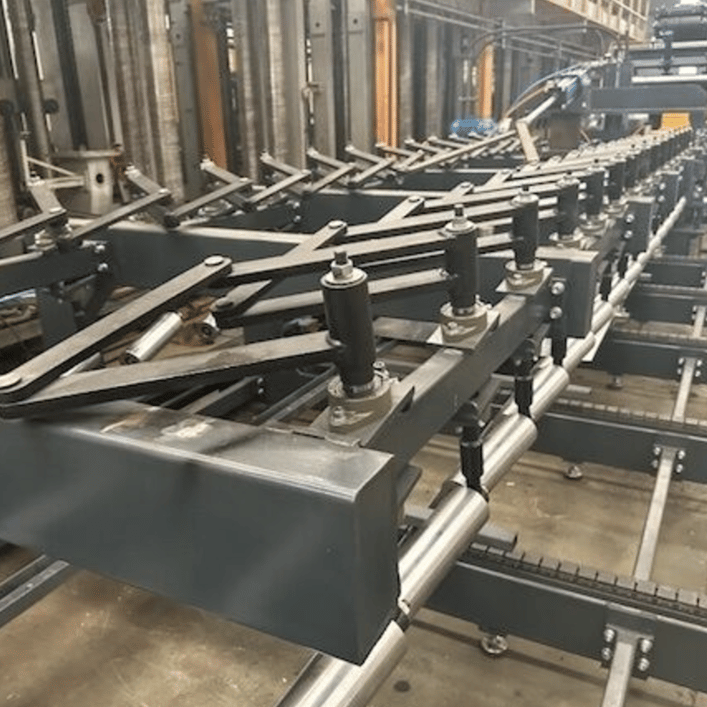

Custom Auto Stacker Features

• Automatic Profile Alignment: Ensures profiles are perfectly aligned before stacking.
• Programmable Stack Height: Allows operators to set stack heights based on project needs.
• Conveyor System: Moves finished profiles from the forming machine to the stacker.
• Safety Sensors: Detect obstructions or misaligned profiles, pausing operation to prevent accidents.
• Compact Design: Optimized for factory floors with limited space.

Applications in Florida

1. Construction Industry: Producing roof panels, wall cladding, and structural profiles for residential and commercial buildings.
2. Industrial Applications: Creating profiles for manufacturing systems, shelving, and storage units.
3. Transportation: Fabricating parts for automotive and marine industries in Florida.

FAQs: Cold Roll Forming Machine with Custom Auto Stacker

Q1: What are the main advantages of using a custom auto stacker in Florida?

A: The custom auto stacker reduces labor costs, minimizes handling errors, and ensures consistent stacking of profiles, which is essential for projects requiring high precision and efficiency.

Q2: Can this machine handle Florida’s specific material needs?

A: Yes, the machine is designed to handle a wide range of materials, including galvanized steel and aluminum, commonly used in Florida’s construction and marine industries.

Q3: How is the machine adapted to Florida’s power supply requirements?

A: The machine can be customized to operate on 220V, 380V, or 440V power, ensuring compatibility with Florida’s industrial power standards.

Q4: Is the machine suitable for outdoor use?

A: Yes, the machine can be equipped with weather-resistant enclosures to protect it from Florida’s humid and coastal conditions.

Q5: What is the warranty period for the machine?

A: The machine typically comes with a 1-2 year warranty covering major components, with extended warranty options available.

Q6: How easy is it to operate and maintain?

A: The machine is equipped with a user-friendly PLC interface and requires minimal maintenance. Regular lubrication and cleaning of rollers are sufficient for optimal performance.

Q7: Can the machine be transported easily to Florida?

A: Yes, the machine is designed for modular assembly, making it easy to transport and set up in Florida.
