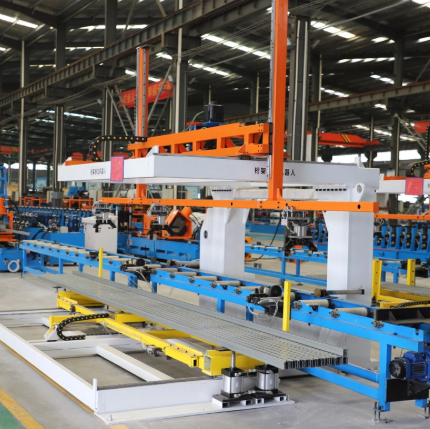

Jinbolida Cold Roll Forming Machine for Solar Mounting – The Core of a Solar Profile Production Line

The Jinbolida Cold Roll Forming Machine for Solar Mounting shapes flat steel strip into strong, continuous solar mounting profiles at room temperature. It forms the heart of a solar bracket production line, with a train of precision-machined roller dies bending the strip in small, controlled steps into rails, channels and angles. Its heavy-duty frame resists deflection under high forming loads, and interchangeable roll sets let one machine produce a wide range of profiles, from simple end-clamp angles to complex multi-channel rails. The machine connects directly to upstream uncoilers and levellers and to downstream punching and cutting units, including Jinbolida's own.

How It Works

• Flat steel strip enters from an uncoiler and leveller
• A series of roller die stations each makes a small, incremental bend
• The roll sequence is designed so the strip flows smoothly without wrinkling, stretching or cracking
• The finished continuous profile passes on to punching and cut-off units

Key Features

• Heavy-duty, rigid frame that resists deflection under high forming pressure
• Precision-machined roller dies on shafts with high-capacity bearings
• Interchangeable roll sets for a wide range of solar profiles
• Variable-speed motor drive with precision gearbox for smooth, consistent line pull
• Designed to integrate with uncoilers, levellers, punching units and cut-off systems
• Built for durability, precision and easy maintenance
• Rollers and key parts machined in-house at Jinbolida's own factory

Configurable Options (to be confirmed with Jinbolida)

• Cassette or cartridge roll change, allowing a complete roll set to be swapped as one unit for faster changeovers

Benefits of Cold Roll Forming for Solar Mounting

• Stronger profiles from thinner steel: Cold working raises the yield strength of the metal through strain hardening, so lighter-gauge material can be used, reducing material cost and weight
• Protects galvanised and pre-coated steel: Forming at room temperature avoids scale and oxidation, keeping coatings intact
• Consistent profiles: Every metre of profile is formed to the same shape
• Long tool life: Rolling causes less tool wear than punching or shearing, lowering long-term maintenance costs

Applications

• Solar mounting rails and multi-channel rails
• C and U channels for PV racking
• Angles for end clamps and bracing
• Ground-mount and rooftop solar structure profiles

How This Fits into a Jinbolida Solar Line

• Uncoiler and leveller: Feed flat strip into the line
• Cold roll forming machine (this machine): Forms the continuous profile
• Solar Bracket Punching Machine Line: Punches hole patterns
• Punching and Cutting Line for Solar Frames: Punches and cuts profiles to final length

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What profiles can it make? Solar mounting rails, channels and angles. Changing roll sets lets one machine produce many different profiles.
• Does cold forming affect galvanised coatings? No. Forming happens at room temperature, so there's no scale or oxidation and pre-galvanised coatings are preserved.
• Can it work with punching and cutting equipment? Yes. It's designed as the core of a line, working with uncoilers, levellers and downstream punching and cutting units.
• How quickly can profiles be changed? Changeover time depends on configuration. Ask Jinbolida about cassette roll-change options.
• What should I send for a quotation? Profile drawings, material grade and thickness, strip width, required line speed, whether you need punching and cutting, and your local voltage and frequency.
