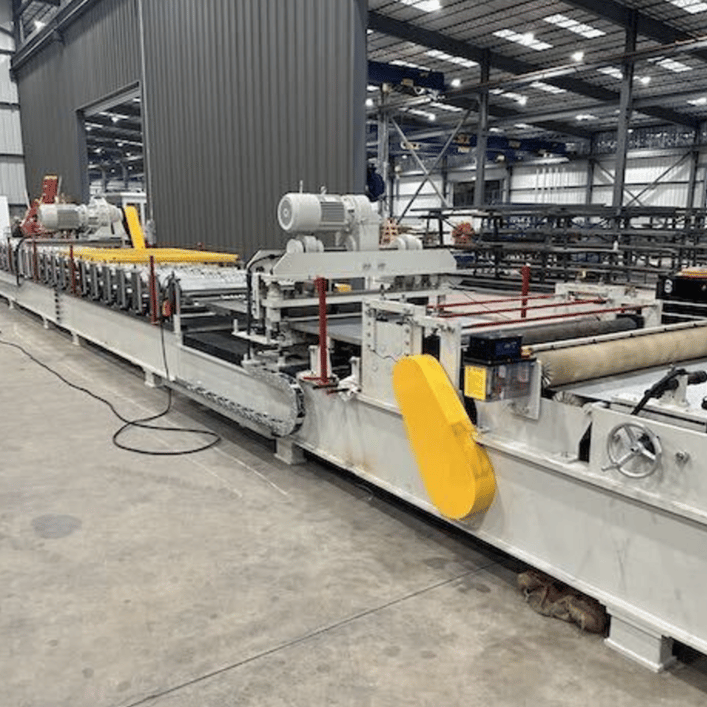

Composite Decking 2 Inch Roll Forming Machine Florida

•
•
•
•

The Composite Decking 2-Inch Roll Forming Machine is designed to manufacture composite decking profiles used in construction projects, such as flooring systems in commercial and industrial buildings. This machine ensures precise shaping of 2-inch composite deck profiles, which enhance structural strength and durability. Engineered for high efficiency and accuracy, it’s an ideal solution for large-scale production in Florida’s competitive construction and building materials market.

The machine incorporates advanced technology to streamline operations, including automated controls for precision and high-speed production. Its robust design allows it to handle various materials such as galvanized steel, aluminum, and other metals, ensuring versatility and long-term performance.

Specifications

1. Material Capability
   • Material Type: Galvanized steel, aluminum, and other compatible metals.
   • Material Thickness: 0.8 mm – 1.5 mm.
   • Coil Width: 1000 mm – 1250 mm.
   • Yield Strength: Up to 350 MPa.
2. Machine Components

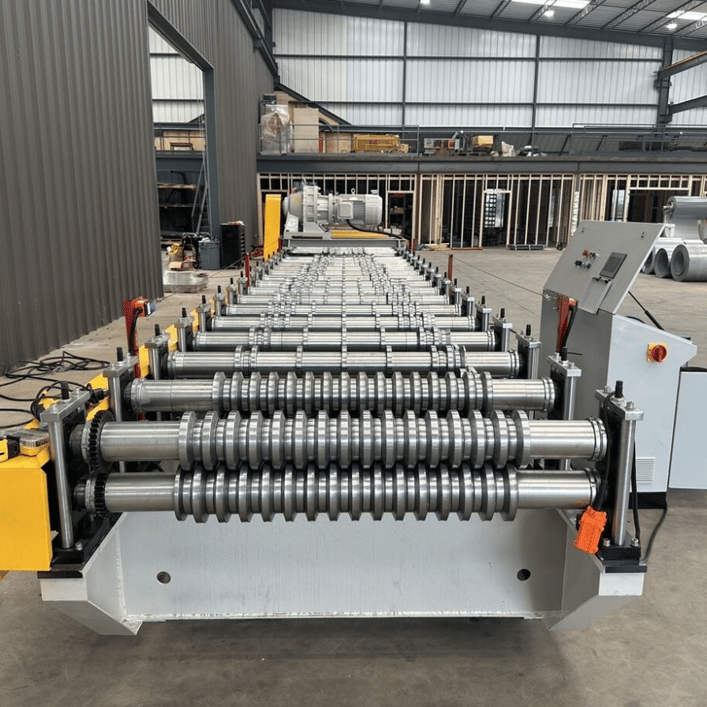

   • Rollers: High-grade steel with chrome plating for durability and precision.
   • Frame: Welded steel structure to reduce vibration and enhance stability.
   • Drive System: Chain or gear-driven for consistent performance.
   • Cutter: Hydraulic cutting system with hardened steel blades for clean cuts.
   • PLC System: User-friendly control panel with touch-screen interface.

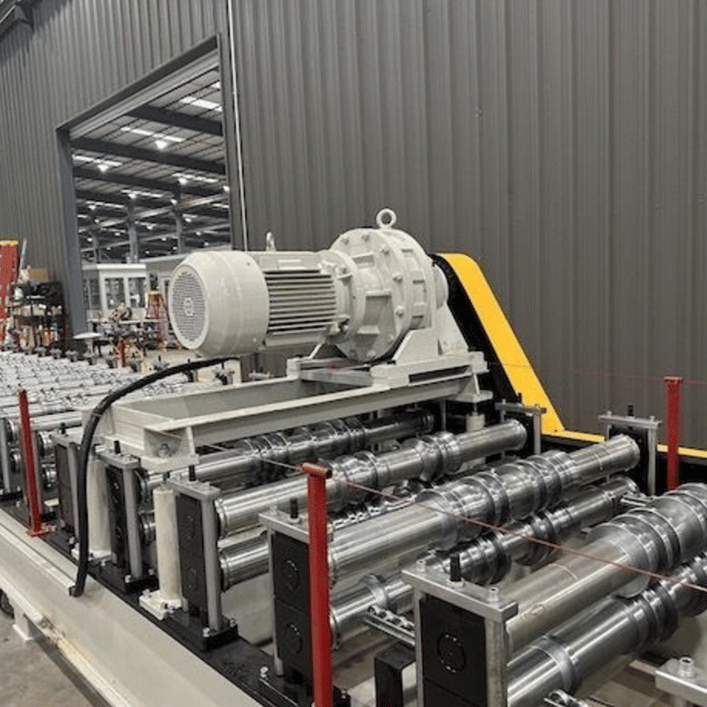

   • Motor Power: 15-20 kW, depending on model specifications.
   • Hydraulic Station Power: 5.5 kW.
3. Performance
   • Machine Speed: Up to 15-20 meters per minute.
   • Profile Accuracy: ±0.5 mm.
   • Production Capacity: 2000-5000 square feet per day, based on operational hours.
4. Optional Extras
   • Automatic stacker for efficient material handling.
   • Remote PLC system for troubleshooting and monitoring.
   • Leveling system for accurate material feeding.
   • Coil car for easy loading and unloading of heavy coils.

Setup and Installation

• Installation Requirements:
  • Power Supply: 380V, 3-phase, 50/60Hz.
  • Floor Space: Minimum 15m x 3m for machine operation and material storage.
  • Skilled operators for initial setup and maintenance.
• Timeframe: Installation and commissioning typically require 2-3 days, depending on facility conditions.

Maintenance

1. Regular lubrication of moving parts such as rollers and chains.
2. Inspection and replacement of worn rollers and cutter blades.
3. Cleaning the machine to prevent metal dust and debris accumulation.
4. Periodic software updates for the PLC system.

Question and Answer Section

Q1: What materials are compatible with the Composite Decking 2-Inch Roll Forming Machine?
A1: The machine works with galvanized steel, aluminum, and other metals, provided they meet the required thickness and yield strength specifications.

Q2: How can I ensure the machine is suitable for Florida’s climate and power supply?
A2: The machine is built to operate in various environments. Ensure the power supply matches the required 380V, 3-phase standard. Consider optional enclosures for outdoor setups.

Q3: What is the production capacity of this machine?
A3: The machine can produce 2000-5000 square feet of composite decking daily, depending on operational hours and material type.

Q4: Can I use this machine for other decking profiles?
A4: Yes, with customized rollers and settings, the machine can produce a variety of decking profiles.

Q5: What optional features are available to enhance productivity?
A5: Optional features include automatic stackers, coil cars, and remote PLC systems for easier operation and monitoring.

Q6: How long does it take to set up and install the machine?
A6: Installation and commissioning typically take 2-3 days with proper preparation and assistance from skilled operators.

Q7: Is financing or leasing available in Florida?
A7: Financing or leasing options may be available through local distributors or manufacturers. Contact the supplier for detailed terms and conditions.

Q8: How do I maintain consistent quality in production?
A8: Regular maintenance, proper material handling, and precise setup of the rollers and PLC system are key to maintaining consistent quality.
