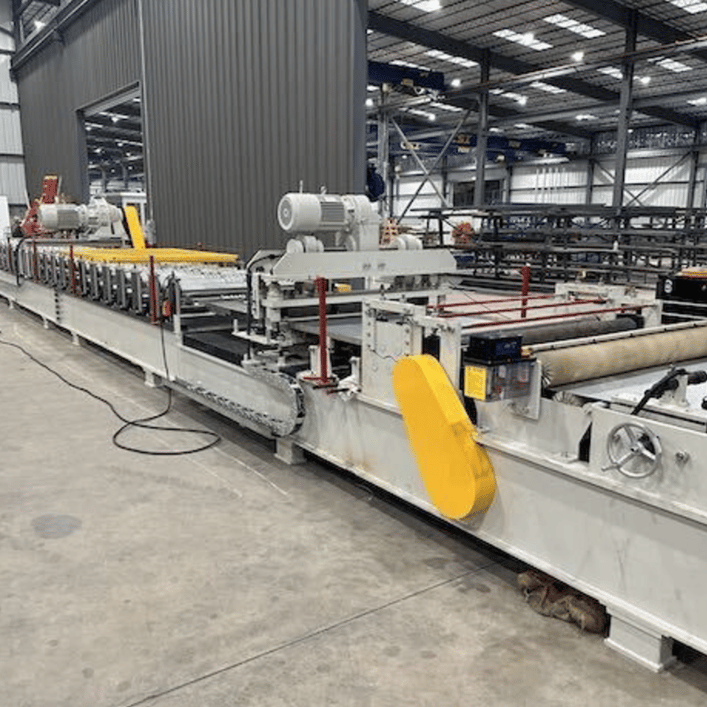

Composite Decking 3 Inch Roll Forming Machine Florida

The Composite Decking 3-inch roll forming machine is designed for precision manufacturing of composite decking panels, widely used in construction projects such as commercial buildings, residential complexes, and industrial facilities. This machine is a highly efficient, automated solution, providing consistent output with minimal labor intervention. It is tailored to meet the specific needs of the Florida construction market, where weather resistance, strength, and aesthetic appeal are crucial for decking materials.

Machine Description

The Composite Decking 3-inch roll forming machine is engineered to create decking profiles with a 3-inch rib height, ensuring excellent structural integrity and load-bearing capacity. Its robust construction and advanced technology make it suitable for continuous operation in high-demand manufacturing environments.

The machine produces decking panels with precise dimensions and a high-quality finish, reducing waste and enhancing installation efficiency. The output profiles are designed to resist environmental challenges such as humidity, salt air, and UV exposure, which are common in Florida's climate.

Specifications

Here are the detailed specifications of the Composite Decking 3-inch roll forming machine:

Machine Dimensions and Structure

• Machine Length: 10-15 meters
• Machine Width: 1.5-2.0 meters
• Machine Height: 1.8-2.5 meters
• Machine Weight: 10,000-12,000 kg
• Frame Material: Heavy-duty steel, welded and stress-relieved
• Coating: Anti-corrosion paint suitable for humid environments

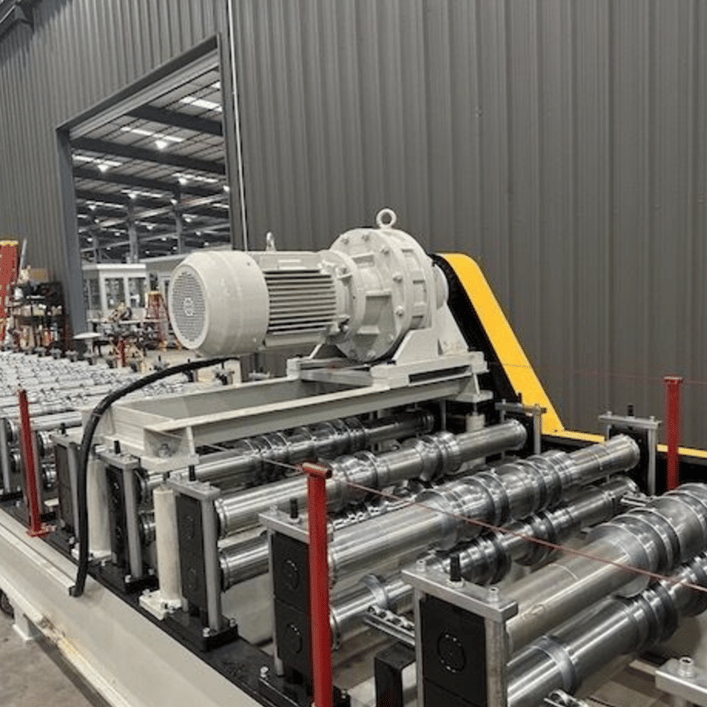

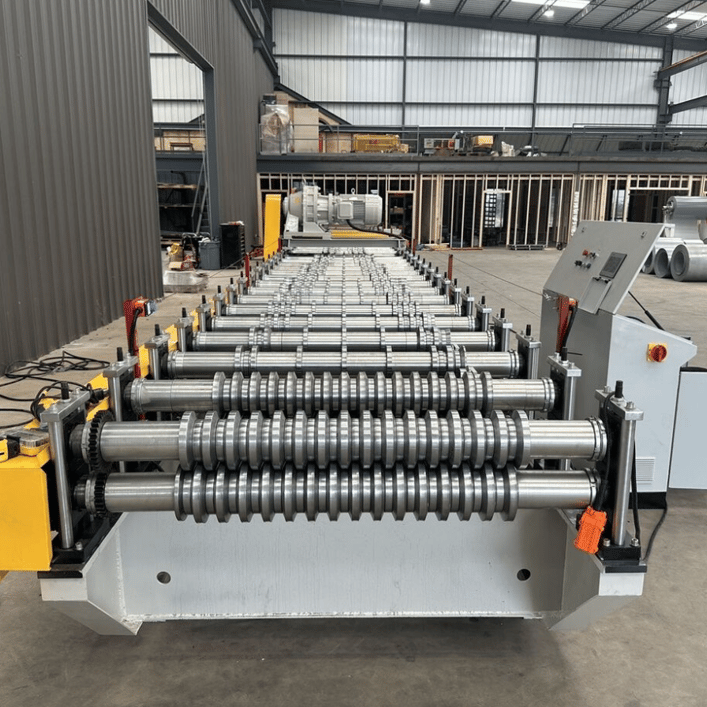

Roller System

• Roller Material: Chromium-coated steel (HRC 58-62)
• Number of Rollers: 16-24 stations (based on profile complexity)
• Shaft Diameter: 75 mm
• Roller Design: CNC-machined for precision

Power and Drive

• Main Motor Power: 15-20 kW
• Hydraulic Station Power: 7.5 kW
• Voltage: 220V/380V/440V, 50/60 Hz (customizable for Florida standards)
• Drive System: Chain or gear-driven

Decking Profile

• Rib Height: 3 inches
• Material Thickness: 0.8-1.2 mm
• Material Type: Galvanized steel, aluminum, or composite materials
• Width: Adjustable, typically 600-1200 mm

Cutting System

• Cutting Method: Hydraulic cutting
• Blade Material: High-speed steel (HSS)
• Cutting Accuracy: ±1 mm

Control System

• PLC System: Siemens or Mitsubishi
• Touch Screen Interface: User-friendly interface for easy operation
• Language Options: English, Spanish (for Florida market)
• Automation: Fully automated with manual override options

Machine Speed

• Production Speed: 10-15 meters per minute
• Speed Control: Variable frequency drive (VFD)

Safety Features

• Safety Guards: Full enclosures for rollers and cutting area
• Emergency Stops: Multiple emergency stop buttons
• Overload Protection: For motors and hydraulics

Additional Features

• Optional Add-Ons: Automatic stackers, remote PLC control, embossing system
• Coil Loading Capacity: Up to 5 tons
• Decoiler: Manual or automatic, with hydraulic expansion

Questions and Answers

Q1: What materials can the Composite Decking 3-inch roll forming machine handle?

A: The machine is designed to process galvanized steel, aluminum, and composite materials, ensuring versatility for Florida's diverse construction needs.

Q2: Is the machine suitable for outdoor operations in Florida?

A: Yes, the machine's anti-corrosion coating and robust design make it suitable for operation in humid and coastal areas like Florida.

Q3: How can the machine accommodate Florida’s power supply standards?

A: The machine's voltage and frequency settings are customizable to match Florida’s standards (220V/60 Hz or 440V/60 Hz).

Q4: Can the machine handle custom profile designs?

A: Absolutely. The rollers can be CNC-machined for custom decking profiles as per client requirements.

Q5: What are the maintenance requirements for this machine?

A: Routine maintenance includes lubrication of moving parts, inspection of rollers and blades, and periodic electrical checks. Detailed guidelines are provided in the user manual.

Q6: How is the machine shipped to Florida?

A: The machine is shipped in modular sections, securely packed for sea or road transport. Installation and commissioning support can be provided on-site.

Q7: What is the average lead time for production?

A: The average lead time for manufacturing and delivery is 8-12 weeks, depending on customizations.
