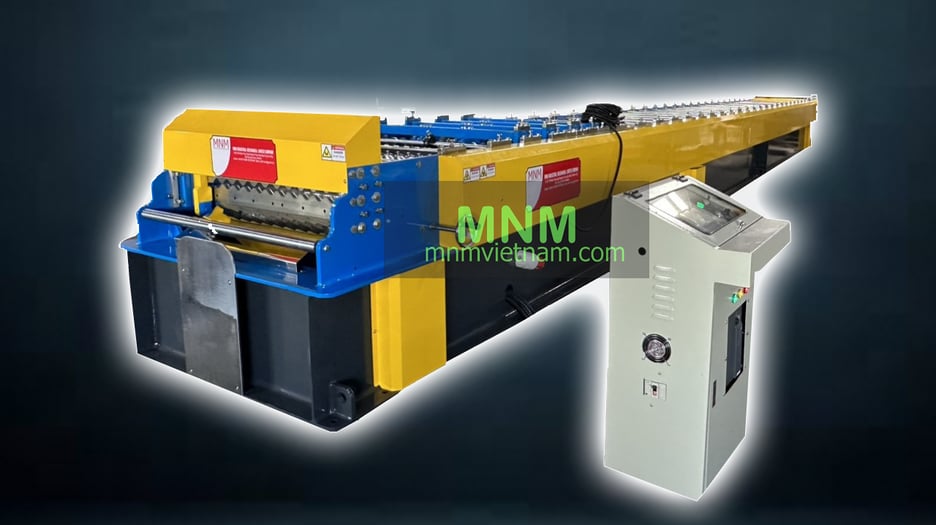

Corrugated / 11-Rib Metal Roofing Roll Forming Machine | MNM, Binh Duong, Vietnam

MNM's Corrugated Roll Forming Machine produces corrugated roof and wall sheeting, including the 11-rib (11-line) profile popular in Vietnam and South-East Asia.

It runs at up to 32 m/min with 29 to 32 forming stations and is configured to the customer's corrugation and sheet width.

Technical Specifications

• Total power: 7.5–18.5 kW
• Weight: 10–12 t
• Rolling speed: 20–32 m/min
• Forming stations: 29–32
• Shaft diameter: Ø70 mm

Applications

• Corrugated roofing for housing, farms and factories
• Wall cladding
• Roofing suppliers in South-East Asia

Commercial Details

• Brand: MNM
• Manufacturer: MNM Industrial Mechanical Limited Company
• Place of origin: Thuan An City, Binh Duong, Vietnam

Frequently Asked Questions

• Which corrugated profiles can it make? Standard corrugated and 11-rib profiles, or your own to drawing.
• How fast is it? 20–32 m/min.
• What should I send for a quotation? Your profile drawing, material and thickness, coil width and output target.
