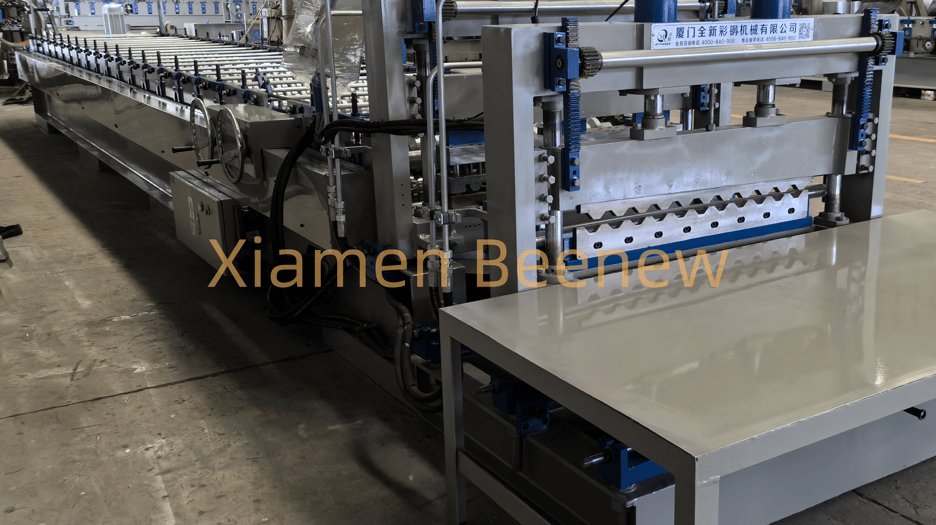

Corrugated Metal Planter / Flower Pot Roll Forming Machine | Beenew, Xiamen, China

Beenew's Metal Wave Flower Pot Roll Forming Machine forms corrugated metal sheet for planters and flower pots, then punches and cuts it ready for assembly. The machine can be adjusted for different wave patterns and sizes.

Automated forming gives uniform panels with little waste, and the controls are simple enough for new operators.

Key Features

• Corrugated wave profile for planter walls
• Adjustable for different wave patterns and sizes
• Hydraulic punching and cutting
• GCr15 rollers on 75/95 mm shafts

Technical Specifications

• Driving motor: 2 × 15 kW
• Forming stations: 20
• Rollers: GCr15
• Shafts: 45# steel, 75/95 mm
• Hydraulic motor: 7.5 kW
• Cutting: Hydraulic cutting and punching, ±2 mm
• Control: PLC; Siemens, Delta, Omron or Schneider electrics
• Dimensions: 10,500 × 1,150 × 1,450 mm
• Power supply: 380 V/50 Hz/3-phase or to order

Applications

• Corrugated metal raised beds and planters
• Garden centre and landscaping products

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• Can it make different sizes? Yes. Wave pattern and size can be adjusted.
• Does it punch the panels? Yes. Punching and cutting are hydraulic.
• How big is the machine? About 10.5 m long, 1.15 m wide and 1.45 m high.
• What should I send for a quotation? Your planter panel drawing, material and thickness, and output target.
