Corrugated Metal Roofing Roll Forming Machine, Flying Cut | Beenew, Xiamen, China

Beenew's Metal Roofing Roll Forming Machine is a popular design for corrugated roofing sheets in pre-painted steel. It adjusts to feed widths of 915, 1,000 and 1,220 mm, and a hydraulic flying cut cuts the sheets to length.

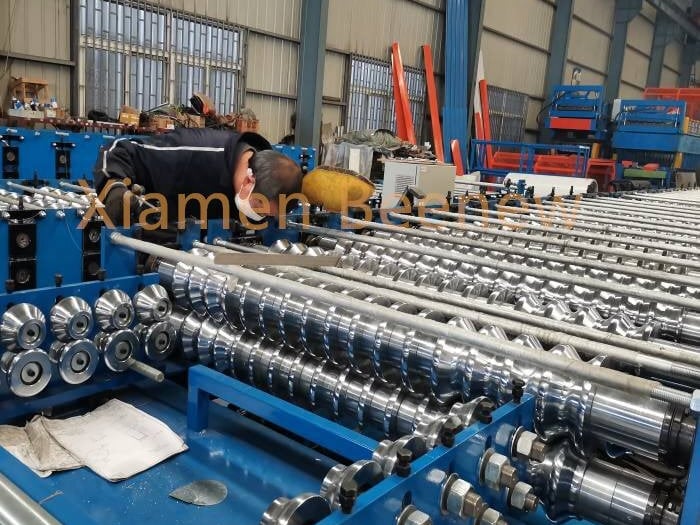

The forming rollers are hard-chromed steel on 75 mm shafts, driven by a 7.5 kW motor, with a separate hydraulic motor for the cut.

Key Features

• Feed widths of 915, 1,000 and 1,220 mm
• Hydraulic flying cut
• Hard-chromed forming rollers
• PLC control, ±2 mm cut length

Technical Specifications

• Driving motor: 7.5 kW
• Forming stations: 18
• Rollers: 45# steel, hard chrome
• Shafts: 45# steel, 75 mm
• Pump motor: 4 kW
• Frame: Welded wall
• Cutting: Hydraulic flying cut, ±2 mm
• Control: PLC; Siemens, Delta, Omron or Schneider electrics
• Dimensions: 11,500 × 1,550 × 1,750 mm
• Power supply: 380 V/50 Hz/3-phase or to order

Applications

• Corrugated roofing for housing and farm buildings
• Wall cladding for warehouses and workshops

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• Which feed widths can it take? 915, 1,000 and 1,220 mm.
• How is the sheet cut? By a hydraulic flying cut.
• How many forming stations are there? 18.
• What should I send for a quotation? Your sheet profile drawing, material and thickness, feed width and output target.
