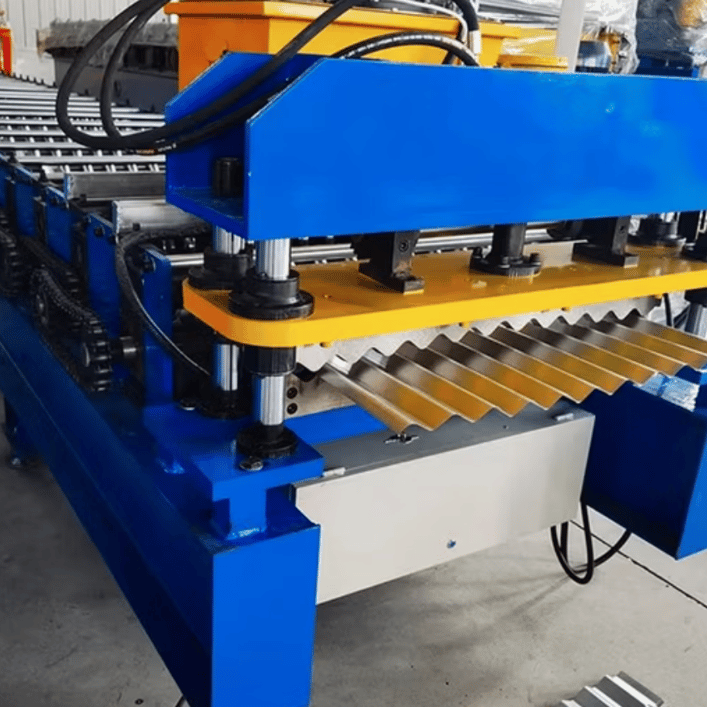

Corrugated Roof Roll Forming Machine – Albania
The Corrugated Roof Roll Forming Machine in Albania is a high-efficiency production line designed to manufacture corrugated metal roofing sheets from galvanized, galvalume, or pre-painted steel coils. These panels are widely used in residential, commercial, industrial, and agricultural buildings, offering superior durability, weather resistance, and easy installation.
At Machine Matcher, every corrugated roof roll former is custom-built to your required profile, coil width, and gauge. Each machine integrates PLC automation, precision-ground rollers, hydraulic cutting, and automatic length control for consistent accuracy and long-term reliability.
As Albania’s construction and manufacturing sectors expand — particularly in Tirana, Durrës, and Shkodër — locally produced corrugated panels are in growing demand. Machine Matcher supplies fully tested, export-ready machines that help roofing companies, metal sheet distributors, and construction suppliers boost productivity and reduce costs.
All systems come with operator training, installation guidance, and 24/7 technical support from our international engineering team.
Machine Technical Specifications
| Specification | Details |
|---|---|
| Machine Type: | Corrugated Roof Roll Forming Machine |
| Production Speed: | 15–45 m/min (depending on material and automation level) |
| Material Thickness Range: | 0.3–0.8 mm |
| Material Width Range: | 914–1250 mm |
| Material Types: | Galvanized Steel (GI), Galvalume (AZ), Pre-painted Steel (PPGI), Aluminum |
| Material Yield Strength: | 235–550 MPa |
| Roller Material: | GCr15 bearing steel, heat-treated and chromed |
| Roller Surface Treatment: | Hard chrome plating and precision polishing |
| Number of Forming Stations: | 16–24 stations (depending on profile depth) |
| Roller Shaft Diameter: | 70–85 mm |
| Shaft Material: | 45# precision-ground steel |
| Main Drive Type: | Gearbox or chain drive |
| Power (Albania): | 400 V / 50 Hz / 3 Phase |
| Motor Power: | 7.5–15 kW |
| Cutting Method: | Hydraulic post-cut system or flying shear |
| Blade Material: | Cr12MoV, heat-treated for durability |
| Control Type: | PLC with touchscreen HMI (Delta, Siemens, or Mitsubishi) |
| Operating Mode: | Fully automatic with manual backup |
| De-coiling System: | 3–10 ton manual or hydraulic uncoiler |
| Machine Frame: | 350–400 H-beam welded base, stress-relieved |
| Thickness of Frame Steel: | 16–20 mm |
| Profile Shape: | Traditional corrugated roofing or customized wave design |
| Profile Width and Depth: | Width: 800–1100 mm; Depth: 15–25 mm |
| Length Tolerance: | ±1 mm/m |
| Safety Features: | E-stop, overload protection, and protective guards |
| Protective Covers/Guards: | Transparent polycarbonate safety covers |
| Emergency Stop Button: | Multiple locations (entry, exit, control panel) |
| Overload Protection System: | Built into drive motor and hydraulic circuit |
Optional Add-ons and Upgrades
- Automatic stacking and counting system
- Servo feeder and encoder synchronization
- Hydraulic notching and pre-punching station
- Remote PLC monitoring (Ewon or PLCRemote)
- Coil car and hydraulic coil tilter
- Safety enclosure with sound insulation
- Dual-level roll former for multiple profiles
- Pre-leveling and feeding section for improved accuracy
- Quick-change roller system for different corrugation types
- Automatic lubrication and cleaning system
All machines are manufactured new, tested under load, and delivered with installation manuals, wiring diagrams, and test videos.
Corrugated Roof Profile Description
Corrugated roofing panels are among the most traditional and widely used metal roofing profiles worldwide. Their wave-like design provides exceptional strength, drainage, and load-bearing capacity while maintaining a lightweight structure.
Profile Dimensions
- Effective width: 800–1100 mm
- Wave height: 15–25 mm
- Material thickness: 0.3–0.8 mm
- Coil width: 914–1250 mm
Profile Variants
- Standard corrugated panel: 76/18, 76/25, or 32/1000 type
- Mini-corrugated: For small cladding or wall panels
- Deep-corrugated: For heavy-duty industrial roofing
Material Options
- Galvanized Steel (GI): Most economical and durable
- Pre-painted Steel (PPGI): Aesthetic and corrosion-resistant
- Aluminum: Lightweight and weatherproof
- Galvalume (AZ): Ideal for coastal or high-humidity areas
Industries and Applications in Albania
Corrugated roof panels are used throughout Albania in:
- Residential roofing (urban housing and rural projects)
- Commercial and industrial warehouses
- Agricultural buildings and greenhouses
- Factories, workshops, and storage units
- Temporary construction shelters and sheds
- Infrastructure projects and industrial parks
With rising urban and industrial development in Tirana, Elbasan, and Vlora, the market for locally manufactured metal roofing continues to grow. Machine Matcher helps Albanian fabricators establish efficient, high-output lines that reduce dependence on imported sheets.
Setup and Installation
Each corrugated roof forming machine arrives pre-assembled, tested, and packaged for export.
Installation Process
- Foundation setup — Position and level the main frame.
- Electrical connection — Connect the control cabinet and main drive.
- Hydraulic setup — Connect the power pack to the cutting system.
- Trial production — Run sample coils to fine-tune forming alignment.
Machine Matcher offers:
- Remote setup support (video and PLC link)
- On-site commissioning in Albania and neighboring regions
- Full operator and maintenance training
Maintenance and Support
Routine maintenance ensures reliable performance and long lifespan.
Daily
- Clean rollers and guides.
- Inspect sensors and encoder alignment.
Weekly
- Check hydraulic oil and lubrication points.
- Tighten bolts and verify roller stability.
Monthly
- Inspect cutting blades and change if dull.
- Examine chain tension and motor couplings.
Yearly
- Re-align roller stations.
- Replace hydraulic seals and filters.
Machine Matcher provides:
- Preventive maintenance plans
- Remote technical support and diagnostics
- OEM spare parts (rollers, blades, bearings)
- 24-hour international service assistance
Machine Pricing
Corrugated roof roll forming machine prices depend on speed, automation, and profile configuration.
| Model | Configuration | Approx. Price (USD) |
|---|---|---|
| Entry-Level Model | Manual uncoiler, post-cut, standard PLC | $40,000 – $60,000 |
| Mid-Range Model | Hydraulic uncoiler, servo feeding, flying shear | $60,000 – $85,000 |
| High-End Model | Full servo system, automatic stacker, remote PLC | $85,000 – $120,000+ |
Each quote includes:
- Custom profile design
- Test video before shipment
- Export packaging and documentation
- Optional installation and training services
Countries & Markets Served
Machine Matcher supplies corrugated roof roll forming machines across:
- Albania
- Kosovo
- North Macedonia
- Greece
- Italy
- Turkey
- United Kingdom
- Middle East and Africa
All machines comply with CE and ISO standards, ensuring reliability, global compatibility, and long-term performance.
Why Choose Machine Matcher
- Custom-built machines for your profile and coil specification
- 24/7 technical support and remote PLC diagnostics
- CE-certified manufacturing and components
- Experienced installation and service teams across Europe
- Full pre-shipment testing and inspection
- Access to spare parts and maintenance services
- Offices in the UK, USA, and Middle East for global coverage
Machine Matcher delivers turnkey roll forming solutions that allow manufacturers to produce top-quality roofing sheets with minimal downtime.
Frequently Asked Questions
Q1: What is a corrugated roof roll forming machine?
A: It’s a continuous production system that forms metal coils into corrugated roofing panels through a series of roller stations, ensuring consistent shape and high speed.
Q2: What materials are best for use in Albania?
A: Galvanized and pre-painted steel are ideal due to Albania’s mixed climate and cost-efficiency. Galvalume is preferred in coastal regions for corrosion resistance.
Q3: Can the same machine make different corrugation sizes?
A: Yes, we can provide interchangeable tooling or custom-adjustable roller sets for multiple corrugation types.
Q4: How long does installation take?
A: Typical setup, calibration, and training take 3–5 working days.
Q5: What’s the machine lifespan?
A: With regular maintenance, the machine can operate reliably for 15–20 years or more.
Q6: What support does Machine Matcher provide?
A: We offer remote PLC support, spare parts supply, training, and preventive maintenance contracts.
