Corrugated Roof Tile Making Machine | Beenew, Xiamen, China

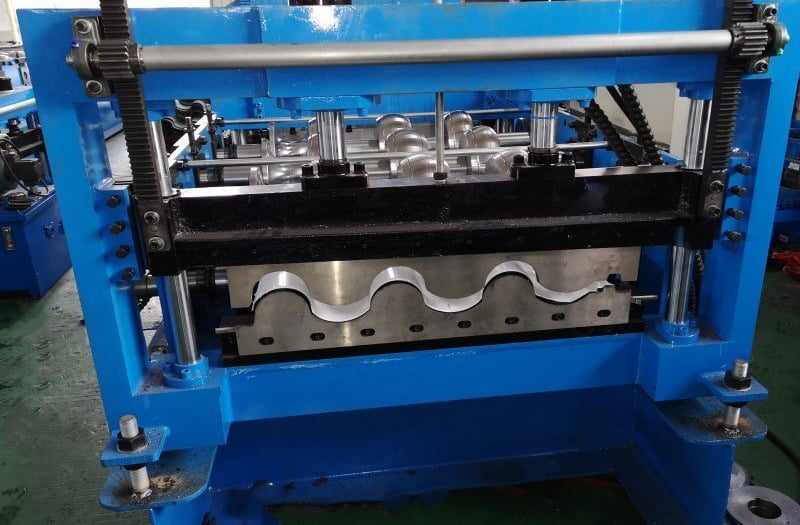

Beenew's Corrugated Roof Tile Making Machine roll forms and presses continuous tile-effect roof sheets. After forming, a hydraulic press puts in the steps, with the step length adjustable from 200 to 400 mm, and cuts the sheets to length.

It takes 0.3–0.6 mm PPGI or aluminium-zinc coated coil at a 1,220 mm feed width and runs at about 4–6 m/min.

Key Features

• Adjustable step length and profile depth
• 5 t hydraulic uncoiler
• Hard-chromed 45# steel rollers on 75 mm shafts
• Hydraulic step pressing and cutting in one unit
• PLC control of tile length, cut length and quantity

Technical Specifications

• Material: PPGI or aluminium-zinc coated coil, 0.3–0.6 mm
• Feed width: 1,220 mm
• Uncoiler: 5 t hydraulic, coil width up to 1,250 mm, ID 470–540 mm, OD up to 1,300 mm, 2.2 kW
• Forming stations: 16, gear/sprocket drive
• Rollers: 45# steel, CNC-turned, hard chrome
• Shafts: 75 mm, precision-machined
• Main motor: 7.5 kW, frequency speed control
• Forming speed: About 4–6 m/min
• Step pressing: Hydraulic, step depth 14 mm
• Tile length: 200–400 mm
• Cutting: Hydraulic, Cr12 heat-treated, 5.5 kW pump, up to 12 MPa
• Length tolerance: ±2 mm

Applications

• Tile-effect metal roofing for houses and villas
• Commercial and residential roofing

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• Can the step length be changed? Yes, from 200 to 400 mm.
• How deep is each step? 14 mm.
• How fast is it? About 4–6 m/min.
• What should I send for a quotation? Your tile profile drawing, material and thickness, step length and output target.
