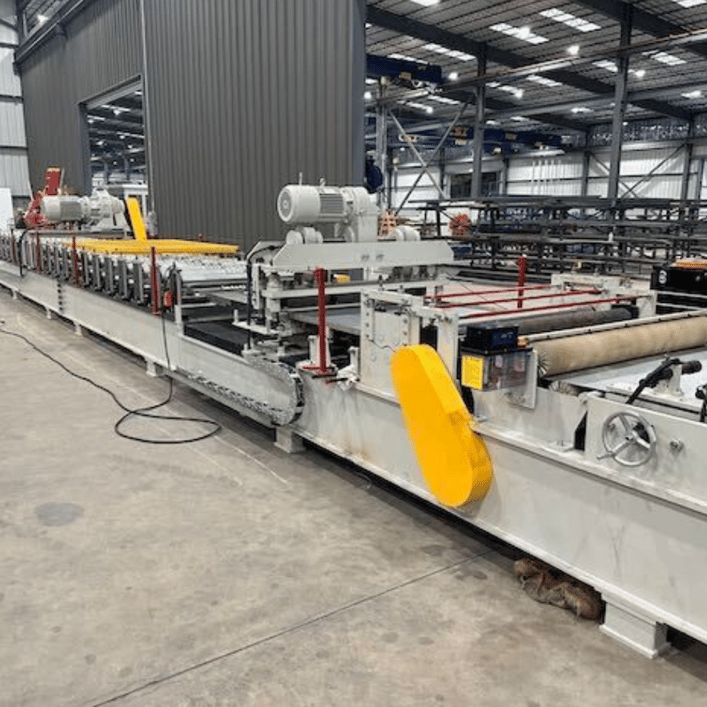

Corrugated Stainless Steel Floor Deck Roll Forming Machine Connecticut

Corrugated Stainless Steel Floor Deck Roll Forming Machine – Connecticut, USA

Machine Matcher proudly offers a Corrugated Stainless Steel Floor Deck Roll Forming Machine, custom-built for customers in Connecticut, USA, and tailored to meet the high demands of commercial and industrial construction projects. This machine is engineered to produce high-quality corrugated stainless steel floor decking for multi-story buildings, warehouses, mezzanines, and other structural floor systems where strength, durability, and precision are critical.

Whether you're manufacturing standard floor deck profiles or require custom-built designs, this floor decking line provides the versatility, speed, and robustness your operation needs. With local support services available in the USA and direct delivery to your facility in Connecticut, this machine ensures smooth integration into your production.

Machine Description

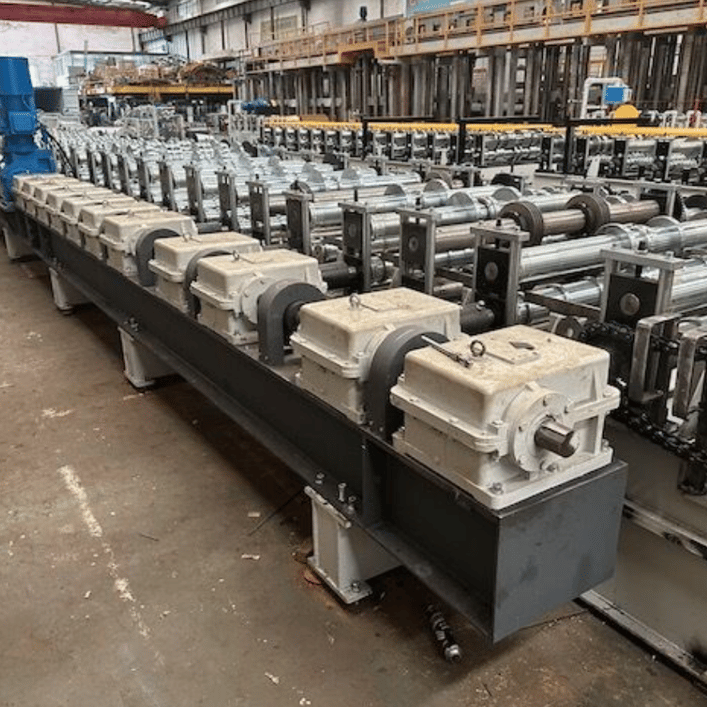

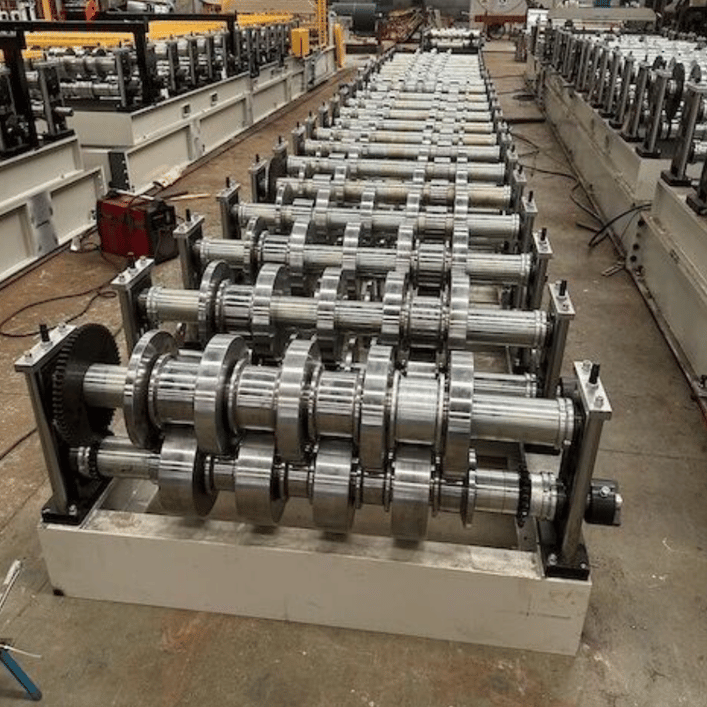

This machine forms corrugated stainless steel floor deck profiles from 18 to 22 gauge material at speeds over 60 feet per minute. Designed with 28 forming stations, a pre-flying shear cutting system, and gearbox and chain drive, this machine delivers consistent, high-performance output for large-scale production runs.

Whether you are producing standard 1.5” B deck, 3” N deck, composite metal decks, or form decks, or if your projects demand custom profiles, this machine can be built to your precise specifications. Customers may choose between fixed base or cassette-type frame designs for increased flexibility in tooling changes.

An integrated 15,000lb uncoiler with hydraulic coil car ensures smooth coil loading and feeding, and optional auto stackers are available for streamlined post-processing and handling.

Specifications

• Available Profiles: 1.5" B Deck, 3" N Deck, Composite Metal Deck, Steel Form Deck, Custom Profiles Available
• Frame Type: Fixed Base or Cassette Machine
• Optional Extras: Auto Stacker, Safety Covers
• Forming Speed: 60+ feet per minute
• Material Thickness: 18 gauge to 22 gauge stainless steel
• Stations: 28
• Motor Power: 32 HP
• Drive System: Gearbox and Chain Drive
• Main Power: 480V / 3 Phase / 60Hz (Standard for USA)
• Cutting Type: Pre-Flying Shear
• Machine Weight: Approx. 20 tons
• Machine Footprint: Approx. 85 ft
• Safety Features: Emergency Stops, Optional Full Safety Covers
• Uncoiler: 15,000 lb capacity with hydraulic coil car
• Condition: Brand New
• Build & Shipping: Custom-built, shipped directly to customer location from manufacturing partner
• Warranty: 1-Year Warranty from Dispatch
• Support: Full service, maintenance, repair, and machine setup provided by Machine Matcher

Industries and Applications

This roll forming machine is ideal for manufacturers serving:

• Commercial Construction
• Industrial Building Projects
• Multistory Steel Frame Structures
• Infrastructure & Institutional Buildings
• Pre-Engineered Metal Building (PEMB) Construction

The stainless steel floor deck produced with this machine offers fire resistance, corrosion resistance, and structural strength, making it ideal for long-span applications and high-load-bearing requirements in both interior and exterior construction projects.

Customization and Ordering

All machines are custom-built according to your profile, material, and production specifications. Pricing varies based on configuration and optional equipment. If you have a profile drawing, material specs, or special requirements, send details to [email protected] for an accurate quote and production plan.

Frequently Asked Questions

Q: Can this machine produce more than one profile?

A: Yes, the machine can be built to handle multiple profiles using either a cassette-type design or custom tooling change systems.

Q: Is the machine suitable for other metals besides stainless steel?

A: Yes, while this machine is configured for stainless steel in this case, it can be adapted to work with galvanized steel, aluminum, and other materials upon request.

Q: Do you offer setup and training in Connecticut?

A: Yes. Machine Matcher offers full machine setup, adjustment, and training services locally in the USA, including Connecticut.

Q: What’s included in the one-year warranty?

A: The warranty covers all core machine components, with maintenance and repair support available through Machine Matcher.

Q: What’s required to receive a quote?

A: To provide the most accurate quote, please send your desired profile drawing, material thickness, coil width, production volume, and any other relevant information to [email protected].

For more information or to request a tailored quote for your floor deck production in Connecticut, contact Machine Matcher today. We help connect manufacturers with the right roll forming machines across the globe.
