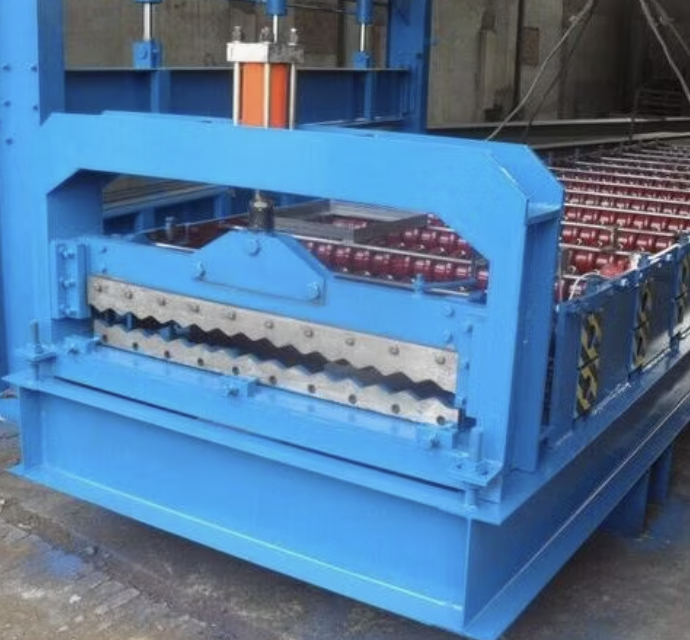

Corrugator Roll Forming Machine Croatia

A Corrugator Roll Forming Machine is a highly efficient and automated machine designed for the production of corrugated metal sheets. These sheets are widely used in roofing, cladding, and siding applications due to their strength, durability, and weather resistance. The machine uses a series of precisely crafted rollers to form metal coils into corrugated profiles of various designs, ensuring accuracy and consistency.

This machine is an essential tool in industries such as construction, agriculture, and storage. It is particularly suited for large-scale production environments where speed, reliability, and customization are priorities.

Key Features of a Corrugator Roll Forming Machine

1. Automation: Fully automated with a PLC control system for easy operation and precision.
2. Customization: Configurable for different corrugated profiles and sheet sizes.
3. High Efficiency: Capable of producing large volumes with minimal downtime.
4. Durability: Constructed with robust materials to ensure long-term use in industrial environments.
5. Versatility: Suitable for various materials, including galvanized steel, aluminum, and pre-painted steel.

Specifications of Corrugator Roll Forming Machine

1. Roller Material: High-grade chrome-plated steel rollers for durability and precision.
2. Number of Rollers: 16–24 stages (depending on profile complexity).
3. Profile Type: Corrugated (with adjustable wave height and pitch).
4. Material Thickness: 0.3 mm to 0.8 mm.
5. Material Width: 1000 mm to 1250 mm (customizable).
6. Material Type: Galvanized steel, pre-painted steel, or aluminum.
7. Motor Power: Main motor (7.5–15 kW) and hydraulic motor (3–5 kW).
8. PLC System: Touchscreen interface with programmable settings for various profile dimensions.
9. Machine Speed: 15–20 meters per minute.
10. Cutting System: Hydraulic cutting with high-precision steel blades.
11. Frame Structure: Heavy-duty steel frame for stability during operation.
12. Power Supply: 380V/50Hz (customizable for Croatian standards).
13. Optional Add-ons: Automatic stackers, coil handling systems, and pre-cut or post-cut options.

Applications of Corrugated Sheets in Croatia

Corrugated sheets produced by the machine are used extensively in:

• Roofing for residential, commercial, and industrial buildings.
• Agricultural storage facilities such as barns and silos.
• Cladding for walls and ceilings.
• Protective fencing and gates.
• Temporary shelters for construction sites.

FAQs About Corrugator Roll Forming Machine

1. What profiles can the machine produce?

The Corrugator Roll Forming Machine is designed to produce standard corrugated profiles with adjustable wave height and pitch. Custom profiles can be created by modifying the roller design.

2. What materials can the machine handle?

It is compatible with galvanized steel, aluminum, and pre-painted steel sheets. The material thickness typically ranges from 0.3 mm to 0.8 mm.

3. Is the machine suitable for use in Croatia's power supply?

Yes, the machine can be customized to match Croatia’s standard power supply of 230V/50Hz or 380V/50Hz.

4. How much space is required to install the machine?

The installation area required depends on the model and configuration, typically ranging from 10 to 15 meters in length and 2 to 3 meters in width.

5. How is maintenance handled?

Routine maintenance includes:

• Cleaning and lubricating rollers and cutters.
• Checking hydraulic and motor systems for wear and tear.
• Regular software updates and inspections.

6. How long does it take to set up the machine?

Setup and installation generally take 3–5 days, including calibration and testing.

7. What is the delivery time for a machine ordered in Croatia?

The delivery time varies based on production and shipping logistics, typically 4–6 weeks.

8. Can the machine accommodate custom profile designs?

Yes, the rollers can be customized to produce unique profile designs according to specific requirements.

9. How is operator training provided?

Most suppliers provide on-site training during installation, along with a detailed operation manual.

10. What warranties are offered with the machine?

Standard warranties range from 12 to 24 months, covering manufacturing defects and component malfunctions.

Why Choose a Corrugator Roll Forming Machine for Croatia?

The construction industry in Croatia is growing rapidly, with an increasing demand for durable and weather-resistant materials. A Corrugator Roll Forming Machine offers:

• Cost-effective production of high-quality roofing sheets.
• The ability to meet diverse profile requirements.
• Adaptability to Croatia’s construction needs and climatic conditions.
