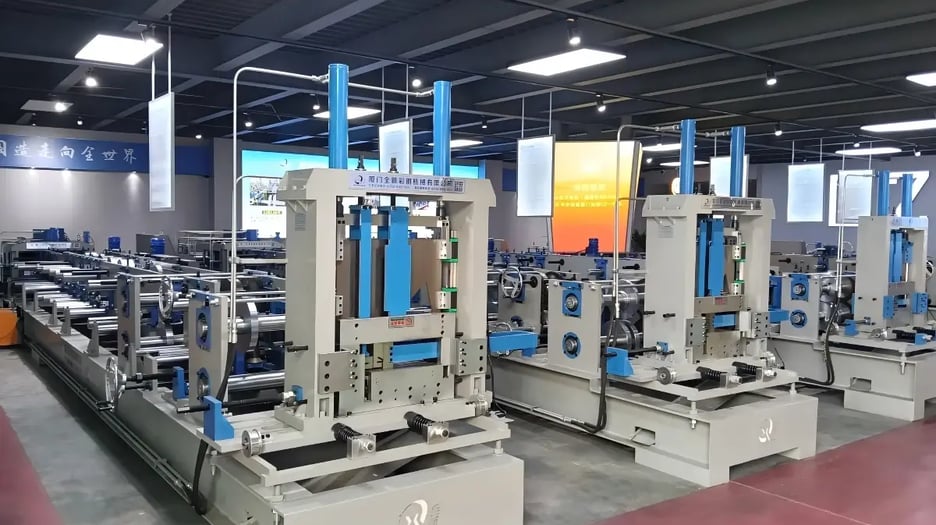

CZ Purlin Machine C100–300 / Z140–300 | Beenew, Xiamen, China

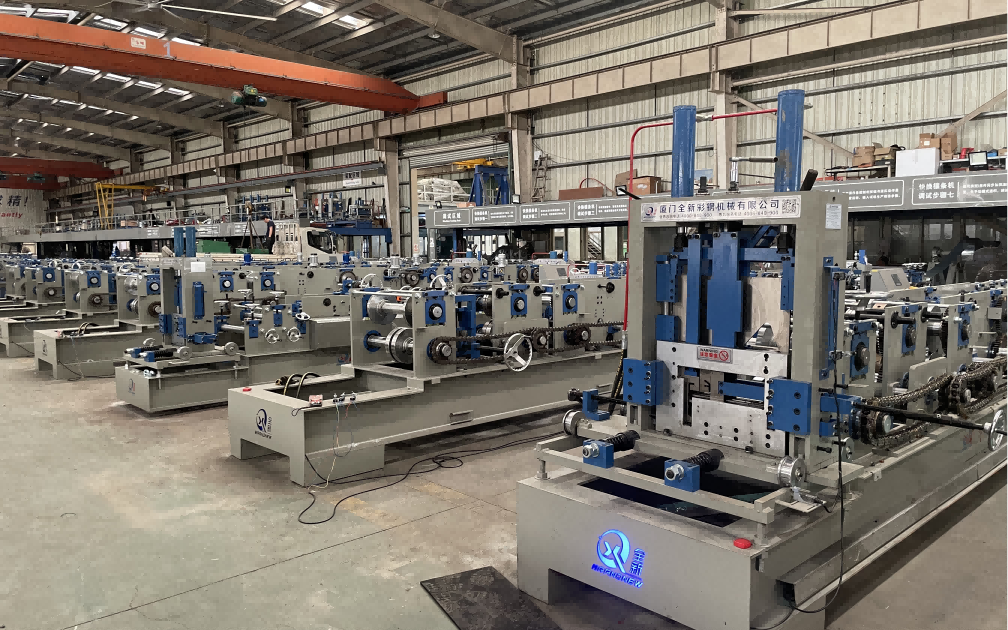

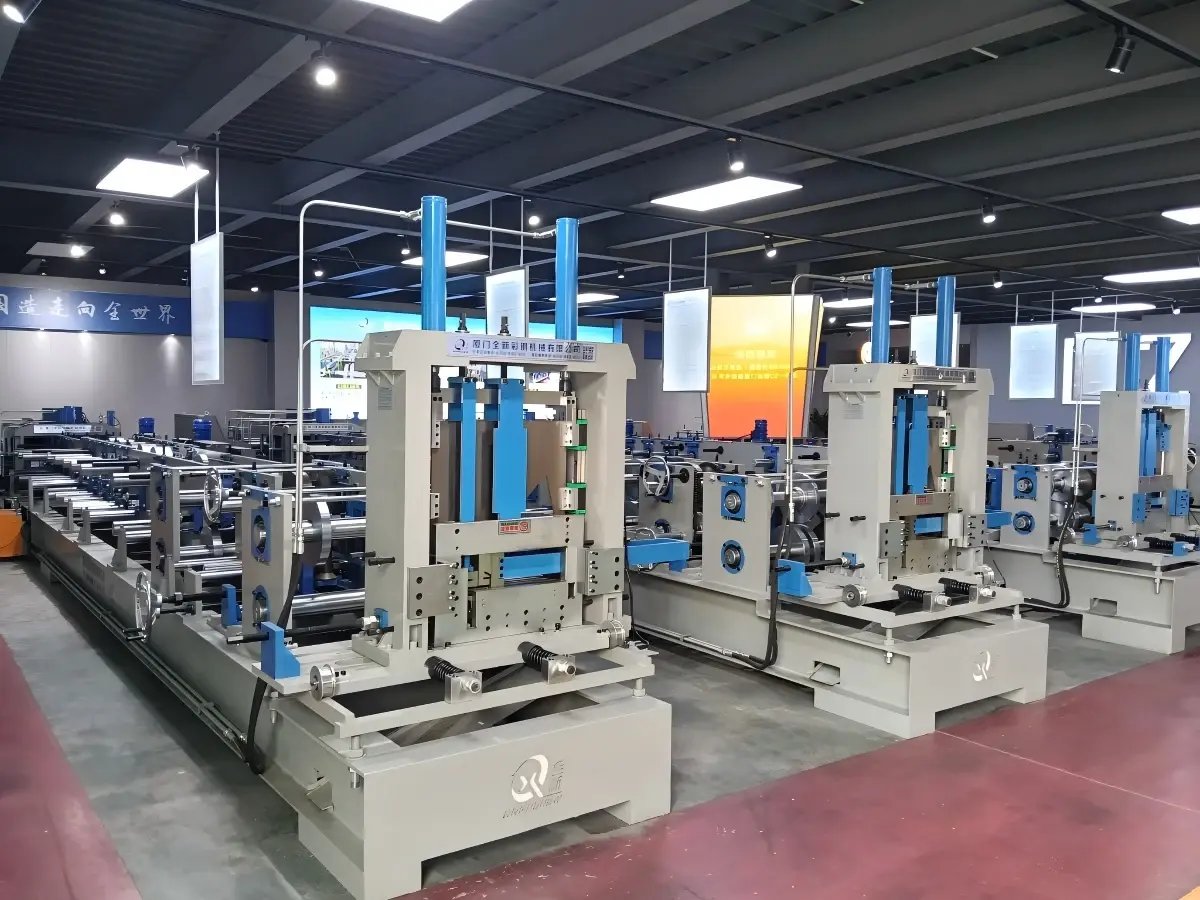

The Beenew CZ30030 is a fully automatic roll forming machine that produces both C and Z purlins on one line. It makes C purlins from 100 to 300 mm wide and Z purlins from 140 to 300 mm wide, with purlin size set on the touchscreen and adjusted continuously across that range.

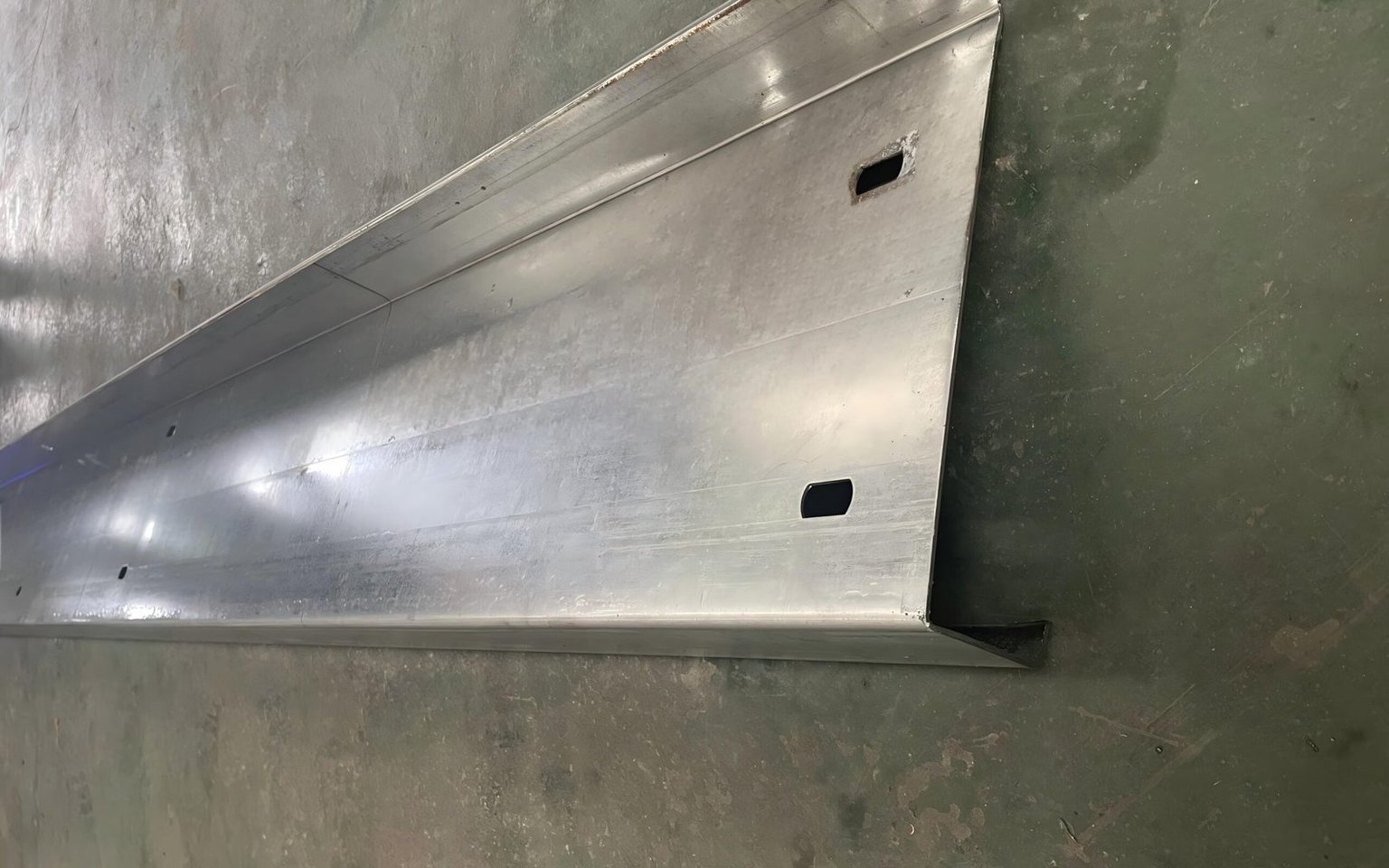

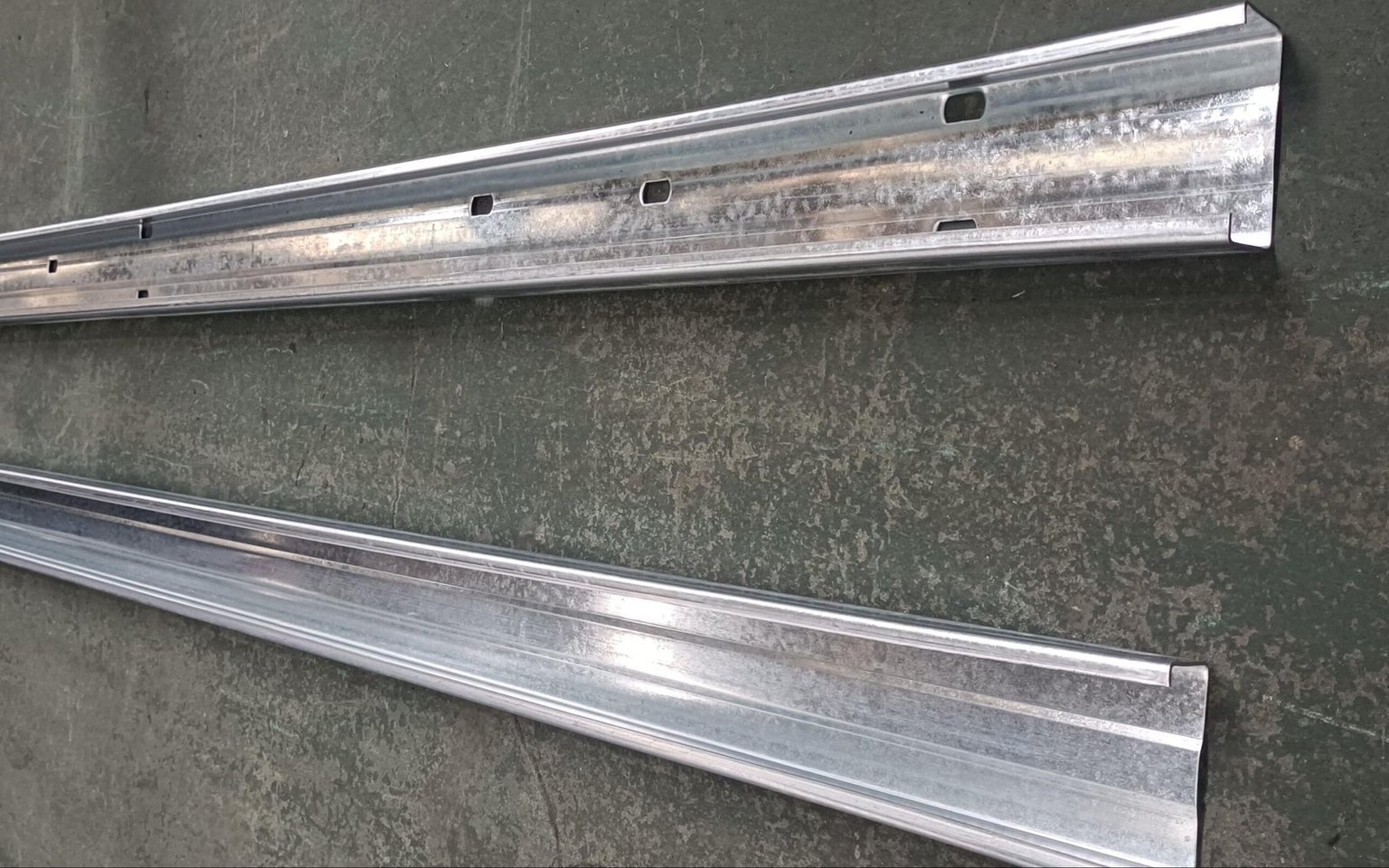

C purlins are typically used as joists for walls and floors, and Z purlins for roof and wall girts. Switching between C and Z is manual on the standard machine, and a fully automatic version is available where the changeover is controlled by the PLC.

Key Features

• One machine for both C and Z purlins
• PLC-controlled size change, set from the touchscreen, continuously adjustable
• Servo motor main drive
• C/Z changeover manual, or fully automatic on the PLC version
• Mechanical or hydraulic uncoiler

Technical Specifications

• Model: CZ30030
• C purlin width: 100–300 mm
• Z purlin width: 140–300 mm
• Uncoiler: Mechanical or hydraulic, 7 t capacity
• Rollers: Flat rollers in GCr15 bearing steel; inclined rollers in Cr12 mould steel
• Main drive: Servo motor
• Size change: PLC-controlled, set on the touchscreen
• C/Z changeover: Manual, or fully automatic by PLC

Applications

• Roof purlins and wall girts in steel-framed buildings
• Wall and floor joists
• Warehouses, factories and agricultural buildings

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• Can it make both C and Z purlins? Yes. C purlins 100–300 mm and Z purlins 140–300 mm wide.
• How are sizes changed? The size is set on the touchscreen and the PLC adjusts the machine.
• Is the C/Z changeover automatic? It is manual on the standard machine; a fully automatic version is available.
• What should I send for a quotation? Your purlin drawings, size range, material grade and thickness, punching requirements and output target.
