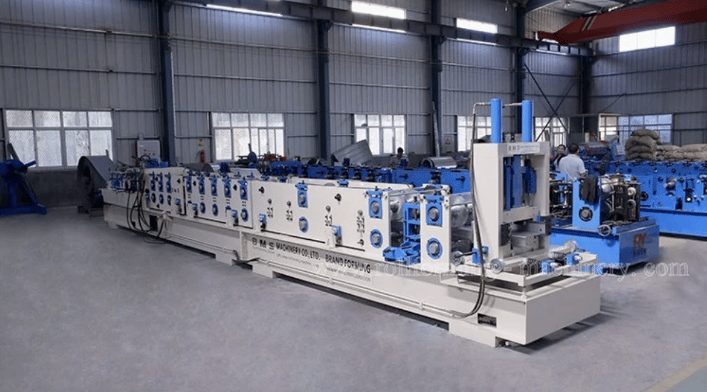

CZ Purlin Roll Forming Machine Costa Rica

Side wall thickness: Q235 t30mm ;Tie rod:ф22 Galvanized

Rollers manufactured from Gcr15/Cr12 steel,CNC lathes,Heat Treatment

with thickness 0.04mm,surface with mirror treatment

Shafts Diameter=ф90mm,precision machined

Gear/Sprocket driving,about 21-step to form(19-step to form and 3 step for final shaping).

Main Motor=18.5KW , Frequency speed control

Speed redcucer motor:K series;

Size changing motor:6pcs, Automatically controlled by PLC Programing.

A CZ purlin roll forming machine is a specialized piece of equipment used to manufacture C and Z-shaped steel purlins, which are crucial components in construction and structural applications. These machines work by continuously feeding a coil of metal through a series of rollers that progressively shape it into the desired profile.

Key Features and Benefits of CZ Purlin Roll Forming Machines

1. Dual Profile Capability: These machines can produce both C and Z purlins, allowing for versatility in construction projects.
2. Automated Control System: Most modern machines come with advanced control systems, enabling precise adjustments and monitoring of production parameters.
3. High Production Efficiency: CZ purlin roll forming machines are designed for high-speed operation, significantly reducing production time and labor costs.
4. Durable Construction: Built with high-quality materials, these machines ensure long-term performance and reliability in various environments.
5. Customizable Specifications: They can often be customized to meet specific project requirements, including different thicknesses and dimensions.
6. Reduced Material Waste: The continuous roll forming process minimizes scrap material, making it a cost-effective solution for manufacturers.
7. Easy Operation and Maintenance: User-friendly interfaces and modular designs make these machines easier to operate and maintain.

Applications

• Commercial Buildings: Used for constructing steel frames, roofs, and walls.
• Industrial Facilities: Ideal for warehouses, factories, and other large structures.
• Agricultural Structures: Commonly used in the construction of barns, greenhouses, and storage facilities.

Conclusion

Investing in a CZ purlin roll forming machine can significantly enhance production efficiency and product quality in the steel construction industry.
