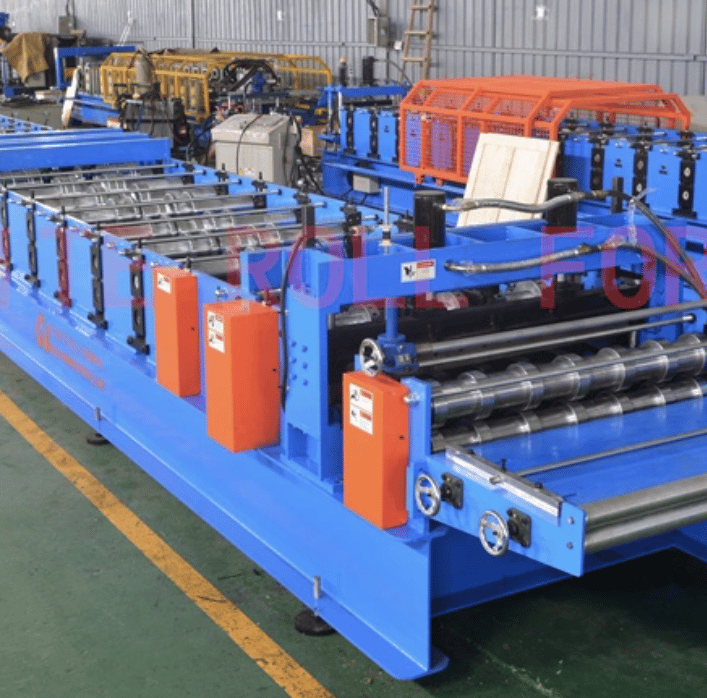

Deck Roll Forming Machine in Mexico
- Condition
- New
- Supplier
- Roll Forming Machines Mexico
- Country
- Mexico
- Category
- Listing ID
- 9537
Request a Quote
To express an interest in this machine please submit the form below.
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 0.8-1.2mm |
| Feeding width | 1219mm |
| Frame design | Wall-plate-frame-design /Strong-stand-frame-design |
| Roll stages | 26-28 stages |
| Material of forming roller | 45# steel with forge treatment, CNC lathes, Hard Chrome Coated Embossing rollers made from GCr15+heat treatment, Hard Chrome Coated |
| Shafts Diameter | Φ95mm |
| Main motor power | 18.5KW*2 with reducer |
| Max. Line speed of roll former | 12-15m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 5.5KW |
| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 220V /60Hz/3PH or as the customer's requirements |
| Machine Dimensions | 22860mm×4500mm×1600 |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
| (3) PLC Control system | |
| PLC | Siemens brand |
| Touch Screen | Siemens brand |
| Inverter | Schneider or Shihlin or Panasonic brand |
| Encoder | Omron brand |
| (4) Product rack | |
| Description | un-powered, 6 meters long |
