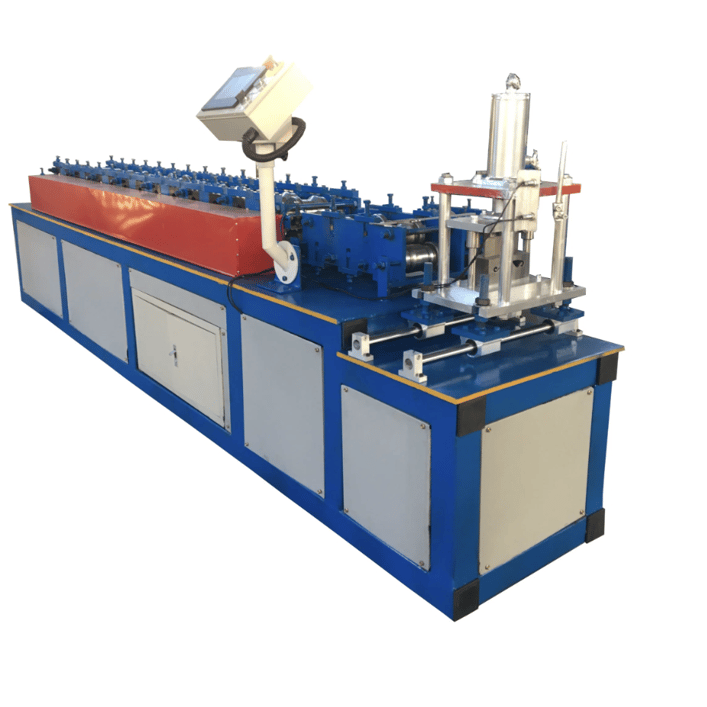

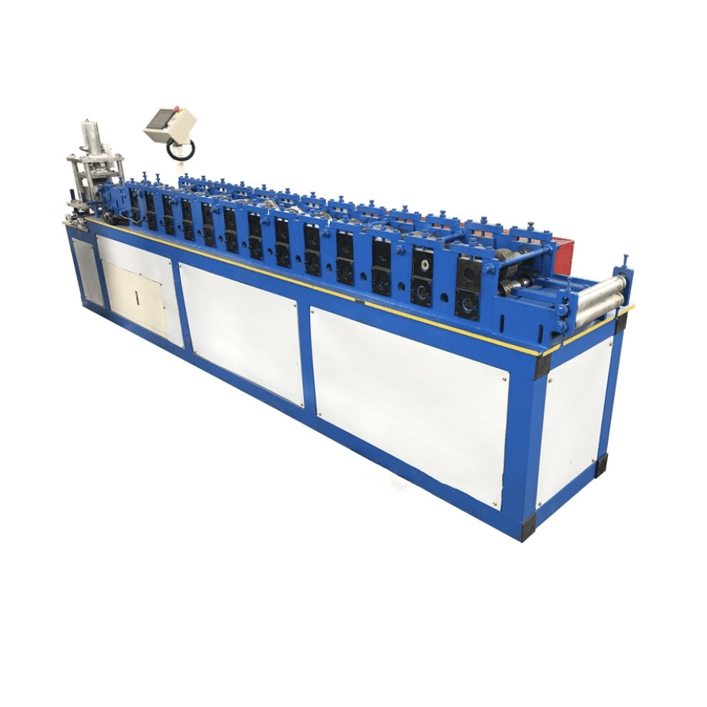

Door Panel Roll Forming Machine in Mexico
| Raw material | GI or PPGI | |
| Material thickness | 0.7-1.2MM | |
| Machine body | Roller material | High grade 45# steel with Cr12 quenched |
| Shaft material | High grade 45# steel with Cr12 quenched | |
| Shaft diameter | 50mm | |
| Roller stations | 14 | |
| Middle plate thickness | 16mm | |
| Machine size | 5*0.8*1.2m | |
| Productivity | 8-15m/min | |
| Cutter | Material | GCR12 |
| Method | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Motor | 4KW | |
| Hydraulic oil pump | 3KW | |
| Voltage | 380V,50HZ ,3 phase or customized as your need | |
| Control system | PLC ,invertor | Delta from Taiwan |
| Screen | Delta ,touch screen | |
| Encoder | Omron from Japan | |
| Language | Chinese & English or as your request |
Request a quote
We’ll respond within one business day
Enquiring about Door Panel Roll Forming Machine in Mexico
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines Mexico
- Country
- Mexico
- Category
- Doors & Shutters
- Listing ID
- 13848
