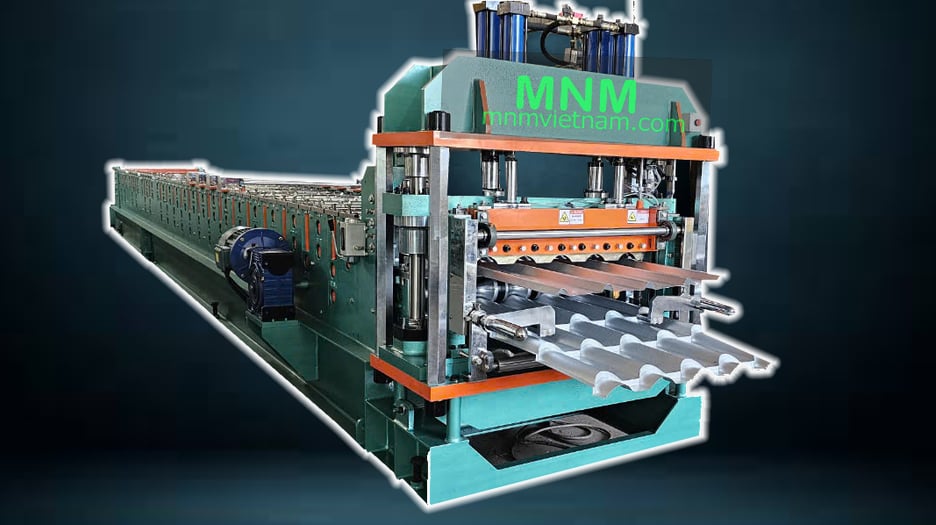

Double Layer Metal Roofing Roll Forming Machine | MNM, Binh Duong, Vietnam

MNM's Double Layer Roll Forming Machine carries two sets of forming rolls on one frame, so one machine can produce two different roofing profiles. One layer can be a tile profile with step pressing.

Speed depends on the layer in use: 20–32 m/min for plain sheet profiles and 3–5 m/min when pressing tile steps.

Technical Specifications

• Total power: 7.5–22 kW
• Weight: 14–18 t
• Rolling speed (sheet): 20–32 m/min
• Rolling speed (tile): 3–5 m/min
• Forming stations: 18–32
• Shaft diameter: Ø70 mm

Applications

• Roofing suppliers who need two profiles on limited floor space
• Residential and industrial roofing

Commercial Details

• Brand: MNM
• Manufacturer: MNM Industrial Mechanical Limited Company
• Place of origin: Thuan An City, Binh Duong, Vietnam

Frequently Asked Questions

• Can one layer make tiles? Yes. One layer can be a tile profile with step pressing.
• How fast is it? 20–32 m/min for sheet profiles, 3–5 m/min for tiles.
• What should I send for a quotation? Drawings of both profiles, material and thickness, and output target.
