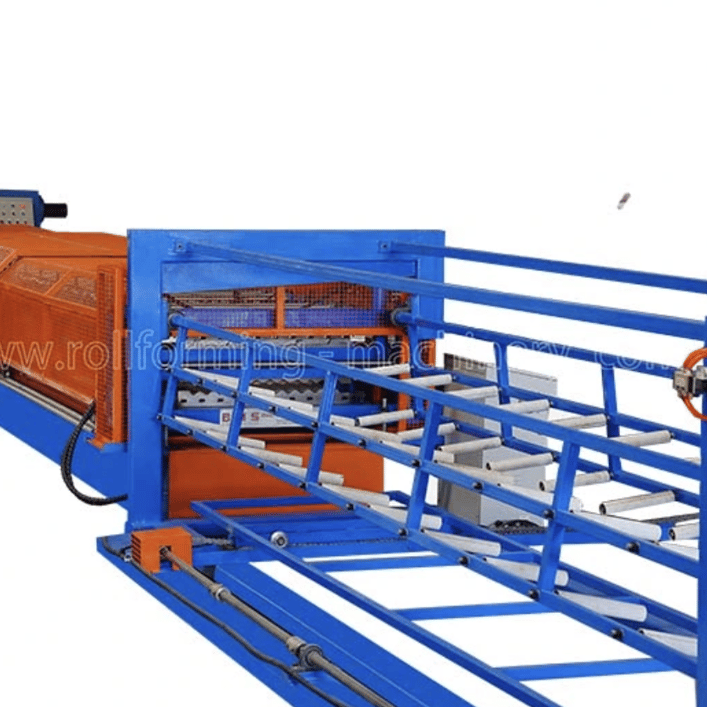

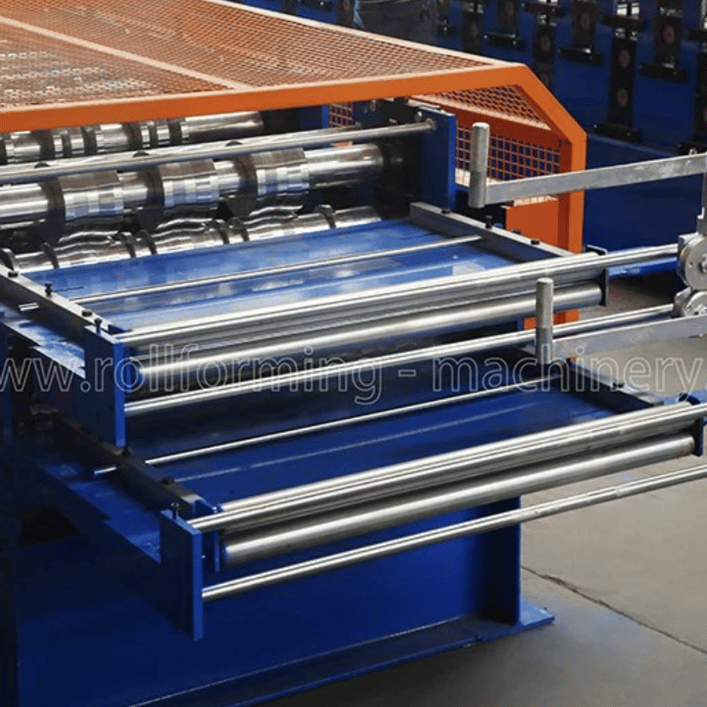

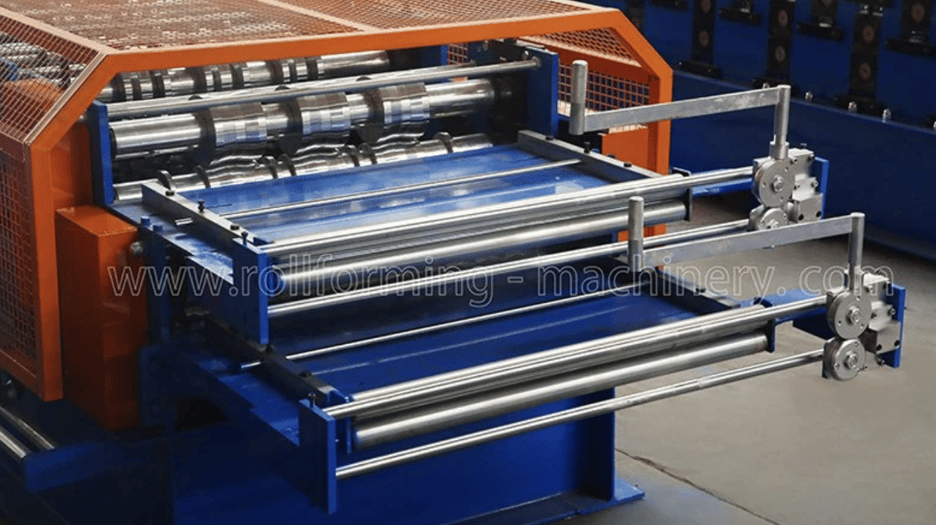

Double Layer Roll Forming Machine in Belize

Effective width: 760/760 mm

Feeding width: about 914/914 mm

Material Thickness: 0.3-0.6mm

Applicable material:Prepainted Galvanized Steel(PPGI)

With yield strength 235-390Mpa

body frame made from H450 type steel by welding

Side wall thickness: Q235 t20mm

Rollers manufactured from 45# Steel,CNC lathes,Heat Treatment,hard Chrome Coated

Gear/Sprocket driving,about 18-step(Upper Layer)/18-step(Down Layer) to form

Main Motor=11KW,Frequency speed control

Chain: ZIQIANG (by China TOP 1 brand DONGHUA Group)

All the screw bolts with grade 8.8

Real forming speed 18-25 m/min(Not include cutting time)

Post to cut, stop to cutting,Three pieces type of cutting blade design, no blanking

Hydraulic motor:5.5 KW ;

Cutting tool material: Cr12MoV

The cutting power is provided by the main engine hydraulic station

Control The Quantity And Cutting Length Automatically

Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
