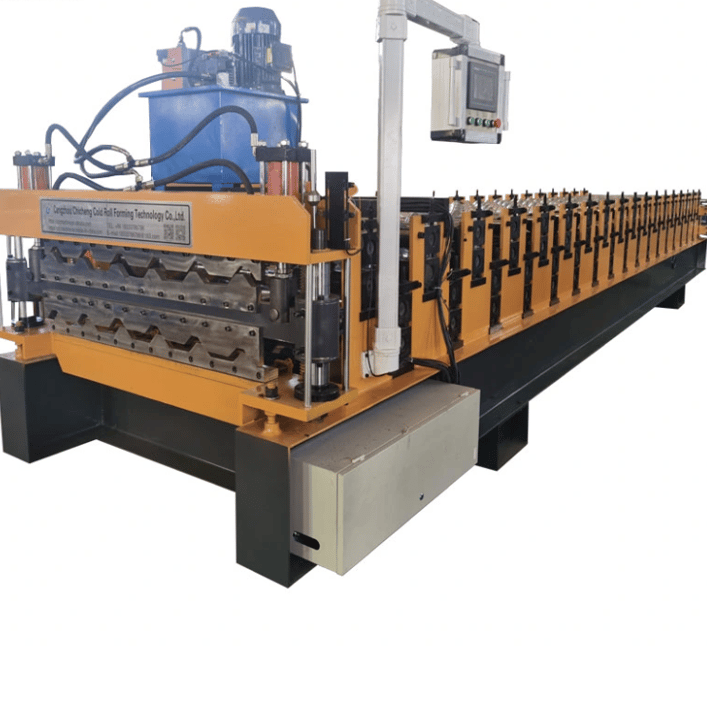

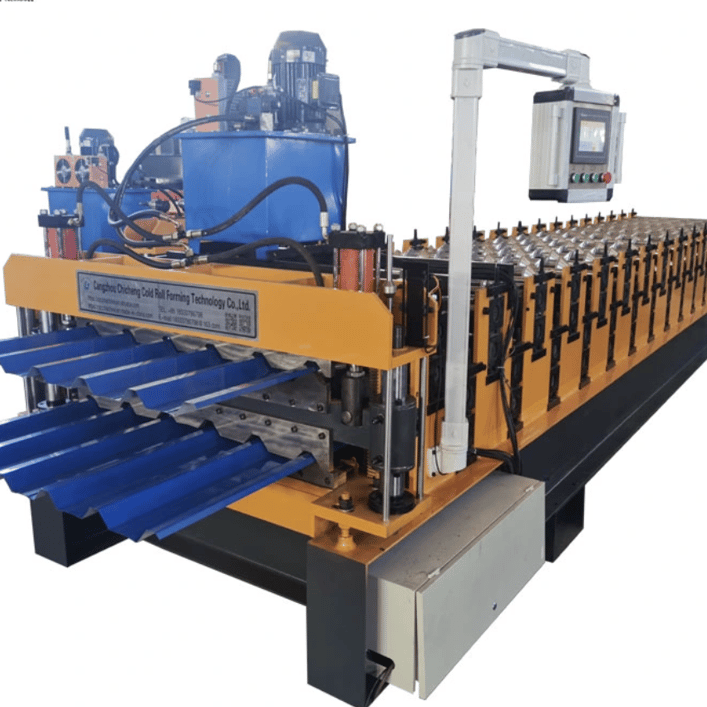

Double Layer Roll Forming Machine in Guatemala
| Material | Aluminium PPGI PPGL GI GL |
| Width | 1200mm |
| Thickness | 0.3-0.8mm, customized |
| Power | 380V 3Phase 50Hz, customized |
| Main Motor | 5.5KW, Lichao, Shanghai/Siemens Brand |
| Cutting Motor | 4.0KW, Lichao, Shanghai/Siemens Brand |
| Support Frame | 400H steel, 10mm |
| Forming Station | 18+18rows, exactly according to profile drawing |
| Structure | 16mm |
| Shaft | 45# high grade steel, 80mm, solid, with keyway |
| Roller | 45# high grade steel with heat treatment, hard chrome plated |
| Chain | 1.0inch |
| Bearing | Standard |
| Speed | 12-18m/min |
| Electric Components | Delta / Siemens / Mitsubishi |
| Cutting Blade | Cr12Mov, quenched 58°-62° |
| Operation | Touch Screen |
| Dimension | 9.1*1.75*2.1M |
| Weight | 9.0T |
Request a quote
We’ll respond within one business day
Enquiring about Double Layer Roll Forming Machine in Guatemala
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines Guatemala
- Country
- Guatemala
- Categories
- Roofing & Cladding Multi-Profile
- Listing ID
- 13828
