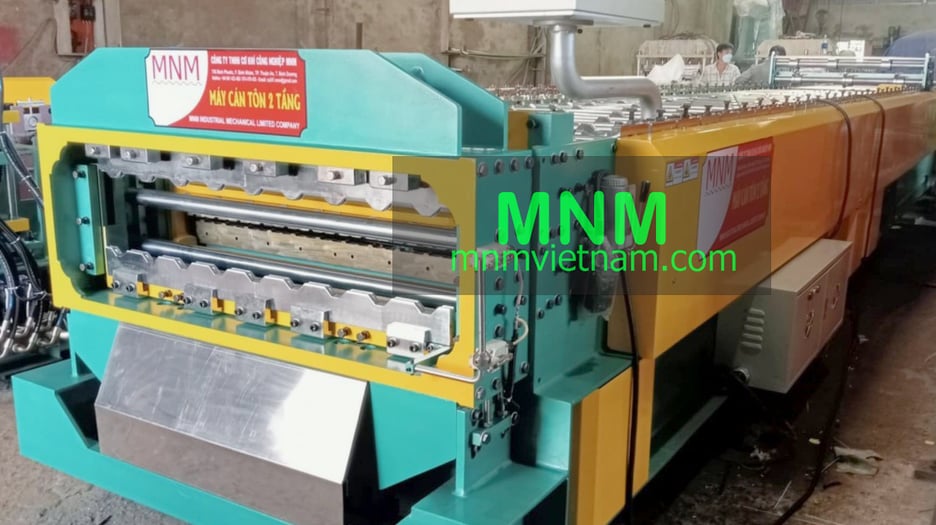

Double Layer Roll Forming Machine with Curving Head | MNM, Binh Duong, Vietnam

MNM's Double Layer Roll Forming Machine with Curving Head makes two roofing profiles on one frame and curves sheets as they come off the line, so curved roof sheets need no separate curving machine.

It has 18 to 28 stations and weighs 14 to 16 tonnes.

Technical Specifications

• Total power: 11–15 kW
• Weight: 14–16 t
• Rolling speed: 18–20 m/min
• Forming stations: 18–28
• Shaft diameter: Ø70 mm

Applications

• Curved and straight roof sheets from one line
• Arched roofs, canopies and walkways

Commercial Details

• Brand: MNM
• Manufacturer: MNM Industrial Mechanical Limited Company
• Place of origin: Thuan An City, Binh Duong, Vietnam

Frequently Asked Questions

• Does it curve sheets in line? Yes, with its built-in curving head.
• How many profiles can it make? Two, one on each layer.
• What should I send for a quotation? Both profile drawings, curve radii, material and thickness.
