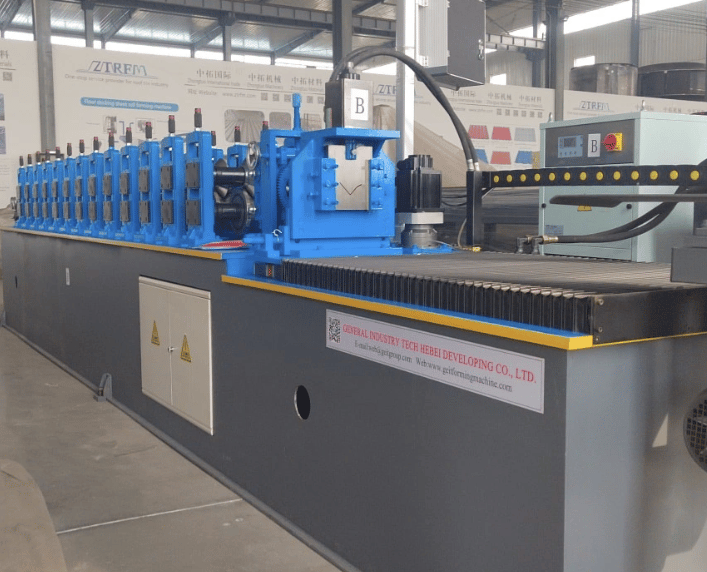

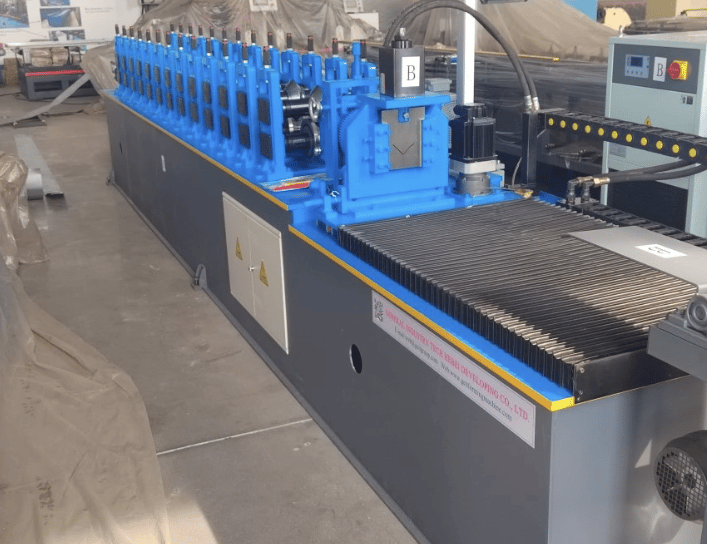

Eave Drip Edge Flashing Roll Forming Machine in Canada

A roof eave drip edge is an essential component of any roofing system. It is a metal strip that is installed along the edges of the roof to prevent water from seeping into the underlying structure. To efficiently produce these drip edges, a specialized machine called the Roof Eave Drip Edge Machine is used.

a, Frame of Steel Eave Drip Edge Machine is made of cast iron stands, which are processed twice CNC tools

b, Shafts made of forged solid bar, material 45# steel and Fine lathing finished and cylindrical grinding, Quenching and tempering heat treatment to get good physical properties, No deformed after long term work.

c, Rollers made of high grade alloy steel Cr12, Twice CNC machined to get high precision & high frequency quenched with HRC 58-62

hard chrome plated & fine polished

d, Driven by gearbox transmission

e, Rugiing speed is up to 65-80 meters per minute

f, Flying shear with servo motor controlling system to guarantee the fast cutting and high-precision length cut
