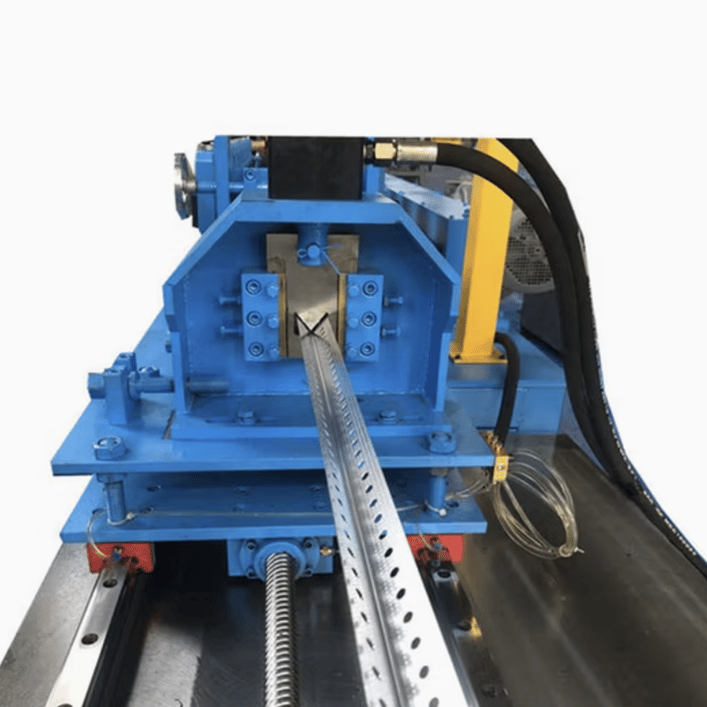

Edge Channel Roll Forming Machine Brazil

An Edge Channel Roll Forming Machine is a specialized piece of equipment designed to manufacture edge channels used in various industries, including construction, automotive, and manufacturing. These machines are engineered for precision, efficiency, and durability, producing high-quality profiles that meet international standards.

Edge channels serve as structural components, supports, and reinforcements in projects like roofing, wall cladding, and shelving systems. In Brazil, the demand for edge channels is growing due to the expanding construction and infrastructure sectors.

Machine Description

The Edge Channel Roll Forming Machine automates the process of converting metal coils into edge channels of specific sizes and profiles. The machine operates with precision rollers, cutting systems, and advanced control units to ensure consistent output.

• Construction: Heavy-duty steel frame for stability.
• Rollers: Heat-treated, precision-engineered rollers for smooth profiling.
• Cutting System: Hydraulic or servo-driven cutting for clean edges.
• Control System: PLC with a user-friendly interface for programming various profiles and dimensions.
• Efficiency: High production speeds, ensuring quick turnaround times for bulk orders.

Specifications

1. Roller Materials:
   • Chromium-plated, hardened steel for longevity and resistance to wear.
2. Frame Size:
   • Heavy-duty steel frame, dimensions adjustable based on customization needs.
3. Motors:
   • Main motor: 5-15 HP (depending on capacity and requirements).
   • Hydraulic motor: 3-7.5 HP.
4. Production Speed:
   • Standard: 10-30 meters per minute.
   • High-speed options: Up to 50 meters per minute.
5. Profile Dimensions:
   • Width: 20-200 mm.
   • Thickness: 0.5-3 mm (depending on material).
6. Materials Processed:
   • Galvanized steel, stainless steel, aluminum, and pre-painted coils.
7. Control System:
   • PLC control with HMI (Human Machine Interface) for easy operation.
8. Cutting System:
   • Hydraulic or servo-driven cutting system with precision cutting tolerance of ±0.1 mm.
9. Optional Features:
   • Decoilers: Manual or automatic with coil capacity of 3-10 tons.
   • Stacking systems for automatic product collection.
   • Remote diagnostics for quick troubleshooting.

Applications in Brazil

• Construction: Used in roofing, wall cladding, and structural frameworks.
• Industrial: Manufacturing of storage systems and conveyor channels.
• Infrastructure: Reinforcements for bridges, railways, and pipelines.

Advantages

1. High Precision: Ensures consistency in edge channel profiles.
2. Efficiency: Reduces production time and labor costs.
3. Versatility: Customizable for different profiles and materials.
4. Durability: Built for long-term, high-volume production.
5. Cost-Effective: Optimized for local and export markets in Brazil.

Setup and Installation Process

1. Preparation:
   • Ensure proper alignment and leveling of the machine.
   • Load the metal coil onto the decoiler.
2. Calibration:
   • Set the desired profile specifications using the PLC interface.
   • Perform trial runs to confirm accuracy.
3. Operation:
   • Start the machine and monitor production through the control system.
4. Quality Check:
   • Inspect finished products for dimensional accuracy and surface quality.

Maintenance Requirements

1. Daily Checks:
   • Inspect rollers, lubricate moving parts, and clean the machine.
2. Monthly Maintenance:
   • Tighten bolts and screws, check motor performance, and ensure hydraulic fluid levels are adequate.
3. Annual Service:
   • Replace worn rollers and inspect electrical and control systems.

Question and Answer Section

Q1: What is the price range of an Edge Channel Roll Forming Machine in Brazil?

A: The price varies depending on specifications and optional features, ranging from BRL 150,000 to BRL 500,000.

Q2: What is the lead time for delivery in Brazil?

A: Typically, 6-12 weeks, depending on customization and supplier.

Q3: Can this machine handle multiple profiles?

A: Yes, it can be programmed to produce various edge channel profiles with minor adjustments.

Q4: Are training and installation services provided?

A: Most suppliers offer on-site installation and training for operators in Brazil.

Q5: What type of maintenance support is available?

A: Remote diagnostics and local service teams are available for troubleshooting and regular maintenance.

Q6: What materials are recommended for edge channels in Brazil?

A: Galvanized steel and aluminum are commonly used due to their corrosion resistance and durability in tropical climates.
