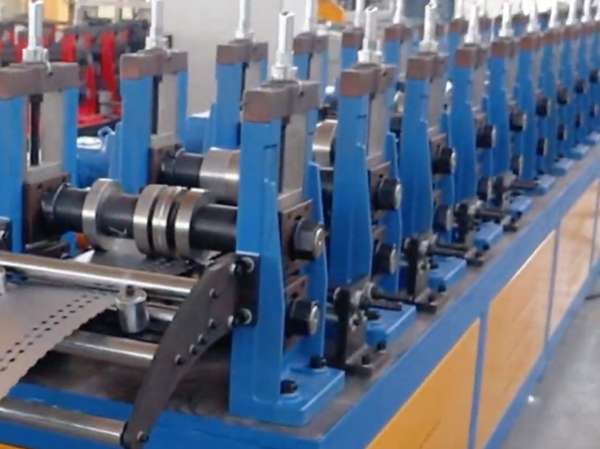

Electrical Cabinet Profile Roll Forming Machine | Beenew, Xiamen, China

Beenew's Electrical Cabinet Profiles Roll Forming Machine produces the frame profiles used to build electrical and control cabinets, for electrical manufacturers, power utilities and telecom companies.

The line levels and servo-feeds the strip into a hydraulic punch, forms it through 28 stations driven by two 11 kW motors, and cuts it with a water-cooled flying saw.

Key Features

• 28 forming stations for complex cabinet profiles
• 7-roll leveller and automatic feeding
• Hydraulic punching with light-sensor limit
• Water-cooled flying saw cut-off
• Overload, short-circuit and power protection, emergency stop

Technical Specifications

• Uncoiler: 3 t manual, ID 350–450 mm
• Levelling: 7 rollers, 3 kW, 40 mm shafts, screw adjustment
• Feeding: Automatic, about 2 kW
• Punching: Hydraulic, 7.5 kW, 1 cylinder, 1 die, GCr12MoV pins
• Forming stations: 28
• Shafts: 45# steel, 65 mm
• Rollers: GCr15, quenched
• Main power: 2 × 11 kW
• Cutting: Flying saw, water-cooled
• Control: PLC, inverter speed control

Applications

• Electrical cabinet and enclosure frames
• Control cabinets and switchgear
• Telecom equipment cabinets

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• What does it make? Frame profiles for electrical and control cabinets.
• How is the profile cut? By a water-cooled flying saw.
• How many forming stations does it have? 28.
• What should I send for a quotation? Your cabinet profile drawing, hole pattern, material and thickness, and output target.
