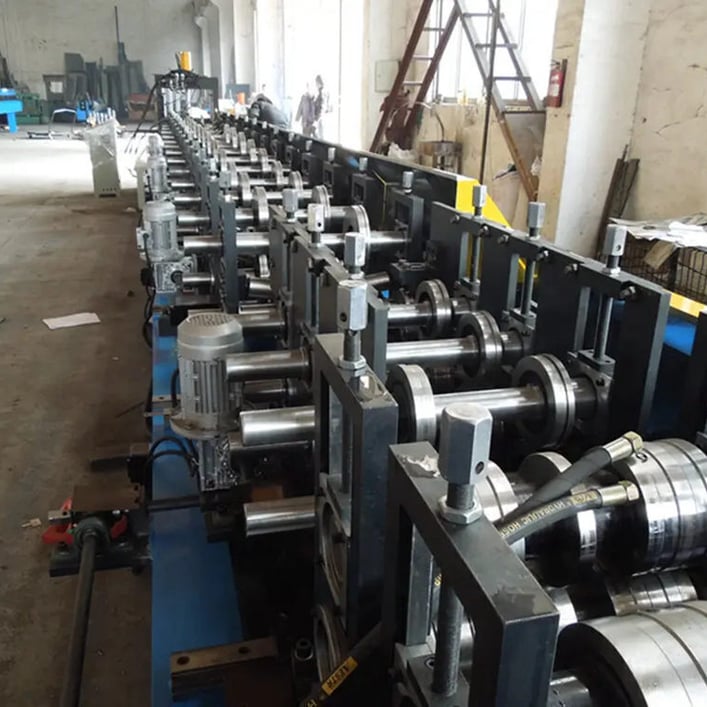

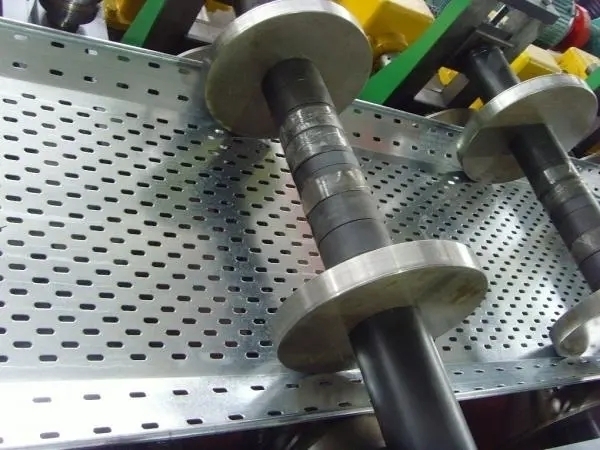

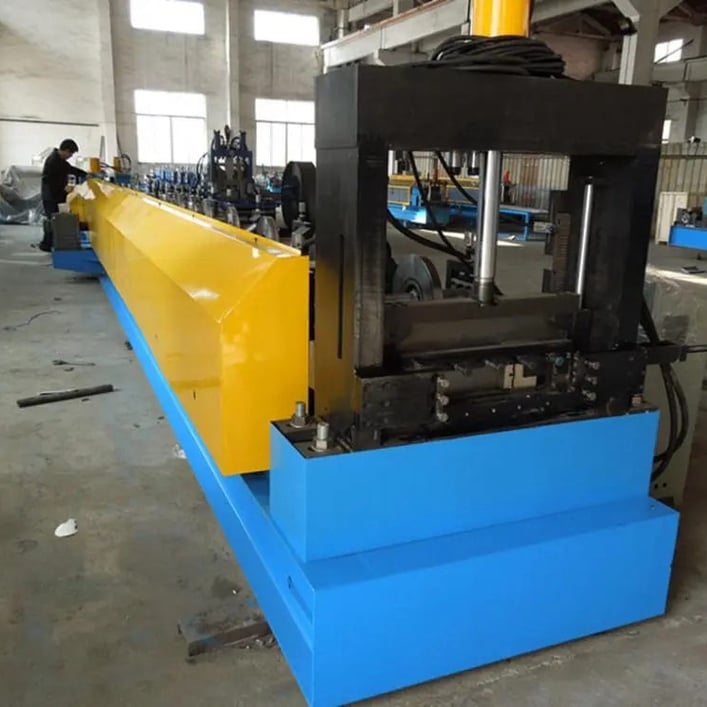

Flexible Cable Tray Roll Forming Machine in China
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Listing ID
- 10450
Request a Quote
To express an interest in this machine please submit the form below.
- Packaging:Nude
- Productivity:200 stes/ year
- Brand:Yingyee Machinery
- Transportation:Ocean
- Place of Origin:China
- Supply Ability:200 stes/ year
- Certificate:ISO9001
- HS Code:73079100
- Port:Tianjin Xingang
- Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
- Working Speed: 12-15 meters / min
- Forming Steps: according to different profiles, changing by 5 sets cassettes
- Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
- Material of Shaft: 45# Advanced Steel (Diameter: *76mm), thermal refining
- Driven system: Chain Driven 1.5 inches 20A
- Main Power with reducer: 15KW WH Chinese Famous

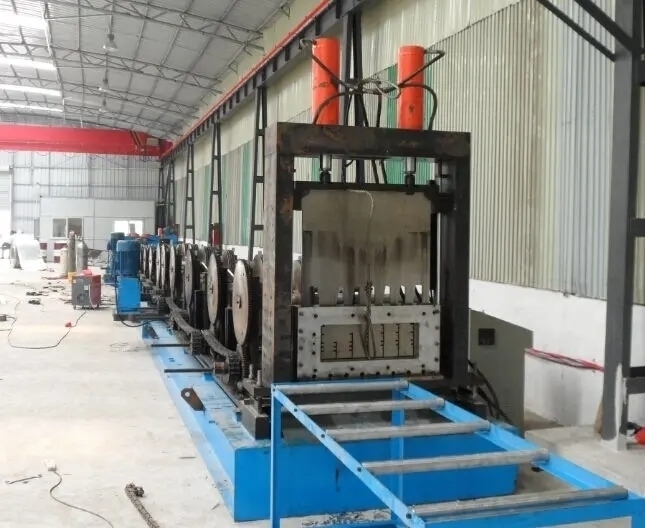

- Cutting: Hydraulic Cutting Cr12mov
- Material of Cutting Knife: Cr12Mov, Quench HRC58-62
- Hydraulic Station Power: 11KW Wuxi Wanshen Famous Chinese Brand
- The whole machine is controlled by industry computer-PLC.
- PLC–Panasonic, Japan
- Touch Screen–Panasonic Japan
- Encoder–Omron, Japan
- Electric parts–Schneider
