Floor Deck 3" Roll Forming Machine – Connecticut

Floor Deck 3″ Roll Forming Machine – Connecticut, USA

High-Speed, Heavy-Duty Metal Deck Production Equipment

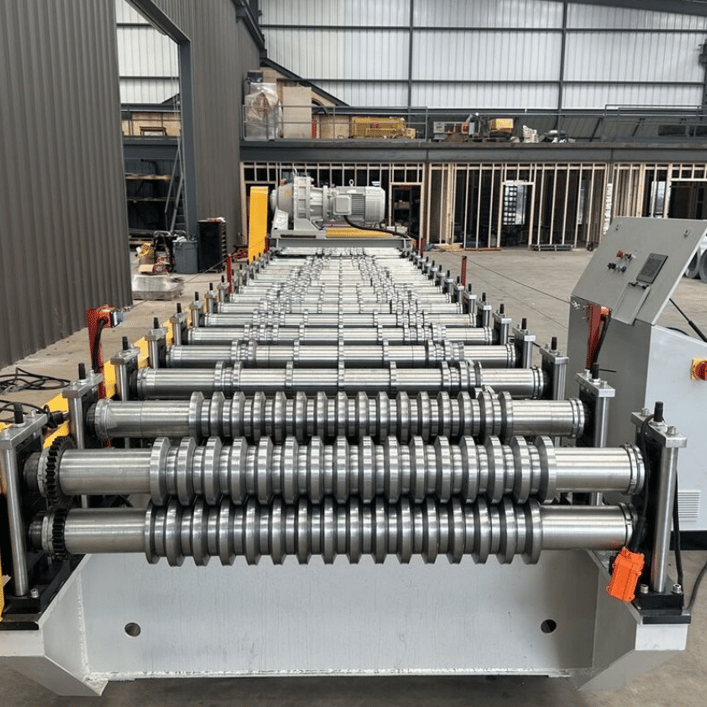

The Floor Deck 3″ Roll Forming Machine, now available for supply in Connecticut, USA, is a high-performance, precision-built forming machine designed for commercial and industrial steel deck production. Built to deliver robust output with flexibility in profile customization, this machine is engineered for heavy-duty operations and is ideal for use in construction, infrastructure, and steel fabrication industries.

This machine forms 3-inch floor deck panels, commonly used in composite floor systems in multi-story buildings, warehouses, factories, and other structural flooring projects. It is designed to process steel coil materials between 18 to 22 gauge and deliver accurate, consistent panel profiles at speeds exceeding 60 feet per minute.

In addition to the standard 3″ floor deck profile, other available profile options include 1.5″ B deck, 3″ N deck, composite metal deck, and steel form deck. Machines for custom deck profiles can also be built to suit unique project or market requirements.

Both fixed base and cassette-type machines are available, offering flexibility in tool changeover and production lines. Optional auto stackers can be added to streamline production and improve post-forming handling.

Specifications – Floor Deck 3″ Roll Forming Machine

• Forming Speed: 60 ft/min and above
• Material Thickness: 18 gauge – 22 gauge
• Stations: 28
• Motor Power: 32 HP
• Drive System: Gearbox & Chain Drive
• Cutting System: Pre-Flying Shear
• Main Power: 480V / 3-Phase / 60Hz
• Machine Weight: 20 tons
• Machine Footprint: Approx. 85 ft in length
• Uncoiler: 15,000 lb capacity with Hydraulic Coil Car
• Safety Features: Emergency Stops, Optional Safety Covers
• Design Options: Fixed base or Cassette System
• Stacking: Optional Auto Stacker Available
• Custom Profiles: Available upon request

Industries & Applications

This roll forming machine is suited for companies in:

• Structural Steel Decking
• Commercial & Industrial Construction
• Pre-engineered Building Systems (PEBs)
• Steel Fabrication Shops
• Infrastructure Development Projects

The 3″ floor deck panels produced by this machine provide enhanced load-bearing strength and are widely used in high-rise building floors, bridges, and mezzanine platforms, often serving as a form for concrete slabs in composite construction systems.

Machine Supply, Shipping & Customization

All machines are new and custom-built to suit your specific floor deck profile and production requirements. Once the order is confirmed, the machine will be manufactured and shipped directly to your location in Connecticut from our international manufacturing partner.

Customization options include profile dimensions, material gauge, electrical specifications, automatic stackers, and safety enclosures.

Warranty & Support

• One-Year Warranty from the date of dispatch
• Ongoing Maintenance & Repair Support
• Full Set-Up and Commissioning Available
• Technical Assistance for Machine Adjustment and Optimization

Contact and Quote Requests

Machine Matcher provides a full range of machine sales, setup, repair, and maintenance services for the roll forming industry worldwide. We also supply:

• Metal Roof Panel Machines
• Metal Flashing Machines
• Purlin Machines
• Metal Trim Machines
• Slitting Lines
• Metal Tile Machines
• Uncoilers, Coil Cars, Embossers, and more

To receive a tailored quote for the Floor Deck 3″ Roll Forming Machine in Connecticut, please send your profile drawings, material specifications, and required features to:

[email protected]

Frequently Asked Questions

Q: Can the machine be used for other floor deck profiles?

A: Yes, we offer machines that can form multiple profiles such as 1.5″ B deck, 3″ N deck, composite deck, and steel form deck. We also provide cassette systems for easy changeover between profiles.

Q: Can the machine handle galvanized steel and painted coils?

A: Yes, the machine is suitable for galvanized, galvalume, and painted steel coils within the 18g–22g thickness range.

Q: Is the machine built to U.S. electrical standards?

A: Yes, the machine is configured for 480V, 3-phase, 60Hz power supply to meet U.S. industrial standards.

Q: How long does it take to deliver the machine to Connecticut?

A: Delivery time depends on customization and current production queue. Standard lead time ranges between 8 to 14 weeks. Shipping is arranged directly to your site.

Q: Can you assist with installation and training?

A: Yes, full on-site setup and operator training can be provided as part of the service package.

Q: How do I get a quote?

A: Send your profile drawing, coil width and thickness, and any specific requirements to [email protected]. Our team will prepare a detailed quotation with optional extras based on your needs.

If you need a powerful, fast, and durable floor deck roll forming machine in Connecticut, Machine Matcher is ready to deliver your solution — designed for productivity, reliability, and long-term performance.
