Jinbolida Cold Bending Pull Tab Groove Press – Flat Tie Slot Punching for Formwork Frame Profiles

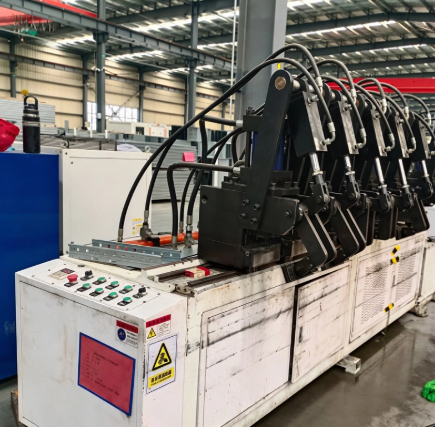

The Jinbolida Pull Tab Groove Press is a precision stamping machine for formwork manufacturers. It punches standard flat tie slots into formwork frame profiles in a single stroke, with uniform size and depth at each programmed position. Flat ties connect the formwork panels on both sides of a concrete wall and set its thickness, so accurate, consistent slots are essential: they let ties drop in quickly and seat firmly, spread the tie loads evenly, and hold the formwork together under the lateral pressure of wet concrete. Replacing drilling with stamping makes slot production faster and more consistent, standardising tie installation on site.

How It Works

• Formed formwork frame profiles are fed into the press
• Precision dies stamp flat tie slots at the programmed positions
• Multiple slots are pressed quickly and continuously along the profile
• Finished frame profiles move on to the next stage of formwork assembly

Key Features

• Precision stamping of flat tie slots in formwork frame profiles
• Uniform slot size and depth in one stroke
• Accurate, repeatable slot positions for consistent tie loads and wall thickness
• Multiple slots punched quickly and continuously
• Replaces drilling for faster, cleaner production
• Designed as a processing step after frame profile forming

Why Flat Tie Slots Matter

• Wall thickness control: Slots in the same position on every panel keep walls a consistent thickness
• Stronger connections: Properly formed slots hold ties firmly under concrete pressure
• Faster site work: Ties drop straight in, with no drilling or adjustment on site

Applications

• Steel formwork frame manufacturing
• Formwork systems using flat ties
• Formwork panel production lines, alongside frame forming and welding equipment

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What does the machine do? It stamps flat tie slots into formwork frame profiles.
• What is a flat tie? A flat steel tie that connects the formwork on both sides of a concrete wall and sets the wall thickness.
• Why stamp instead of drill? Stamping is faster and gives uniform slots at consistent positions.
• Where does it fit in formwork production? After the frame profiles are formed, before panel assembly and welding.
• What should I send for a quotation? Frame profile drawings, material and thickness, flat tie slot size and spacing, profile lengths and required output.
