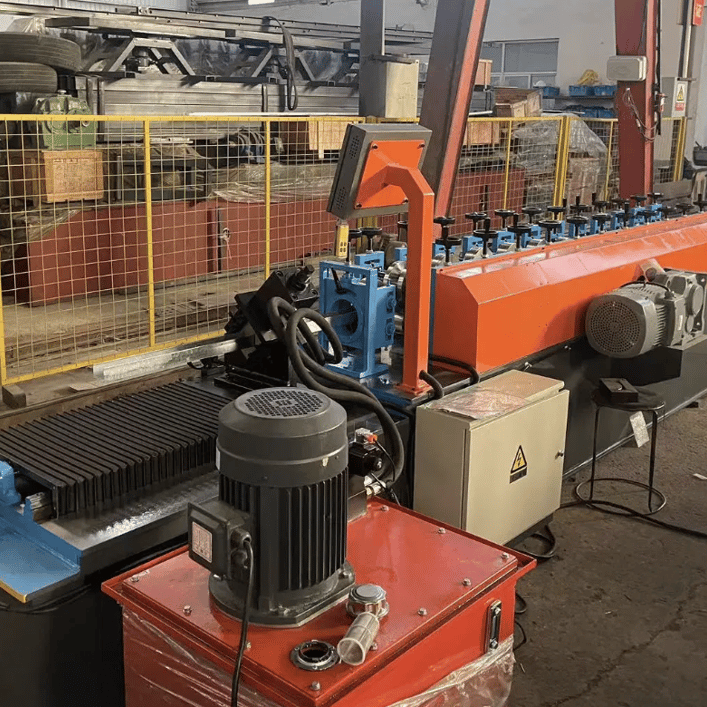

Furring Roll Forming Machine in Brazil

Condition
New
Supplier
Roll Forming Machines Brazil
Country
Brazil
Category
Listing ID
9422

Request a Quote

To express an interest in this machine please submit the form below.

Please enter your full name.

Please enter your location.

Please enter your email address.

Please enter your phone number.

Please enter a brief description of how we can help.

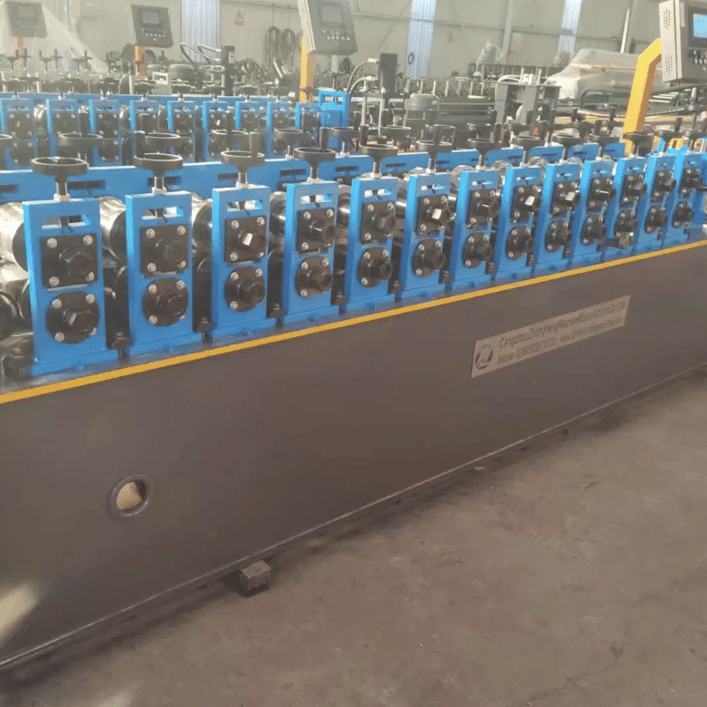

Furring Purlin Roll Forming Machine

Suitable materialPPGI GI AL
Coil Width as custom
Thickness0.3-0.5mm as custom
Power380V 50Hz 3Phase as custom
Main motor5.5KW Siemens
Hydraulic motor4KW Siemens
Speed45m/min
Forming stations12 rows
Roller materialCr12 steel with vacuum heat treatment HRC57°-60°
Shaft material45# steel quenched and tempered
Shaft diameter50mm
DriveGear
Screem HMI Delta , Touch Screen
PLC Delta , Siemens
Processing precisionWithin 1mm
Size 4.6m×1.5m×1.2m
Weight2.5T
