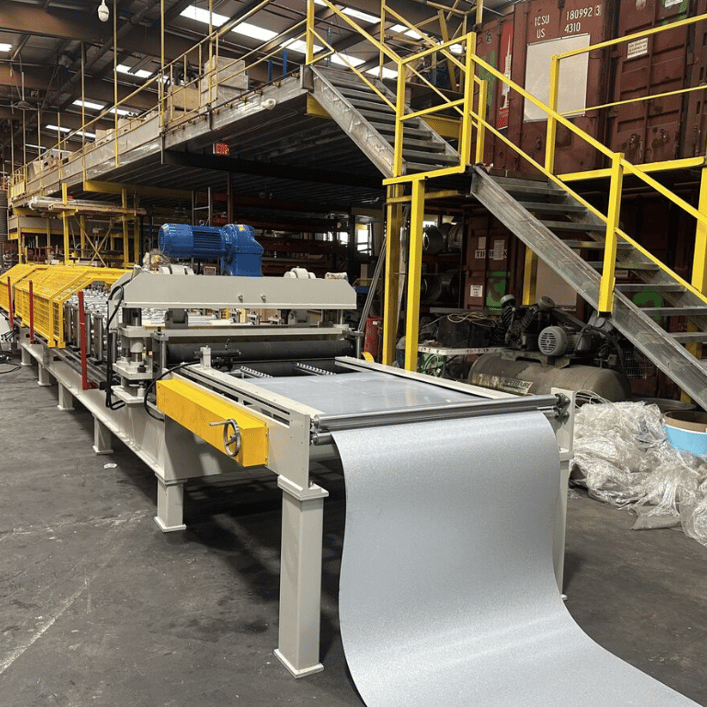

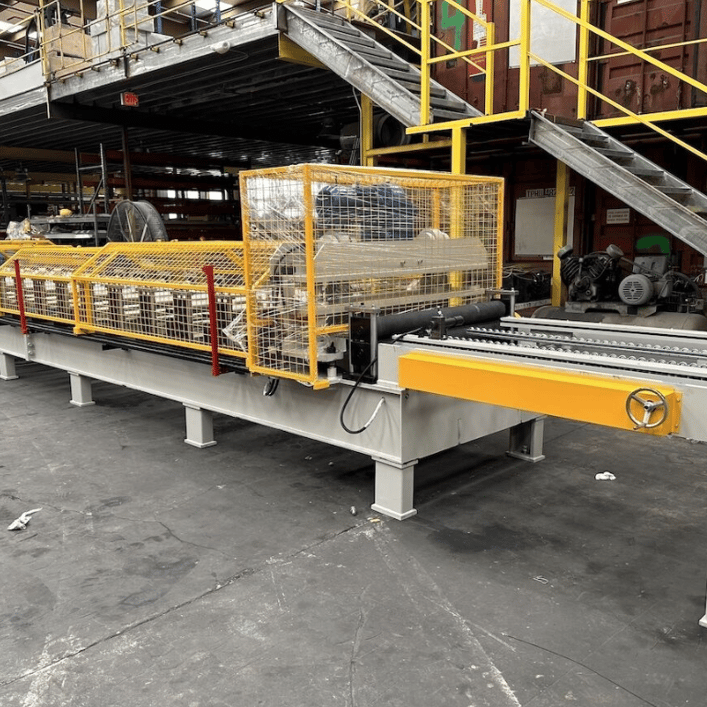

Galvalume Metal Roof Roll Forming Machine in USA

•
•
•
•

The Galvalume metal roof roll forming machine is designed to produce high-quality, durable roofing panels using Galvalume-coated steel. This advanced machine is tailored for industrial applications, residential roofing, and commercial structures, meeting the growing demand for corrosion-resistant and energy-efficient metal roofing solutions in the USA.

Machine Description

The Galvalume metal roof roll forming machine is a robust, high-performance system engineered to produce panels with precision and consistency. It features cutting-edge automation, durable construction, and versatility to create various roofing profiles.

Key features include:

• Compatibility with Galvalume steel and other coated materials.
• Ability to produce a range of roofing profiles, including standing seam, ribbed panels, and corrugated sheets.
• High-speed production to meet the needs of large-scale projects.
• Built-in quality control systems to ensure uniformity in every panel.

This machine is a preferred choice in the USA due to its adherence to strict safety standards and customization options for unique project requirements.

Specifications

General Specifications

• Material Compatibility: Galvalume steel, pre-painted steel, aluminum-zinc alloy steel.
• Material Thickness: 0.3mm–0.8mm (customizable based on requirements).
• Coil Width: 1000mm–1250mm.
• Machine Dimensions: Approx. 8m × 1.5m × 1.2m (varies by model).
• Weight: 8–12 tons.

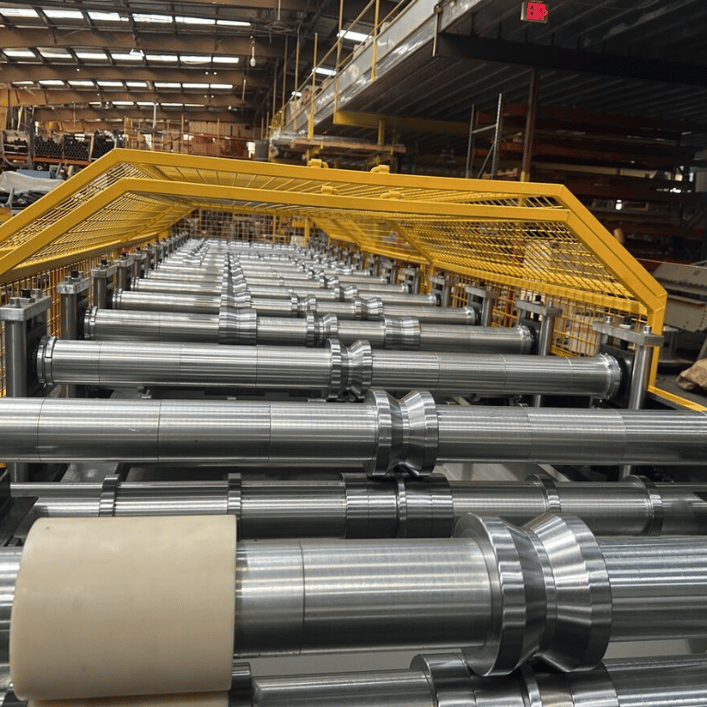

Roller and Frame

• Roller Material: GCr15 steel with hard chrome plating for wear resistance.
• Number of Rollers: 12–20 stages (depends on profile complexity).
• Frame Structure: High-strength steel, H-beam welded design for stability.

Drive and Power System

• Main Motor: 7.5kW–11kW.
• Hydraulic Cutting Motor: 4kW.
• Drive System: Chain or gear-driven, as per user preference.
• Power Supply: 380V, 50Hz, 3-phase (customizable for USA power standards).

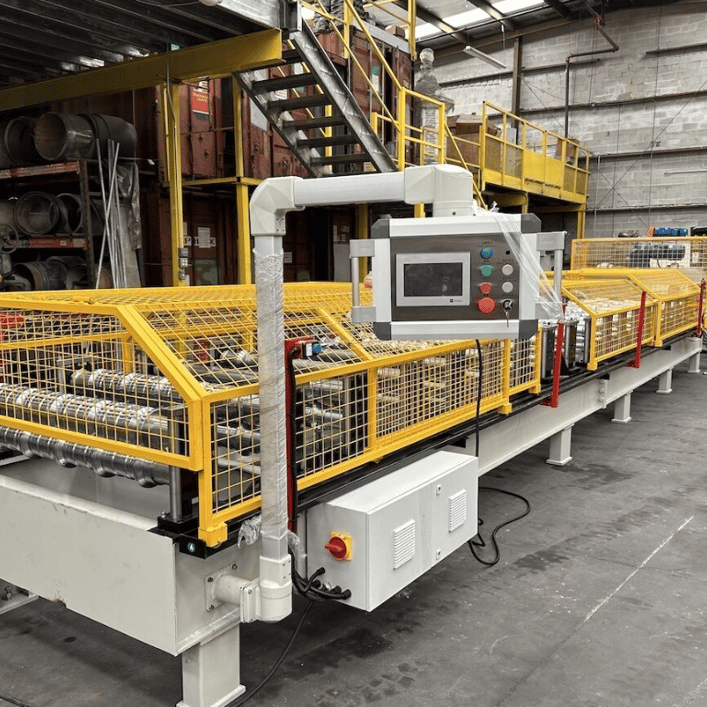

Control System

• PLC System: Siemens or Mitsubishi for automation and accuracy.
• Operation Mode: Touchscreen with user-friendly interface.
• Precision: ±0.5mm for cutting length and profile dimensions.

Production Capacity

• Speed: 10–15m/min (standard); up to 25m/min with servo motor upgrades.
• Panel Length: Fully adjustable, based on customer needs.
• Profile Options: Customizable for standing seam, corrugated, or ribbed panels.

Safety Features

• Enclosed safety guards for operator protection.
• Emergency stop buttons.
• Overload protection system.

Question and Answer Section

Q1: What is Galvalume steel, and why is it used for roofing?
A: Galvalume steel is a zinc-aluminum coated material known for its superior corrosion resistance and heat reflectivity. It is ideal for roofing because it withstands harsh weather conditions, resists rust, and provides energy efficiency.

Q2: Can the machine be customized for different roofing profiles?
A: Yes, the Galvalume metal roof roll forming machine can be customized to produce various profiles, including standing seam, ribbed, and corrugated panels.

Q3: Is the machine compatible with USA power standards?
A: Absolutely. The machine can be configured to work with the USA's 240V/60Hz or 480V/60Hz power supply standards.

Q4: What is the typical production speed?
A: The standard production speed is 10–15m/min. However, with servo motor and advanced PLC upgrades, the speed can reach up to 25m/min.

Q5: How long does it take to install the machine?
A: Installation typically takes 5–7 days, depending on the complexity of the setup and the availability of facilities at the installation site.

Q6: What maintenance does the machine require?
A: Regular maintenance includes cleaning the rollers, lubricating moving parts, inspecting the PLC system, and ensuring hydraulic oil levels are adequate. Periodic checks should also be done on electrical components.

Q7: Is technical support available in the USA?
A: Yes, many manufacturers and distributors provide technical support, including installation guidance, training, and after-sales service in the USA.
