Galvanized Roll Forming Machine in Brazil
- Condition
- New
- Supplier
- Roll Forming Machines Brazil
- Country
- Brazil
- Category
- Listing ID
- 9450
Request a Quote
To express an interest in this machine please submit the form below.

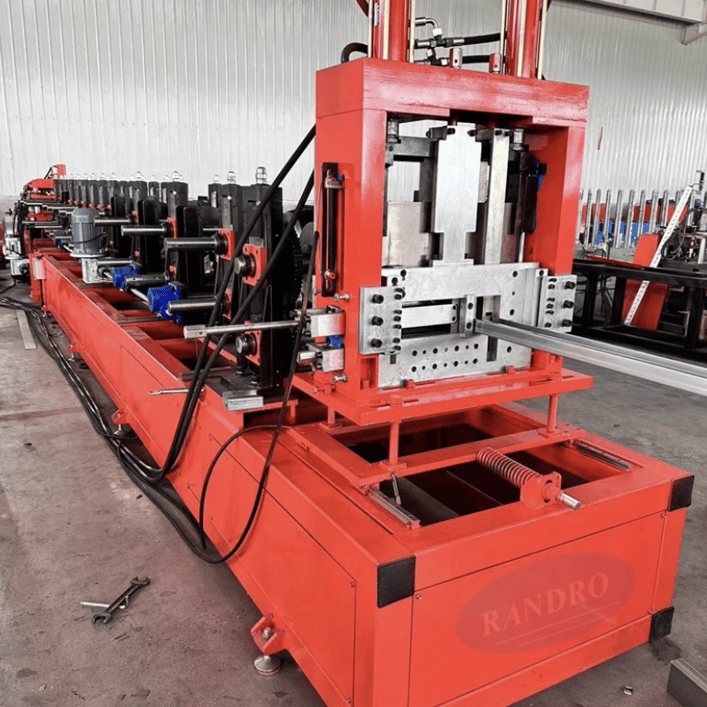

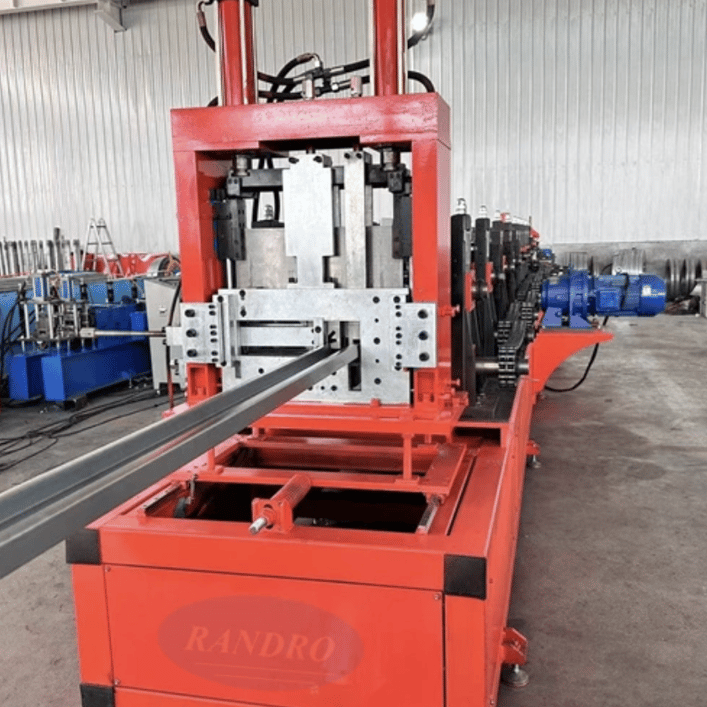

Galvanized Cold Rolled Steel CZ Profile Steel Channels Z Shape Purlin Roll Forming Machine
| Part details | Item name | C & Z Purlin Roll Forming MachineCZ Shape Roll Forming MachineC and Z Size Interchangable Purlin Roll Forming Machine |
| Material | Row material | Galvanized,Steel etc |
| Size | 80-305mm | |
| Thickness | 1-3mm | |
| Machine | Roller material | Bearing steel heat treatment |
| Shaft material | Bearing steel heat treatment | |
| Shaft diameter | 80mm | |
| Rack midplane | Cast iron archway-50mm | |
| Color | Customized | |
| Working speed | 1-15m/min | |
| Power | Driving way | Double row chain/Gear Box drive |
| Main power | 15KW | |
| Pump power | 7.5KW | |
| Inverter | 17.5KW | |
| Voltage | 380V/50Hz 3P/Customized | |
| Cutter | Material | Cr12 |
| Operate | Hydraulic cutting | |
| Control system | PLC brand | Delta |
| Screen | Touchable screen | |
| Language | Chinese/English/Customized | |
| Leveling part | Feeding | Guide shaft and guide wheel |
| Leveing | Two rows of rollers in the upper, three rows of rollers in the down, two conveyors | |
| Punching system | Size | Customized |
| Decoiler | Operation | Manual/electric/hydraulic |
| Weight capicatity | 5T/8T/10T | |
| Receiving table | Operation | Manual/electric |
| Length | 3m |
