Jinbolida Automated Pallet Storage – Gantry Robot Palletising and Storage for Production Line Ends

The Jinbolida Automated Pallet Storage system is a gantry (truss) robot unit that automatically picks finished parts from the end of a production line or conveyor and stacks them neatly into high-density storage racks. A rigid gantry robot runs on precision linear guides, using custom end tooling (grippers, vacuum cups or purpose-made brackets) to handle profiles, pipes and panels, following optimised stacking patterns in time with the line's output. It replaces heavy, repetitive manual handling, saves floor space with vertical storage, handles mixed part sizes, and can link to factory MES and WMS systems for real-time inventory tracking.

How It Works

• Finished parts arrive at the line-end pick-up point or conveyor
• The gantry robot travels along its track and grips each part with custom tooling
• Parts are stacked in the programmed pattern into assigned rack locations
• Stacking keeps pace with the upstream production line
• Inventory data can be passed to MES or WMS systems

Key Features

• High-rigidity gantry (truss) robot on precision linear guides
• Custom end tooling: mechanical grippers, vacuum cups or purpose-made brackets
• Modular, high-density vertical storage racks
• Automatic picking, transfer and stacking, synchronised with the production line
• Programmable stacking patterns and storage locations
• Mixed storage of different part sizes for small-batch, multi-product production
• Designed for continuous operation
• Integration with factory MES and WMS systems (to be confirmed)

Key Benefits

• Lower labour costs: Replaces heavy, repetitive manual handling and stacking
• Safer: Reduces the risk of lifting and handling injuries
• Space saving: Vertical rack storage makes better use of floor space
• Fewer errors: Consistent, programmed stacking with no mix-ups
• Traceability: Real-time inventory data when connected to MES or WMS

Applications

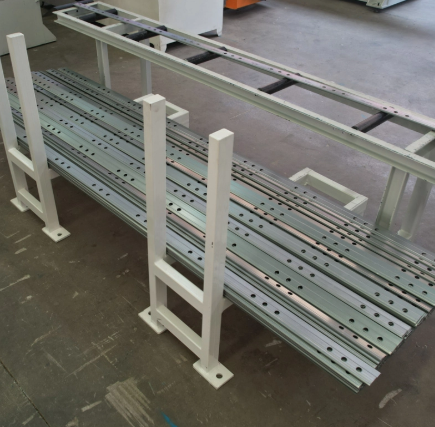

• C and Z purlins, solar brackets and roll formed profiles
• Pipes and tubes
• Aluminium profiles and colour-coated steel panels
• Stamped automotive body and chassis parts
• Metal housings, brackets and panels for appliances and furniture
• Front-end loading for automated storage and retrieval systems (AS/RS)

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China
• Configuration: Custom-built to the customer's parts, line and factory layout

Frequently Asked Questions

• What parts can it handle? Profiles, pipes, plates and panels, using grippers, vacuum cups or custom brackets to suit each part.
• Does it keep up with the production line? Yes. It's synchronised with the upstream line's output.
• Can it store different part sizes together? Yes. Storage locations and stacking patterns are programmable for mixed production.
• Can it connect to our factory systems? It's designed to link with MES and WMS systems. Ask Jinbolida about compatibility with your software.
• What should I send for a quotation? Part types, dimensions and weights, production rate, stacking requirements, available floor space and height, and any MES or WMS systems you use.
