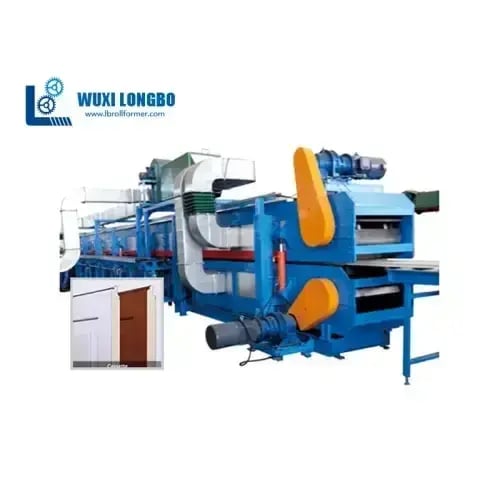

Garage Sectional Door Panel Series Roll Forming Machines in Wuxi, China

Facing layersmaterial: steel

Thickness to be specified

Panel type:Garage door panel

Dimensions of the final product

widthmin: 400mm

max: 600mm

Thicknessmin: 40mm

max: 60mm

Double belt length: 24m

Plant speed: max.10m/min.

min.2, 5m/min

Typical production range 4-6m/min

(Depending on foam system and cutting time)

Working height: 1.300mm

Height of production building:approx. 6m

Electrical Control System:

Temperature of production building: 15 - 35°C

Operating voltage: 380V

Operating frequency: 50Hz

control voltage: 220V

valve voltage: 24V

Signal voltage: 24V

PLC brand: Delta
