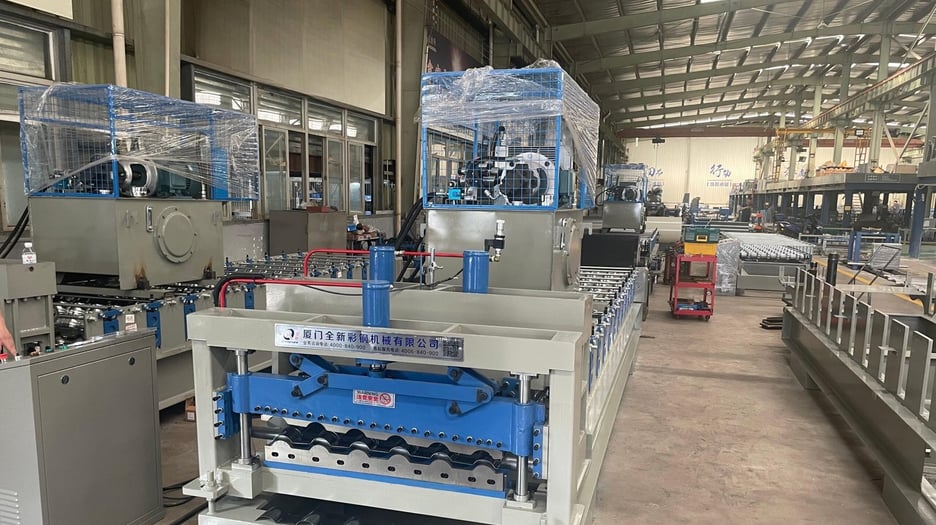

Glazed Tile Roll Forming Machine | Beenew, Xiamen, China

Beenew's Glazed Tile Roll Forming Machine produces colour steel roof sheets shaped like traditional glazed clay tiles. The steel version is lighter, thinner and more durable than clay, which suits villas, factories and warehouses.

Forming runs at 3.6 m/min or more with a 240 mm step. A hand-operated pre-shear and a hydraulic post-shear cut the sheets, under PLC control with ±2 mm length accuracy.

Key Features

• Traditional glazed tile appearance in colour steel
• 45# steel rollers, hard chrome plated, brushed and polished
• Hand pre-shear and hydraulic post-shear
• Heat-treated Cr12 cutter

Technical Specifications

• Driving motor: 5.5 kW
• Forming stations: 13–15
• Step length: 240 mm
• Forming speed: 3.6 m/min or more
• Rollers: 45# steel, hard chrome
• Shafts: 45# steel, 75 mm
• Pump motor: 15 kW
• Frame: Welded wall
• Cutting: Hydraulic, Cr12, ±2 mm
• Control: PLC; Siemens, Delta, Omron or Schneider electrics
• Power supply: 380 V/50 Hz/3-phase or to order

Applications

• Villa and house roofs
• Factories and warehouses
• Replacing clay tiles with lighter steel

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• What is the step length? 240 mm.
• How fast is it? 3.6 m/min or more.
• How is it cut? A hand pre-shear and a hydraulic post-shear.
• What should I send for a quotation? Your glazed tile profile drawing, material and thickness, coil width and output target.
