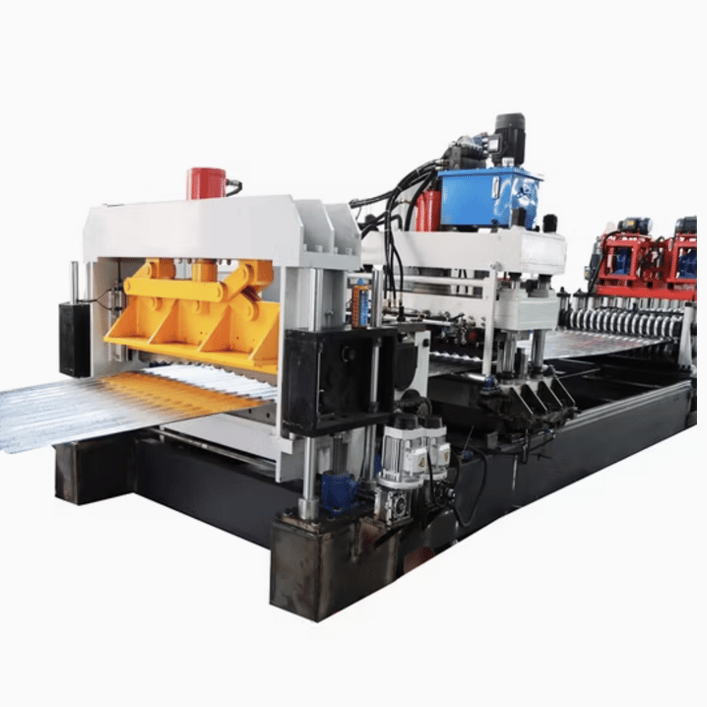

Grain Silo Roll Forming Machine in the USA

Grain silo roll forming machines are essential in manufacturing metal panels and components used in constructing grain storage silos. These machines streamline the production process, ensuring consistent quality and efficiency. They are widely used by agricultural and industrial sectors, particularly in regions with large-scale farming and grain storage operations, like the USA.

Machine Description

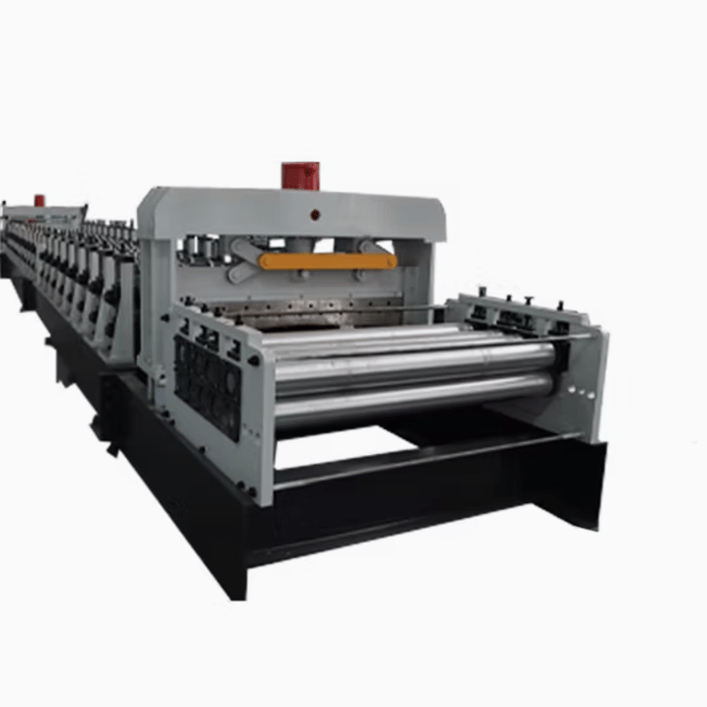

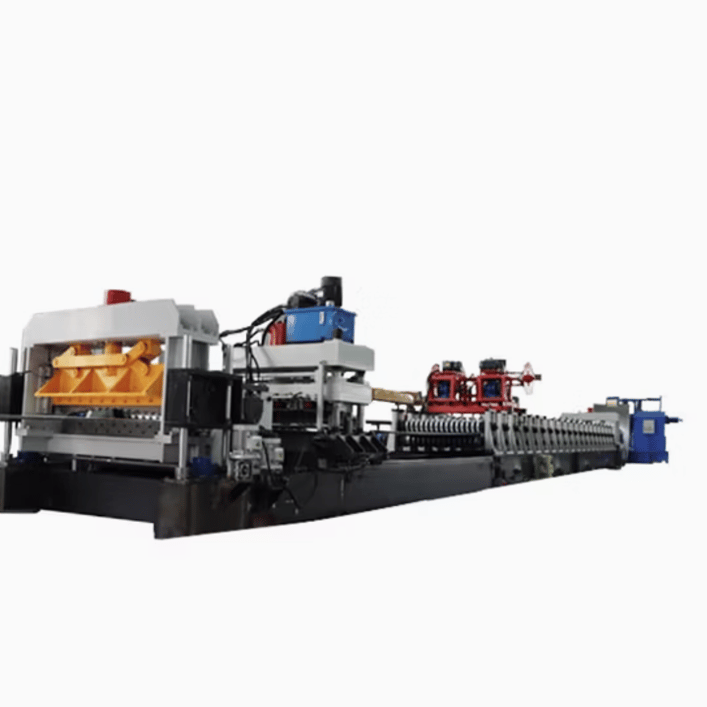

A grain silo roll forming machine is engineered to produce corrugated or flat metal sheets that make up the walls of grain silos. It is equipped with advanced technology to shape and cut metal coils into precise profiles required for grain silo construction.

These machines are designed for high output and reliability, featuring automatic operations for speed and accuracy. They accommodate a wide range of materials, including galvanized steel, aluminum, and stainless steel, commonly used for grain silos due to their durability and resistance to environmental factors.

Machine Specifications

1. Roller Materials:
   • High-grade chromium steel for durability and precision.
   • Hardened rollers to ensure long service life.
2. Profile Type:
   • Corrugated profiles (customizable sizes and shapes).
   • Flat panels with reinforcement ridges.
3. Material Thickness:
   • Typically supports 0.8 mm to 4.0 mm thick metal sheets.
   • Material types: galvanized steel, aluminum, and stainless steel.
4. Frame Size:
   • Heavy-duty steel structure with a robust base to handle high loads and vibrations.
5. Motors:
   • Main motor: 7.5 kW to 15 kW (customizable based on capacity).
   • Servo motors for precise feeding and cutting.
6. Cutting System:
   • Hydraulic cutting with high-precision blades.
   • Capable of cutting sheets at various lengths based on grain silo requirements.
7. PLC System:
   • User-friendly interface with programmable logic controls.
   • Remote access capability for troubleshooting and monitoring.
8. Machine Speed:
   • Typical production speed ranges from 10 m/min to 30 m/min.
9. Safety Features:
   • Emergency stop buttons.
   • Safety guards and enclosures to protect operators.
10. Optional Extras:
    • Automatic stackers.
    • Coil handling systems, including uncoilers and recoilers.
    • Pre-punching systems for creating bolt holes.

Frequently Asked Questions

1. What materials can the machine process?

The grain silo roll forming machine is compatible with galvanized steel, aluminum, and stainless steel, typically in thicknesses ranging from 0.8 mm to 4.0 mm. These materials are corrosion-resistant and ideal for grain storage applications.

2. How fast can the machine produce panels?

The machine operates at speeds of 10 m/min to 30 m/min, depending on the material type and profile complexity. Higher speeds may be achievable with customization.

3. Can the machine produce customized profiles?

Yes, the machine can be customized to produce specific corrugated or flat profiles, including profiles with unique reinforcement patterns for added strength.

4. What is the power requirement for this machine?

The power requirements vary depending on the machine size and capacity. Typically, it requires a 380V/50Hz power supply, but this can be modified to suit different regional standards.

5. Is training provided with the machine?

Most manufacturers offer installation support and operator training to ensure seamless integration into production processes.

6. What maintenance does the machine require?

Regular maintenance includes:

• Lubrication of moving parts.
• Periodic inspection of rollers and cutting blades.
• Cleaning and dust removal from electrical components.
• Checking hydraulic systems for leaks.

7. How does the machine ensure accuracy?

The PLC system and servo motors ensure precise feeding and cutting of metal sheets. Hydraulic cutting blades provide clean cuts with minimal material waste.

8. What is the average price range for this machine in the USA?

The cost varies based on customization, size, and additional features. Typically, a grain silo roll forming machine in the USA ranges from $50,000 to $250,000.

9. Are spare parts readily available?

Yes, most suppliers in the USA maintain a stock of spare parts or can quickly source them to minimize downtime.

10. What industries use this machine?

Grain silo roll forming machines are primarily used in the agricultural sector but are also employed in industrial storage applications for materials such as cement, chemicals, and other bulk commodities.
